TP-Link Archer TX3000E — Desktop Build Compatibility, Bluetooth, OS Support

TP-Link Archer TX3000E — Desktop Build Compatibility

The Archer TX3000E adds WiFi 6 (AX3000-class) and Bluetooth 5.3 to a desktop PC via a PCIe slot. Per TP-Link's product specifications, the card delivers up to 2,402 Mbps on the 5 GHz band, up to 574 Mbps on the 2.4 GHz band, and includes a heat-sink-cooled Intel WiFi 6 chipset. Compatibility breaks down by motherboard slot, OS support, and antenna placement.

Motherboard Slot Compatibility

OS Compatibility

• Windows 11 — Native driver support via Windows Update; TP-Link's own driver bundle provides the latest version
• Windows 10 (64-bit, version 1903+) — Full driver support per TP-Link's compatibility documentation
• Windows 7 / 8 / older — Not supported; WiFi 6 protocol stack requires Windows 10 or later
• Linux — Works with kernel 5.10+ which includes the Intel WiFi driver natively. Most current Ubuntu, Fedora, Arch, and other modern distributions detect and use the card without configuration
• macOS — NOT officially supported. Hackintosh users may find third-party kexts but this is not a sanctioned use case

Bluetooth 5.3 Integration

The Archer TX3000E includes Bluetooth 5.3 alongside WiFi 6. Important integration notes:

• Internal USB header connection required — Bluetooth runs over USB 2.0 internally; the card includes a cable from the rear bracket to a motherboard 9-pin USB 2.0 header. Without this cable connected, WiFi works but Bluetooth does not
• Bluetooth 5.3 backward-compatible with Bluetooth 5.0 / 4.x devices (mice, keyboards, headphones, controllers, smart-home devices)
• Replaces any existing motherboard Bluetooth — only one Bluetooth radio can be active in the OS at a time; if the motherboard has built-in Bluetooth, disable it in BIOS to avoid conflict

External Antenna Placement

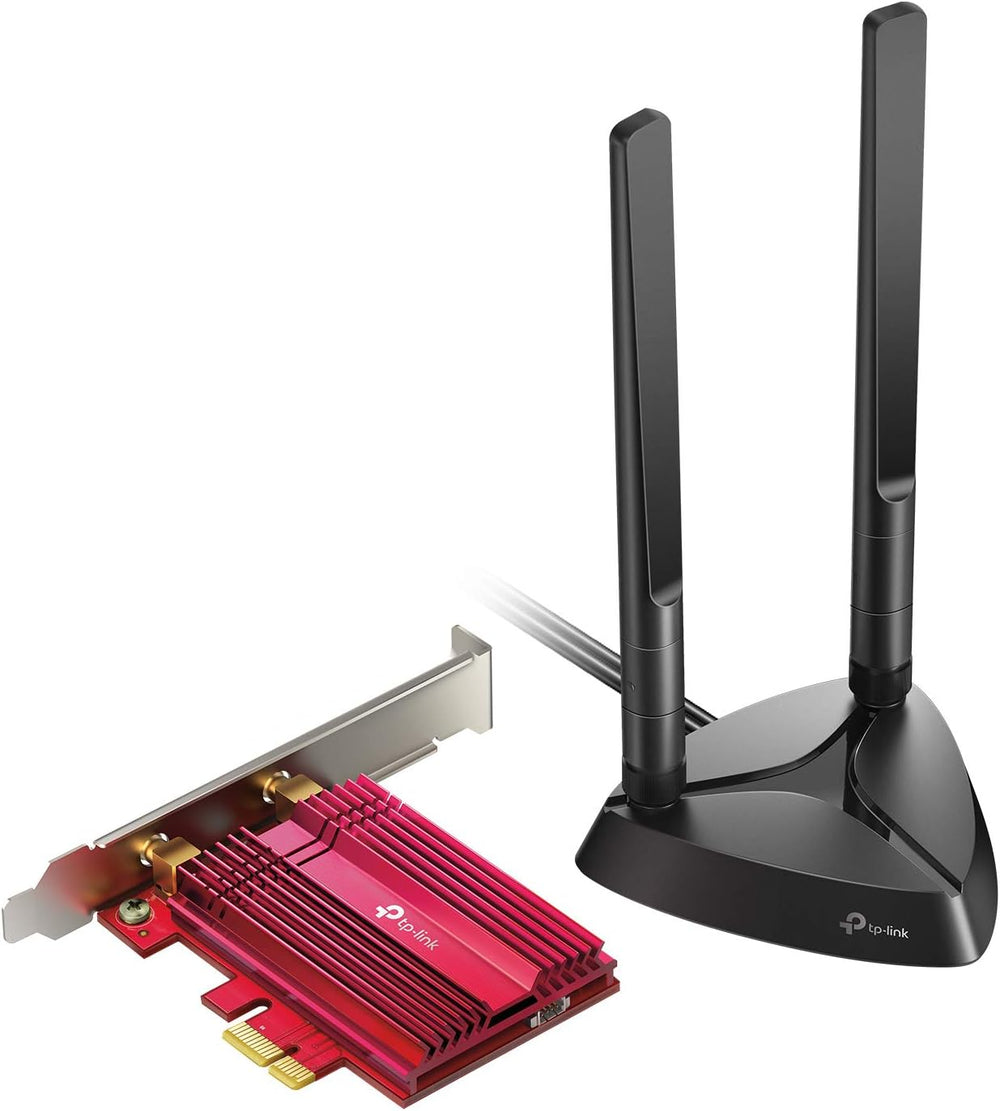

The card ships with two magnetic-base external antennas connected by SMA cables. Placement matters for real-world throughput:

• The supplied magnetic base lets the antennas mount above the PC case rather than at slot height (the slot is typically near the floor for most builds)
• Antennas mounted at desk height typically deliver 20-40% better signal than antennas mounted at floor level near the slot bracket
• Avoid placing antennas immediately behind or under a CRT-class metal object (steel case, monitor stand, file cabinet)
• Aim antennas perpendicular to the direction of the router for best linear-polarization match

Where the TX3000E Fits in the Desktop WiFi Card Lineup

• TP-Link Archer TX20E — Entry tier, AX1800-class, single-stream / two-stream MIMO
• TP-Link Archer TX3000E (this card) — Mid-range, AX3000-class, two-stream MIMO with Bluetooth 5.3
• TP-Link Archer TX55E / TXE75E — Higher-tier; TX55E adds WiFi 6E (6 GHz band)

The TX3000E is a sensible pick for buyers whose router is WiFi 6 (not 6E) and who want clean Bluetooth 5.3 alongside WiFi. If the router supports the 6 GHz band, the TXE75E is the better-matched upgrade.

What This Card Cannot Do

• WiFi 6E (6 GHz band) — that requires the TX55E, TXE75E, or similar 6E-rated card
• WiFi 7 — not supported; current WiFi 7 desktop cards are a different product class
• 2.5 Gbps wired Ethernet — this is a wireless card; wired upgrades need a separate 2.5GbE NIC
• Mesh extension — this is a client adapter, not a router or mesh node

Sources & Citations

1. TP-Link, "Archer TX3000E PCIe WiFi 6 + Bluetooth 5.3 Adapter product page," tp-link.com (accessed 2026-05-16)
2. Wi-Fi Alliance, "Wi-Fi CERTIFIED 6," wi-fi.org (accessed 2026-05-16)
3. Bluetooth SIG, "Bluetooth Core Specification 5.3 announcement," bluetooth.com (accessed 2026-05-16)

Last verified: 2026-05-16
