TP-Link Archer TX3000E — Desktop Build Compatibility

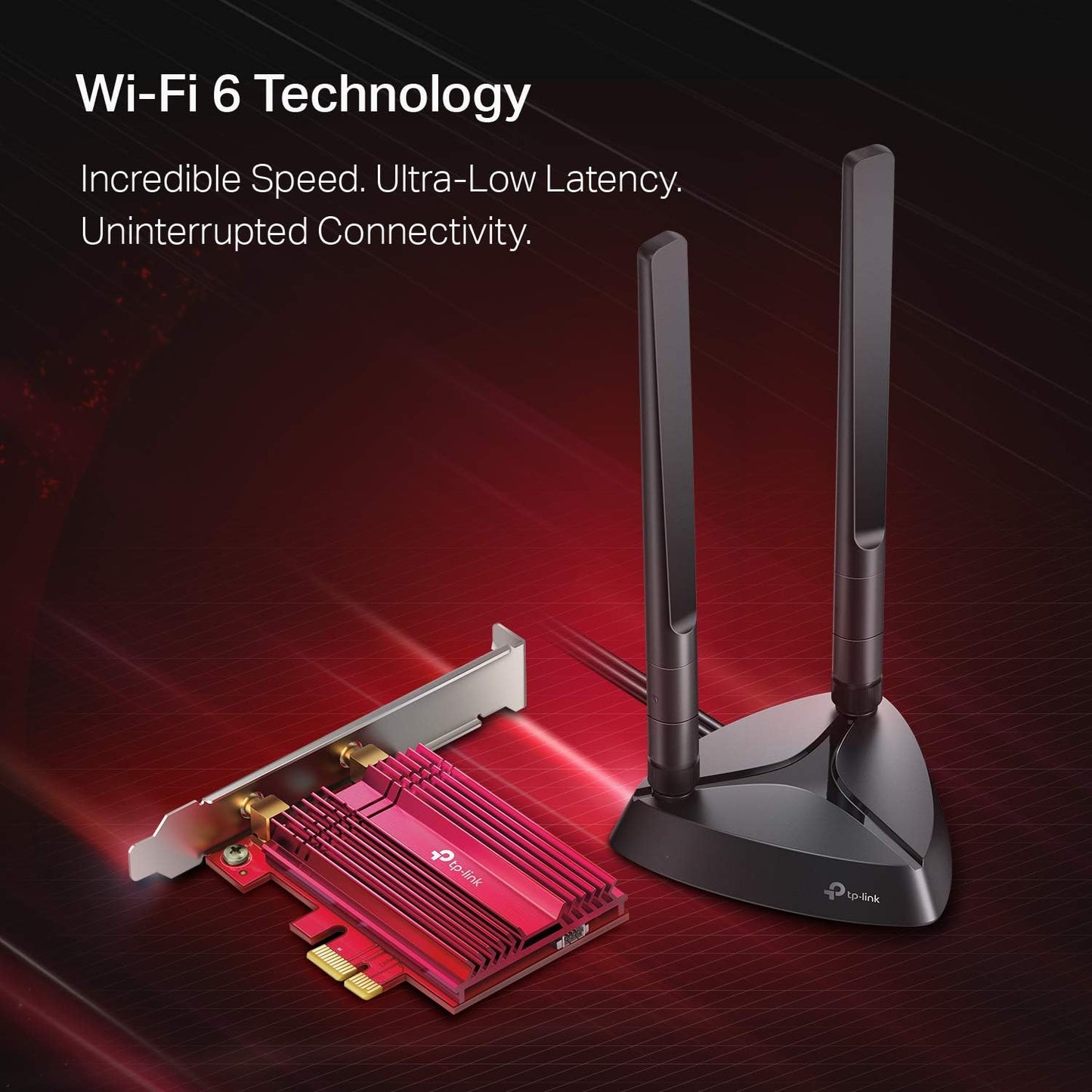

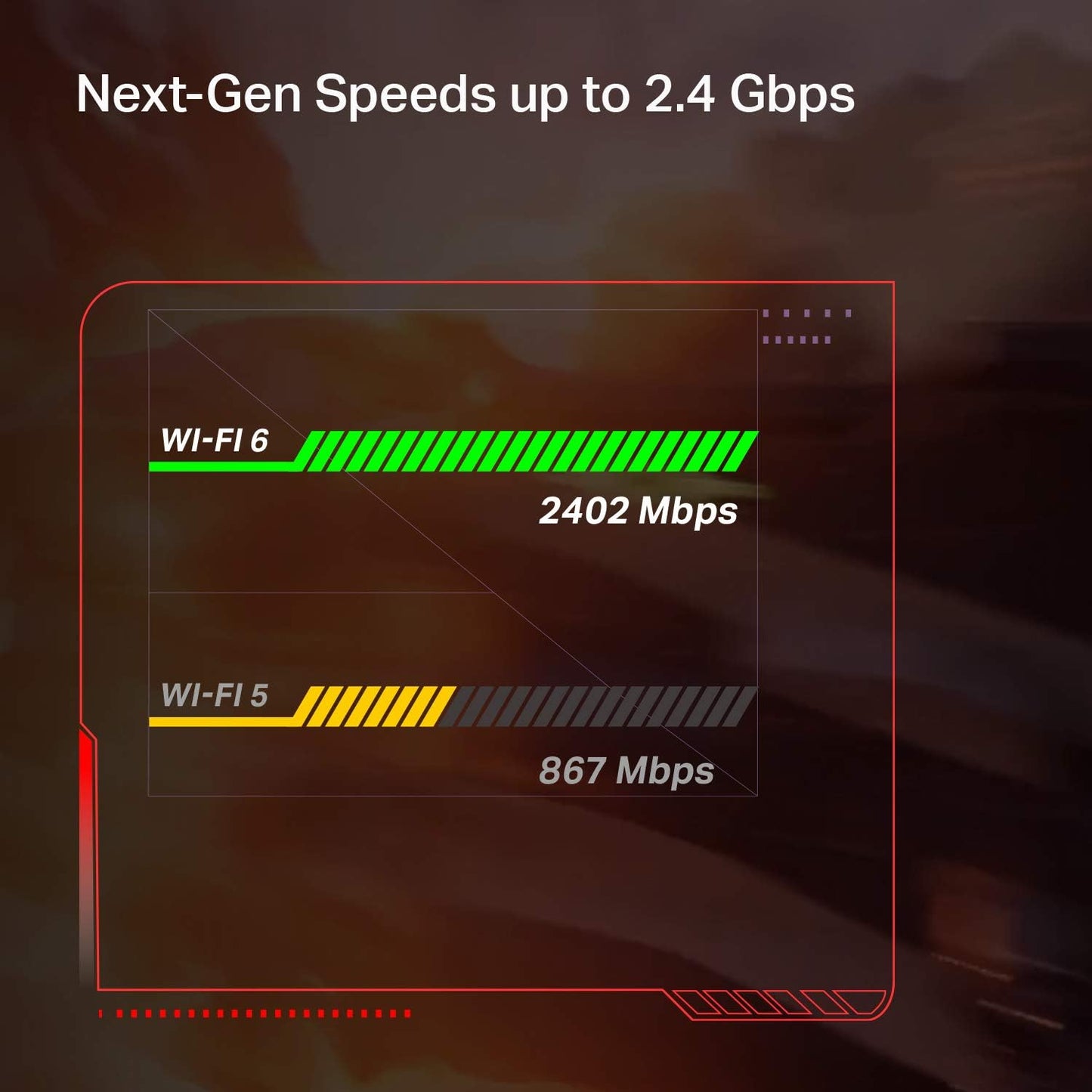

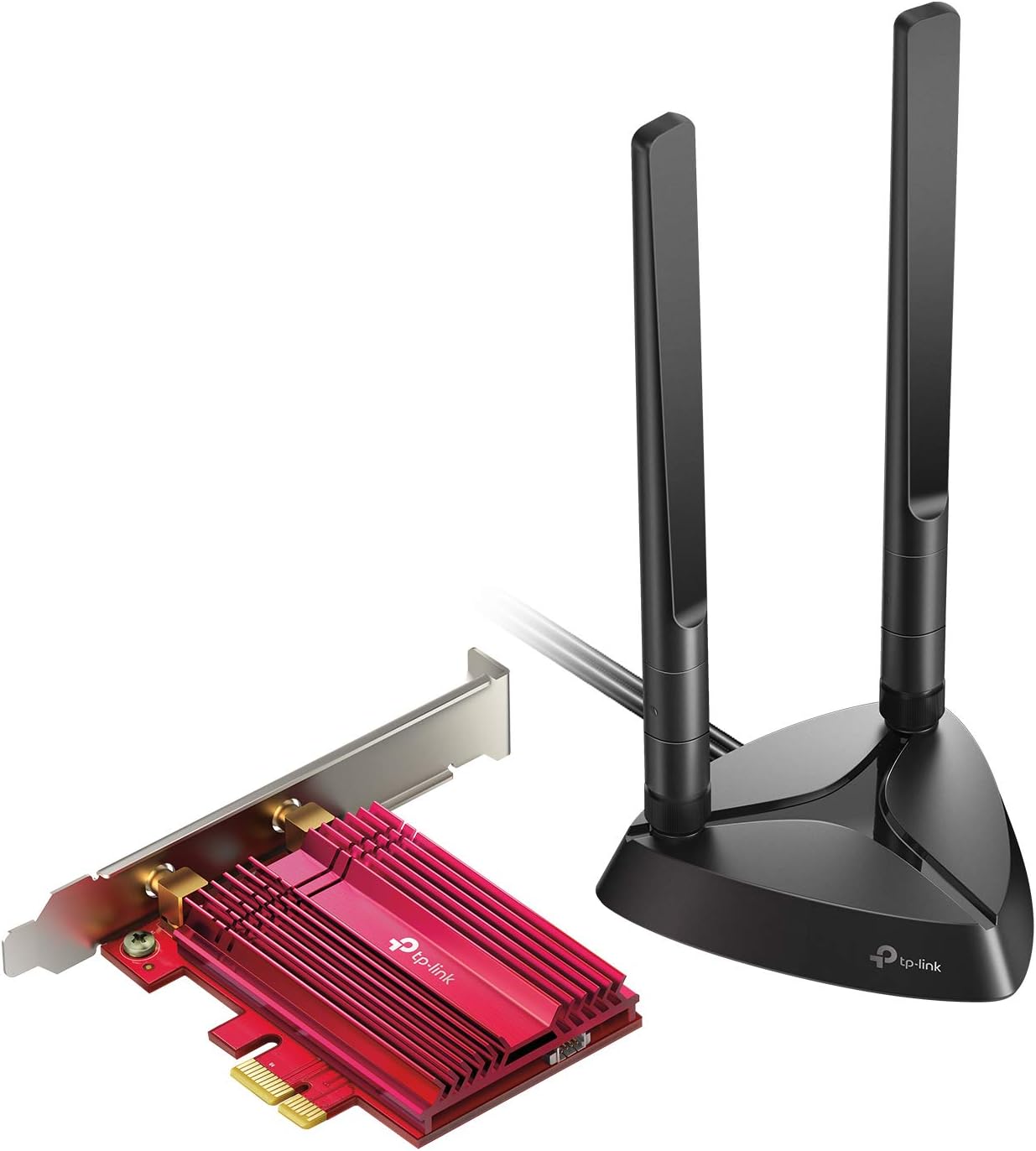

The Archer TX3000E adds WiFi 6 (AX3000-class) and Bluetooth 5.3 to a desktop PC via a PCIe slot. Per TP-Link's product specifications, the card delivers up to 2,402 Mbps on the 5 GHz band, up to 574 Mbps on the 2.4 GHz band, and includes a heat-sink-cooled Intel WiFi 6 chipset. Compatibility breaks down by motherboard slot, OS support, and antenna placement.
Motherboard Slot Compatibility
| PCIe slot type | Compatible | Notes |
|---|---|---|
| PCIe x1 slot | Yes | The card is physically PCIe x1; native fit |
| PCIe x4 slot | Yes | Plugs in and works at x1 link speed |
| PCIe x8 / x16 slot | Yes | Mechanically fits and works at x1 link speed; not recommended if a GPU needs the slot |
| M.2 E-key slot | No | Different form factor entirely; use an M.2 E-key WiFi 6 card instead |
| Mini PCIe (older systems) | No | Different form factor; this card is full-size PCIe |
OS Compatibility
- Windows 11 — Native driver support via Windows Update; TP-Link's own driver bundle provides the latest version
- Windows 10 (64-bit, version 1903+) — Full driver support per TP-Link's compatibility documentation
- Windows 7 / 8 / older — Not supported; WiFi 6 protocol stack requires Windows 10 or later
- Linux — Works with kernel 5.10+ which includes the Intel WiFi driver natively. Most current Ubuntu, Fedora, Arch, and other modern distributions detect and use the card without configuration
- macOS — NOT officially supported. Hackintosh users may find third-party kexts but this is not a sanctioned use case
Bluetooth 5.3 Integration
The Archer TX3000E includes Bluetooth 5.3 alongside WiFi 6. Important integration notes:
- Internal USB header connection required — Bluetooth runs over USB 2.0 internally; the card includes a cable from the rear bracket to a motherboard 9-pin USB 2.0 header. Without this cable connected, WiFi works but Bluetooth does not
- Bluetooth 5.3 backward-compatible with Bluetooth 5.0 / 4.x devices (mice, keyboards, headphones, controllers, smart-home devices)
- Replaces any existing motherboard Bluetooth — only one Bluetooth radio can be active in the OS at a time; if the motherboard has built-in Bluetooth, disable it in BIOS to avoid conflict
External Antenna Placement
The card ships with two magnetic-base external antennas connected by SMA cables. Placement matters for real-world throughput:
- The supplied magnetic base lets the antennas mount above the PC case rather than at slot height (the slot is typically near the floor for most builds)
- Antennas mounted at desk height typically deliver 20-40% better signal than antennas mounted at floor level near the slot bracket
- Avoid placing antennas immediately behind or under a CRT-class metal object (steel case, monitor stand, file cabinet)
- Aim antennas perpendicular to the direction of the router for best linear-polarization match
Where the TX3000E Fits in the Desktop WiFi Card Lineup
- TP-Link Archer TX20E — Entry tier, AX1800-class, single-stream / two-stream MIMO
- TP-Link Archer TX3000E (this card) — Mid-range, AX3000-class, two-stream MIMO with Bluetooth 5.3
- TP-Link Archer TX55E / TXE75E — Higher-tier; TX55E adds WiFi 6E (6 GHz band)
The TX3000E is a sensible pick for buyers whose router is WiFi 6 (not 6E) and who want clean Bluetooth 5.3 alongside WiFi. If the router supports the 6 GHz band, the TXE75E is the better-matched upgrade.
What This Card Cannot Do
- WiFi 6E (6 GHz band) — that requires the TX55E, TXE75E, or similar 6E-rated card
- WiFi 7 — not supported; current WiFi 7 desktop cards are a different product class
- 2.5 Gbps wired Ethernet — this is a wireless card; wired upgrades need a separate 2.5GbE NIC
- Mesh extension — this is a client adapter, not a router or mesh node
Sources & Citations
- TP-Link, "Archer TX3000E PCIe WiFi 6 + Bluetooth 5.3 Adapter product page," tp-link.com (accessed 2026-05-16)
- Wi-Fi Alliance, "Wi-Fi CERTIFIED 6," wi-fi.org (accessed 2026-05-16)
- Bluetooth SIG, "Bluetooth Core Specification 5.3 announcement," bluetooth.com (accessed 2026-05-16)
Last verified: 2026-05-16
