Audio impedance is one of the most misunderstood concepts in studio engineering, yet it fundamentally affects signal quality, power transfer, and system compatibility. Understanding impedance relationships between microphones, instruments, interfaces, and monitoring equipment is essential for building professional audio systems that deliver optimal performance.

How We Choose Our Picks

Studio Supplies is an editorial affiliate publication. We do not operate a hands-on testing lab. Our recommendations are based on:

  • Aggregated test results from independent publications including RTINGS, Notebookcheck, Tom's Hardware, DPReview, and Sound on Sound
  • Verified manufacturer specifications
  • Long-term owner sentiment from specialist communities (cited inline)
  • Editorial judgment on price, availability, and ecosystem fit

See full methodology at /pages/methodology. All cited sources are listed at the end of this article.

What Is Audio Impedance?

Impedance measures the opposition to electrical current flow in an AC circuit, expressed in ohms (Ω). Unlike simple resistance, impedance varies with frequency, which is why audio impedance specifications often include frequency-dependent measurements (Rane Note 110, "Sound System Interconnection").

In audio systems, impedance affects:

  • Signal level and quality between connected devices
  • Power transfer efficiency in amplification systems
  • Frequency response characteristics
  • Susceptibility to noise and interference

The relationship between source impedance (output) and load impedance (input) determines how efficiently signals transfer between devices. Modern professional audio practice favors "voltage matching" rather than the older "impedance matching" rule, with the load impedance typically much higher than the source (Sound on Sound, "What's the difference between impedance matching and bridging?").

High vs. Low Impedance: Professional Standards

Professional audio systems typically operate with low source impedance outputs (under 600 ohms) feeding higher-impedance inputs, while many consumer connections use higher source impedances. This distinction affects everything from cable length limits to noise rejection (Rane Note 110).

Low Impedance Advantages:

High Impedance Characteristics:

  • Higher output voltages from instruments like electric guitars with passive pickups
  • More sensitive to cable capacitance and length, which can roll off high frequencies
  • Typically uses 1/4" TS or TRS connections
  • Generally limited to shorter cable runs for optimal performance

Microphone Impedance Considerations

Microphone impedance directly affects preamp compatibility and signal quality. Most professional microphones have a rated output impedance between roughly 150 and 300 ohms, designed to work with preamp input impedances that are several times higher (Shure technical publication, "Microphone Techniques for Live Sound Reinforcement").

The accepted rule for microphone-to-preamp connections is "bridging": the preamp input impedance is typically 5 to 10 times higher than the microphone's rated output impedance. This ensures efficient voltage transfer and prevents loading effects that could alter the microphone's frequency response and output level (Sound on Sound, "Impedance matching and bridging").

Dynamic microphones typically have lower rated impedance than condensers when measured passively, but most modern condensers include impedance-conversion electronics so they present a low-impedance output to the preamp (Shure).

Audio Interface Input and Output Impedance

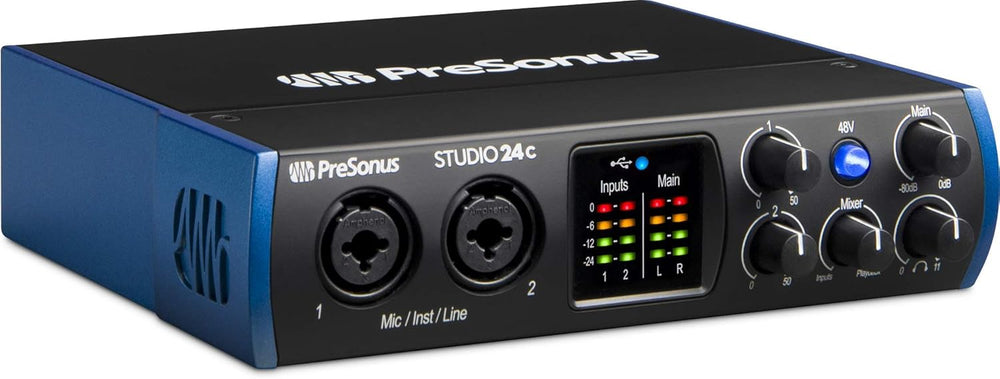

Professional audio interfaces like the PreSonus Studio 24c-cr USB-C Audio Interface must accommodate various source impedances while providing appropriate load impedances for connected equipment.

Interface specifications typically include:

  • Mic preamp input impedance: typically a few kΩ to accommodate professional dynamic and condenser mics
  • Line input impedance: typically 10kΩ or higher to accommodate various line-level sources
  • Instrument (Hi-Z) input impedance: typically around 1 MΩ for electric guitars and basses with passive pickups (Sound on Sound, "Do I need a DI box?")
  • Output impedance: low (typically well under 100Ω) for driving various downstream loads

High-end interfaces like the Avid 9900-58670-00 HD I/O 16x16 Analog Audio Interface provide multiple input types with different impedance characteristics, allowing engineers to match connections to specific sources.

Monitor and Headphone Impedance Matching

Studio monitors and headphones present different impedance considerations. Active monitors typically have high input impedance (10kΩ+) to minimize loading on the upstream interface or console outputs.

Headphone impedance varies dramatically across the market:

For headphones to deliver their rated performance, the amplifier needs to supply enough voltage and current for the load. Underpowered amplification can result in reduced level and compromised dynamics.

Cable Impedance and Transmission Line Effects

Audio cables themselves have a characteristic impedance — typically 75Ω or 110Ω for digital audio cables (S/PDIF coax and AES/EBU respectively), per the relevant standards (AES standards catalog). For typical analog audio runs in studios, cable characteristic impedance rarely affects the audio signal in a meaningful way.

However, impedance mismatches can contribute to:

  • Reflections in long digital cable runs that don't terminate at the correct impedance
  • Subtle frequency response variations on very long analog runs, particularly with high source impedances
  • Increased susceptibility to interference on unbalanced lines

Professional installation cables like the Mogami Gold DB25-TRS 10 Analog Audio Interface Cable are built to consistent electrical specifications to minimize these effects in complex routing.

Ground Loops and Impedance

NEVER LIFT GROUND: Persistent ground hum often indicates a real electrical issue. Do not use 3-prong-to-2-prong adapters or "ground lift" plugs to silence hum — defeating equipment grounding is dangerous and a code violation in most jurisdictions. Safer alternatives include balanced audio connections, isolation transformers (e.g. Jensen Iso-Max, Ebtech Hum X), and consolidating audio gear on shared circuits. If hum persists after isolating individual gear, consult a licensed electrician.

Differences in ground potential between connected devices can drive current through audio cable shields, producing the familiar 60 Hz hum. Bill Whitlock's analysis at Jensen Transformers identifies the cable shield carrying ground-potential difference current as the dominant mechanism in most studio ground-loop hum, not the audio circuit itself (Jensen Transformers AN-003, Whitlock).

Practical mitigations include:

  • Using balanced connections wherever possible to reject common-mode noise
  • Consolidating audio equipment on a single AC circuit where feasible
  • Installing audio isolation transformers at the problematic interface, never defeating safety ground (Jensen)

Practical Impedance Matching in Studio Workflows

Building a professional studio chain means understanding how source and load impedance interact at every connection. Start with your signal sources — microphones, instruments, and playback devices — and confirm that each subsequent input presents an appropriate (typically much higher) load impedance.

For example, plugging a passive electric guitar directly into a low-impedance line input typically results in level loss and a duller tone, because the pickup is loaded by an impedance close to its own. A DI box or instrument-level (Hi-Z) input provides the high input impedance the pickup expects (Sound on Sound, "Do I need a DI box?").

Similarly, connecting professional low-impedance microphones into consumer-grade inputs not designed for them can produce unfavorable signal-to-noise ratios. Matching the rated source and load impedance ranges of your gear is the simplest way to keep the signal chain transparent.

Understanding impedance allows engineers to design signal chains that preserve audio quality from source to monitor, so creative decisions are based on accurate audio reproduction rather than impedance-related artifacts.
