Understanding Phantom Power: What It Is, What Needs It, What It Can Damage

If you have ever noticed the "+48V" button on an audio interface and wondered what it actually does, you are looking at phantom power — a DC supply sent down a balanced microphone cable to power condenser microphones (and a handful of other devices). Phantom power is fundamental to studio recording, but it is also one of the most misunderstood signals in pro audio. Used correctly it is invisible. Used carelessly it can permanently damage certain microphones.

This explainer covers what phantom power is, what it does (and does not) do, which microphones need it, which can be hurt by it, and how to avoid the most common failure modes. Where the article cites a number or a damage mechanism, the source is named inline.

The Required Safety Callout

What Phantom Power Actually Is

Phantom power is a DC voltage delivered down the same balanced microphone cable that carries the audio signal. The most common variant is P48 — a nominal +48 V DC supply defined in the IEC 61938 standard. Per the standard's published tolerance, P48 sits at 48 V ±4 V (i.e., a 44–52 V acceptable window) at the source, with a current limit of 10 mA per microphone (IEC 61938 summary, Phantom power overview). Lower-voltage variants — P12 and P24 — also exist for battery-powered field equipment, and some condenser designs are specified to operate down to about 11 V on P48 supplies (per the same standard summary).

The "phantom" name comes from the way the supply is hidden in plain sight. The +48 V is applied equally to pins 2 and 3 of the XLR connector (the two signal conductors), with pin 1 acting as the return. Because both signal pins sit at the same DC potential, a balanced input that responds only to the difference between pins 2 and 3 sees no DC at all — it sees only the audio. The DC is, from the audio path's perspective, invisible. That is the trick the standard pulls off.

This is also why phantom power is only safe and only functional on a balanced XLR connection. Unbalanced connections (TS jacks, RCA, or TS-to-XLR adapters that short pin 3 to ground) defeat the symmetry the standard relies on, and can dump 48 V DC straight across the input of whatever you plug in.

Which Microphones Need Phantom Power

Condenser microphones (need it)

Condenser microphones — large-diaphragm, small-diaphragm, electret, and most tube designs — require an external supply to charge the capsule and run the internal impedance-converter circuitry. With no phantom power applied, a true condenser will produce no usable signal. (Some tube condensers run from a dedicated outboard power supply rather than P48 and ignore the interface's phantom button entirely; check the manufacturer documentation.)

Modern dynamic microphones (do not need it; generally safe)

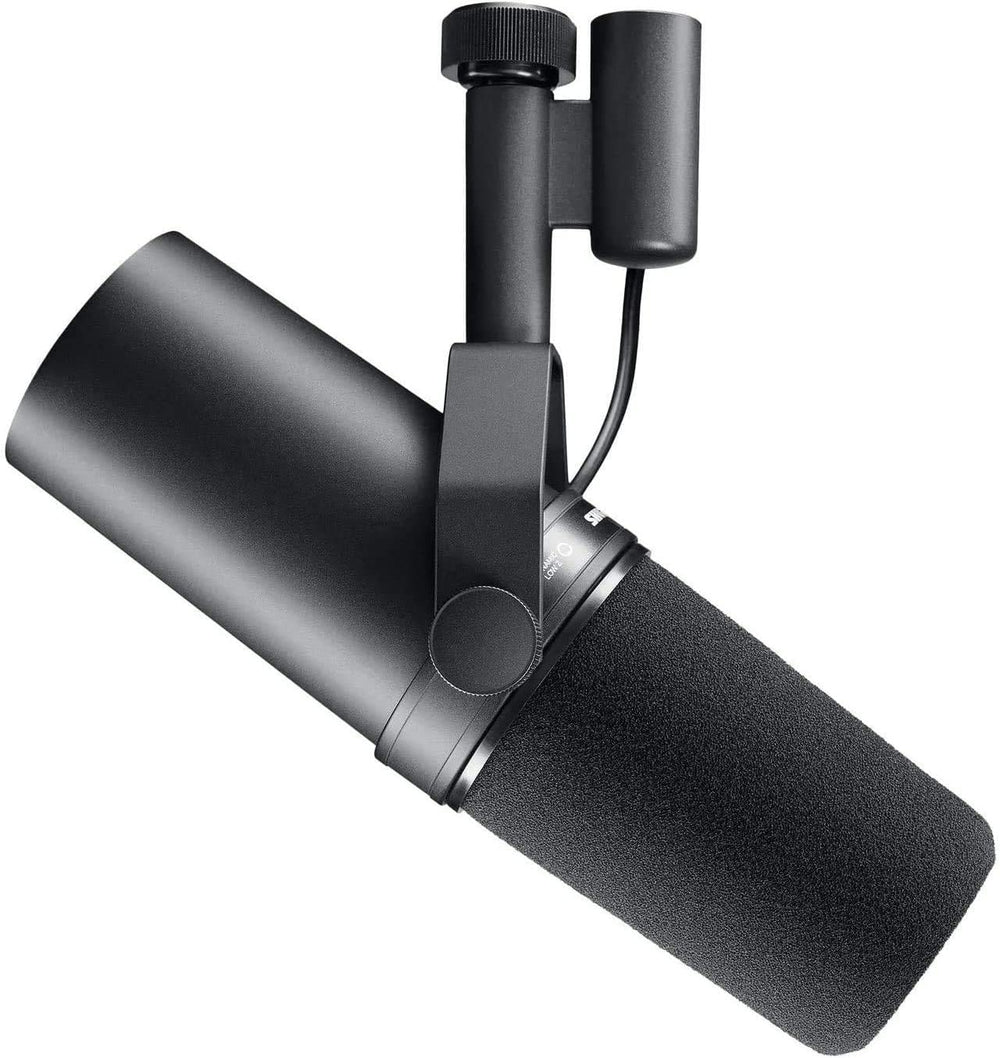

Dynamic microphones (moving-coil designs like the Shure SM57/SM58 and the Shure SM7B) generate their own signal through electromagnetic induction and need no external power. Per Sound on Sound, "all modern mics with balanced outputs terminated with XLRs, whether they be dynamics (moving-coils and ribbons) and electrostatics (condenser and electrets), are designed to accommodate phantom power, and can be plugged in quite happily with phantom power switched on, provided you are connecting XLRs, not jack plugs/sockets" (Sound on Sound, "Is it safe to apply phantom power to dynamic mics?"). The risk surface for modern dynamics is genuinely low, but it depends on properly wired balanced cables.

Ribbon microphones (special case — see safety callout above)

Ribbon microphones are the category that gives phantom power its scary reputation. The next section explains the actual failure mechanism — which is widely misunderstood, including by us in the previous version of this article.

Active ribbons (often require phantom power)

Most "active" ribbon mics — including the modern Royer R-122, R-122 MKII, and the AEA A440/A840 line — contain an internal preamp powered by P48 and require phantom power to operate. Their input stage is also designed to tolerate phantom power being on at the moment of connection. Always check the specific mic's manual: passive vs. active is the determining factor, not just "is it a ribbon."

How Phantom Power Damages Ribbon Microphones — The Correct Mechanism

The most common explanation you will read in old guides — including, until this revision, this one — is that phantom power "heats up" or "stretches" the ribbon. That description is wrong. The damage is electrical, not thermal.

The actual failure mechanism is a sudden DC current across the ribbon caused by an asymmetric voltage at the moment of connection or because of a wiring fault. Royer Labs — the most respected ribbon manufacturer in the modern market — describes the failure path this way: a properly wired ribbon mic sits behind an output transformer that blocks DC, so steady-state phantom power on a correctly wired cable is not what kills the ribbon. The danger comes from transient events — the brief AC pulse that occurs as a connector seats, or a miswired cable that puts unequal voltage on pins 2 and 3 (Royer Labs, "Ribbon Mics and Phantom Power").

Sound on Sound describes the same failure in motor/generator terms: "The initial step transient (a brief AC signal pulse) which occurs during connection will pass through the transformer and try to turn the ribbon 'generator' into a 'motor.' Essentially the mic becomes a loudspeaker (briefly) and tries to move the ribbon to its extreme position one way or the other (depending on the polarity of the transient pulse). In some cases that will stretch the ribbon, but in others it may even shred the ribbon or rip it from its mountings completely" (Sound on Sound, Hugh Robjohns response).

So the failure is mechanical destruction of the ribbon driven by an electrical impulse — not heat. The practical implications:

• Hot-patching a passive ribbon mic into a phantom-charged input is the highest-risk action. The split-second contact bounce as the connector seats can deliver exactly the asymmetric pulse that drives the ribbon to its mechanical limit. Patch bays in a phantom-on rack are particularly dangerous (per Royer).
• A miswired or shorted cable is the second high-risk failure mode. If pin 1 (ground) shorts to pin 2 or pin 3, the symmetry that hides the DC from the transformer breaks down and a damaging current can reach the ribbon (per Royer).
• Steady-state phantom power on a known-good, properly wired cable, with a connection that was made before phantom was switched on, is much lower risk for most modern passive ribbons — but Royer still recommends turning P48 off before connecting or disconnecting, because abnormal cable conditions are not always visible.

The conservative protocol used by professional ribbon owners — and the one we recommend — is the one in the safety callout at the top of this article: disable phantom power, wait approximately 60 seconds for the supply to bleed off through the input bias resistors, then make or break the connection. If you own an active ribbon (R-122, A440, etc.), follow the manufacturer's instructions instead — those mics need phantom and tolerate hot connection.

How to Enable Phantom Power on Common Gear

The interface side is straightforward:

• Audio interfaces: Most have a dedicated 48V button or switch. On many small interfaces (e.g. the Focusrite Scarlett 2i2 line, PreSonus AudioBox 96), the switch is global across both mic preamps. Larger interfaces typically provide per-channel control.
• Mixing consoles: Each mic input usually has its own +48V switch near the channel strip, sometimes labelled with a lightning bolt.
• Standalone preamps: Per-channel switches are standard.

The universal best practice — for monitor and ribbon protection alike — is: connect the mic with phantom off, then enable phantom; mute or pull down the channel/monitor first to avoid the connection thump; reverse the order to disconnect.

What Phantom Power Can and Cannot Damage

Real damage risks

• Passive ribbon microphones — via the transient/miswiring mechanism above.
• Anything connected via TS-to-XLR or other unbalanced adapters — defeats the balanced symmetry and can put 48 V across an input that does not expect it.
• Some vintage condenser, tube, and ribbon mics with non-standard wiring — particularly designs with center-tapped output transformers tied to ground, which can short the phantom supply (per Sound on Sound). Check before powering vintage gear.
• Passive DI boxes without proper phantom isolation can be damaged in some configurations.

Generally safe

• Modern dynamic microphones with balanced XLR outputs (per Sound on Sound, citation above).
• Active DI boxes — many are powered by P48 by design.
• Modern balanced studio gear designed to spec.

Common Misconceptions

"Phantom power improves audio quality." No. It is a power supply, not a signal processor. A dynamic mic does not sound different with P48 enabled — it just gets the same DC at its (transformer-isolated) output, which it ignores.

"You need expensive cables for phantom power." No. Any properly wired balanced XLR cable carries phantom fine. Cable quality matters for noise rejection and durability, not for the power capacity.

"All condenser mics need exactly 48 V." The standard supplies 48 V ±4 V at the source, but per the IEC 61938 specification summary, some condensers are designed to operate on as little as ~11 V (Phantom power, IEC 61938 reference). Always check your mic's documentation; some high-current designs really do need the full 48 V to perform to spec.

"It is only the heat that kills ribbons." No — see the corrected mechanism above. The damage is mechanical destruction of the ribbon driven by transient DC current.

When This Affects You — Practical Examples

• You own a passive ribbon (Royer R-121, AEA R84, Coles 4038, sE Voodoo VR1, Cascade Fat Head): Use the disable-and-wait protocol. Never hot-patch into a phantom-charged input.
• You own an active ribbon (Royer R-122 / R-122 MKII / R-10, AEA A440 / A840): Phantom is required. Follow the manufacturer's connection instructions — these designs tolerate hot connection because the input stage is designed for it.
• You're recording a band with mixed mic types: Disable phantom on any channel feeding a passive ribbon mic, every time. If your interface has only global phantom, route the ribbon to a separate preamp or use a transformer that can handle phantom safely.
• You're using a TS-to-XLR adapter "just to make it work": Stop, and check whether phantom is on. Adapters that short pin 3 to ground will dump 48 V into whatever is on the other end.

When to Consult a Professional

If you suspect a ribbon mic has been damaged by phantom power — output is dramatically reduced, the mic sounds dull, distorted, or asymmetric on positive vs. negative excursions — stop using it and contact the manufacturer or a qualified microphone technician. Royer offers re-ribboning service for their products; Coles, AEA, and most boutique ribbon makers do as well. A re-ribbon is far cheaper than buying a new mic and almost always restores original performance. Do not attempt to re-ribbon a mic yourself unless you have the specific tooling and material — the ribbon is corrugated 1.8–2.5 µm aluminum and tensioning is a precision operation.

Sources & Citations

1. Royer Labs, "Ribbon Mics and Phantom Power," royerlabs.com (accessed 2026-04-19)
2. Sound on Sound, "Q. Is it safe to apply phantom power to dynamic mics?" (Hugh Robjohns), soundonsound.com (accessed 2026-04-19)
3. "Phantom power" (IEC 61938 P48 specification summary, P12/P24 variants, current draw and tolerance), en.wikipedia.org/wiki/Phantom_power (accessed 2026-04-19)
4. Sound on Sound glossary entry, "Phantom Power," soundonsound.com (accessed 2026-04-19)
5. Royer Labs, "Ribbons Do's and Don'ts," royerlabs.com (accessed 2026-04-19)

Last verified: 2026-04-20
