What Is DRAM Cache on an SSD? DRAM-less Drives Explained

DRAM cache is a small pool of fast memory on an SSD’s controller board that holds the drive’s mapping table — the index translating addresses your computer sees into the physical flash cells where data lives. Drives with DRAM look that table up almost instantly. DRAM-less drives keep a smaller version on the flash itself, or borrow host memory through HMB.

What the Mapping Table Is For

An SSD does not store data at the same logical address forever. Every time a piece of data is rewritten, the controller writes it to a fresh, already-erased flash location rather than overwriting in place — a necessity of how NAND flash works, and part of why TRIM exists in the first place. Keeping track of where each logical address currently lives is the job of the flash translation layer (FTL), and the FTL’s lookup index is the mapping table.

For a drive to answer a read request quickly, it has to consult this table on essentially every single operation. The table itself is not small: a common rule of thumb is roughly 1 MB of mapping data for every 1 GB of flash capacity, which means a 1 TB drive is managing on the order of 1 GB of mapping data. Where that table lives, and how fast it can be reached, is the entire DRAM-versus-DRAM-less question.

DRAM vs. DRAM-less: The Architecture Difference

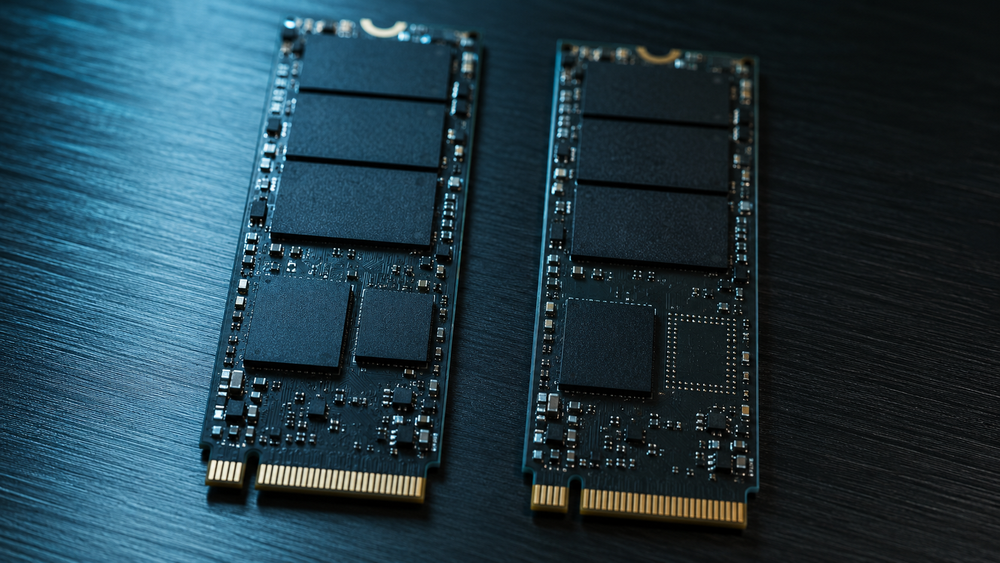

A drive built with dedicated DRAM — a separate volatile memory chip mounted right next to the controller, similar in principle to system RAM — keeps the entire mapping table there. Lookups are effectively instantaneous, because DRAM access latency is orders of magnitude faster than reading from NAND flash. Consumer SATA drives such as the Crucial MX500 2TB SATA SSD use this design, and it has been the standard architecture for higher-end SSDs for years.

A DRAM-less drive skips that dedicated chip entirely, which lowers manufacturing cost and simplifies the board. Instead, it has two options for keeping track of the mapping table: store a working portion directly on the flash itself and read it from there when needed (slower, since flash reads take longer than DRAM reads), or borrow a slice of the host system’s own RAM over the NVMe protocol using a feature called Host Memory Buffer (HMB). Budget NVMe drives like the Crucial P3 500GB NVMe use exactly this approach — the mechanics of HMB itself are covered in the companion article, what is HMB?

Does DRAM-less Mean Slow?

Not automatically, and this is where a lot of shopping advice oversimplifies. For sequential transfers — copying a large video file, for instance — DRAM-less NVMe drives with HMB support routinely perform close to their DRAM-equipped counterparts, because sequential workloads touch relatively little mapping-table data relative to the amount of data moved.

Where the difference shows up is in workloads that hammer random, small reads and writes across a large span of the drive — heavy multitasking, database-style access patterns, or very full drives with fragmented free space. In those cases, a DRAM-less drive without an active HMB allocation, or one on a system where HMB is not being granted, can show noticeably higher latency and lower sustained performance than a DRAM-equipped drive under the same load.

Where Each Design Makes Sense

• DRAM-less is a reasonable fit for: boot drives on budget builds, laptops where board space and power draw matter, secondary storage, and general desktop use — typical consumer workloads rarely stress the mapping-table bottleneck hard enough to notice.
• Dedicated DRAM is worth paying for when: the drive will run sustained heavy random I/O — large database workloads, NAS use with many simultaneous clients, or professional workstations juggling large working sets — where consistent low-latency mapping lookups matter more than shaving cost off the bill of materials.

How to Tell Which You Are Buying

Manufacturers do not always advertise DRAM-less status prominently, since it sounds like a downgrade even when it is a reasonable engineering trade-off. A few practical tells:

• Entry-level and budget product lines within a manufacturer’s lineup are more likely to be DRAM-less than flagship or "Pro" lines — check whether the listing or spec sheet mentions HMB support, which usually signals a DRAM-less design.
• Independent SSD reviews and teardown coverage from established hardware outlets typically identify the controller model and confirm DRAM presence directly.
• Price alone is a weak signal on its own — use it alongside the manufacturer’s own spec sheet rather than in place of it.

Frequently Asked Questions

Is a DRAM-less SSD bad?

Not inherently. Modern DRAM-less drives paired with HMB perform well for the great majority of consumer workloads. The gap versus DRAM-equipped drives only becomes meaningful under sustained heavy random I/O, which most desktop and laptop users rarely generate.

How can I tell if my SSD has DRAM without opening it?

Check the manufacturer’s spec sheet or product page for the controller model, or look for mentions of HMB support (a strong sign the drive is DRAM-less). Independent reviews from established hardware sites frequently confirm this directly.

Does DRAM cache store my actual files?

No. DRAM cache on an SSD holds the mapping table (and sometimes a small amount of in-flight write buffering), not user data itself. It is volatile memory that is cleared on power-off; your files live on the non-volatile NAND flash regardless of drive architecture.

Do DRAM-less drives cost significantly less?

Generally yes, at a given capacity and NAND quality, since removing a dedicated memory chip and simplifying the board reduces manufacturing cost — part of why DRAM-less designs are common in budget and entry NVMe lines.
