Atomos Ninja 5.2" 4K HDMI Monitor, Battery & Swivel Mount Kit

Name: Atomos Ninja 5.2" 4K HDMI Monitor, Battery & Swivel Mount Kit
Brand: Atomos
SKU: Ninja

★★★★★3.6 (3 reviews)

4K1920 x 1080HDMI 2.04900mAh

A 5.2-inch 1000-nit recording monitor bundled with an NP-F battery kit and swivel mount for on-set use.

$649.00*

✓ In Stock on Amazon.com

View on Amazon

*Price sourced from Amazon.com. Last updated:Jul 14, 2026.Price and availability are subject to change.

Affiliate Disclosure: Studio Supplies may earn a commission from qualifying purchases made through links on this page, at no additional cost to you. This helps support our editorial team.

Notice a mistake? Let Us Know

Overview

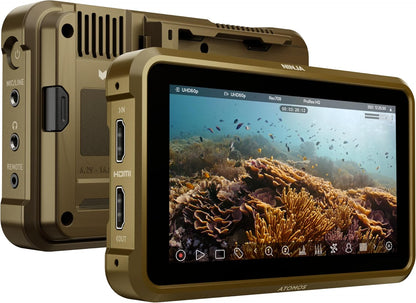

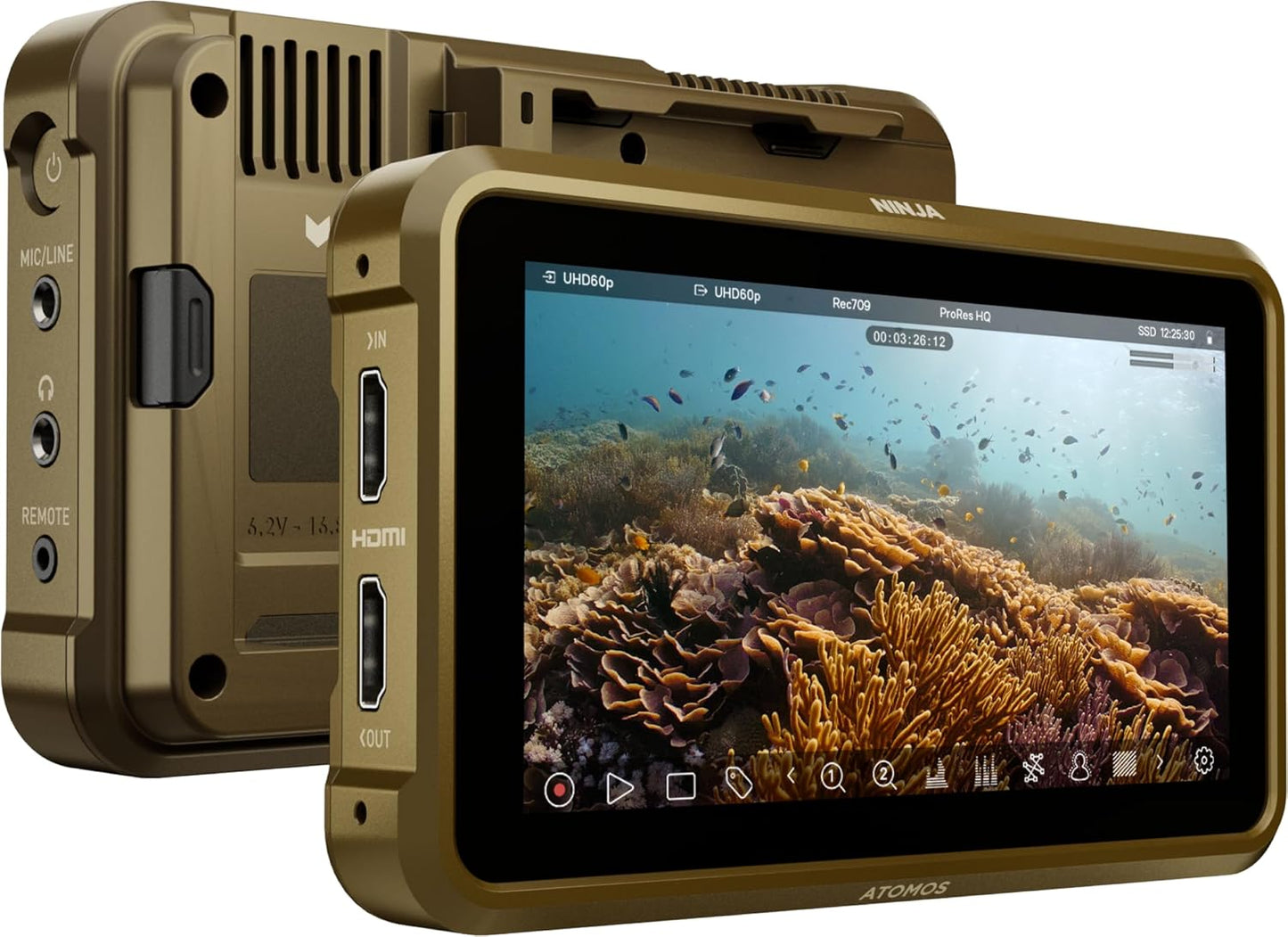

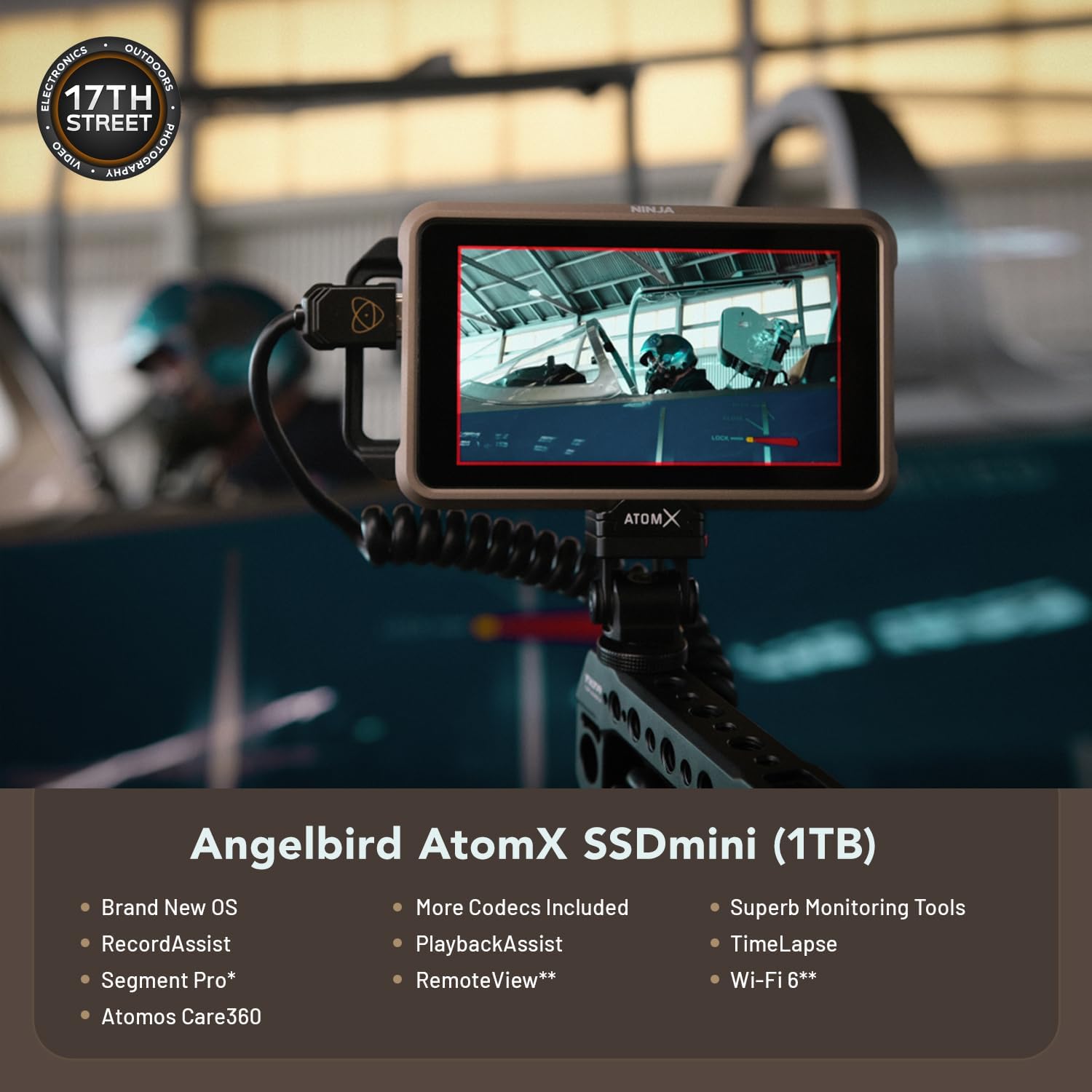

The Atomos Ninja 5.2" 4K HDMI Recording Monitor is built for filmmakers and content creators who need accurate on-set monitoring paired with high-quality recording. Its 1920x1080 touchscreen panel delivers 1000 nits of brightness, making it readable even under harsh outdoor lighting. The 10-bit display helps with critical tasks like judging exposure, pulling focus, and evaluating color accuracy. Running AtomOS 11, the Ninja provides an updated icon-based interface that streamlines access to tools like waveforms, focus peaking, and false color. Via HDMI 2.0, it accepts up to 4K video input and can record ProRes RAW at up to 6K30 with select compatible cameras, giving shooters a path to high-quality RAW workflows.

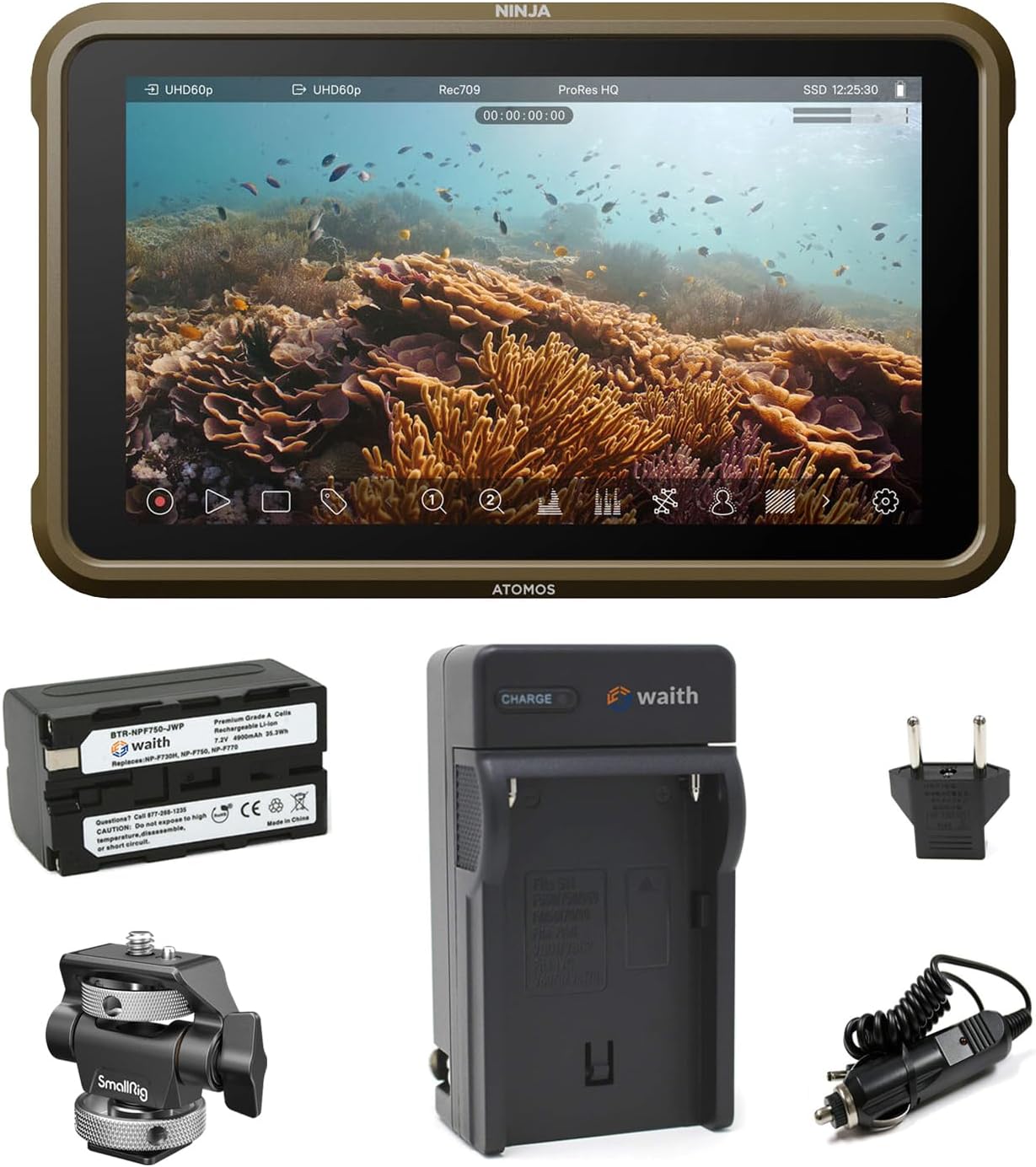

This bundle packages the Ninja monitor with a Waith Power NP-F750 lithium-ion battery (7.2V, 4900mAh) and charger — including a car adapter for charging on location — plus a SmallRig swivel-and-tilt monitor mount. The mount features a bottom cold shoe for attaching to camera hot shoes, cages, or handles, along with a top 1/4"-20 thread for additional accessories. It tilts 180° and swivels 360°, with a locking knob for secure positioning. Together, the kit provides everything needed to mount, power, and start recording with the Ninja right away, with only storage media (Master Caddy II or III SSDs) needed to complete the setup.

Key Features

Atomos Ninja 5.2" 4K HDMI Recording Monitor features every detail in stunning 4K resolution, ensuring your footage is crisp, vibrant, and true to life, a high-resolution Full HD touchscreen display with a resolution of 1920 x 1080 pixels. The Ninja monitor is equipped with a 10-bit panel. The AtomOS 11 operating system equips your monitor with new features along with an improved icon interface for more intuitive operation.

With a high brightness level of 1000 nits (cd/m²), the Ninja monitor delivers exceptional outdoor visibility. The Ninja monitor offers the capability to record ProRes RAW footage at up to 6K resolution and 30 frames per second with select compatible cameras, with HDMI 2.0 compatibility, the Ninja monitor provides seamless 4K video input and output which supports high data transfer rates.

The Ninja supports the use of select Sony, ARRI, JVC, RED, FUJIFILM, Nikon, Panasonic, and Canon log formats commonly used in professional filmmaking. The monitor offers versatile recording options with support for popular codecs like ProRes and DNxHR/HD. Compatible with Master Caddy II and III hard drives, it offers a convenient and reliable way to store your recorded footage. An L-series battery plate on the back of the Ninja can support NP-F L-series batteries outputting 5.8 to 7.2V

Waith Power battery and charger kit includes one battery and one charger with car adapter. Quick charge with automatic constant current control prevents battery from overcharging and fully charges the battery in approximately 60-90 minutes. Premium Grade-A rechargeable lithium-ion battery rated at 7.2V and 4900mAh for longer battery life.

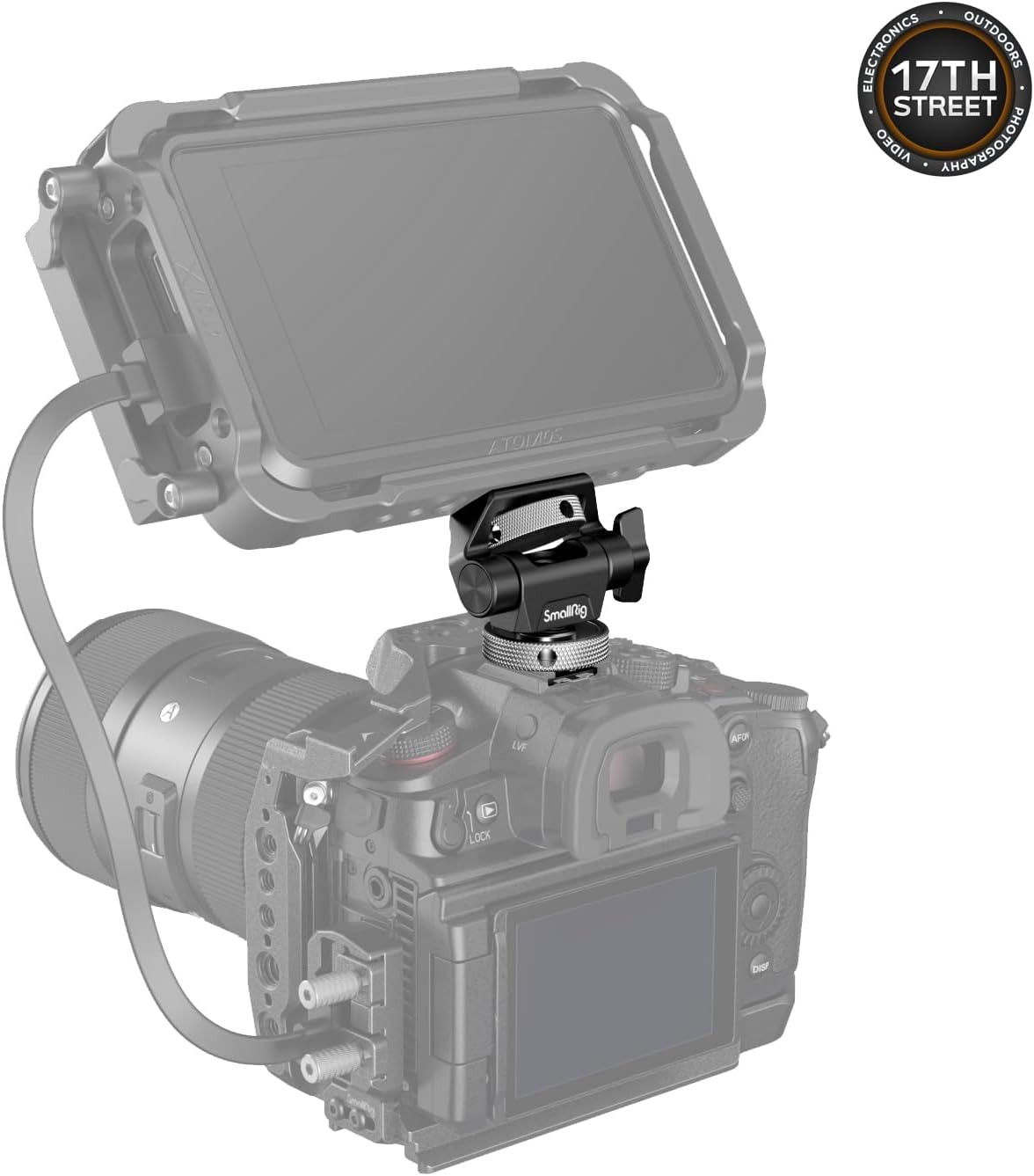

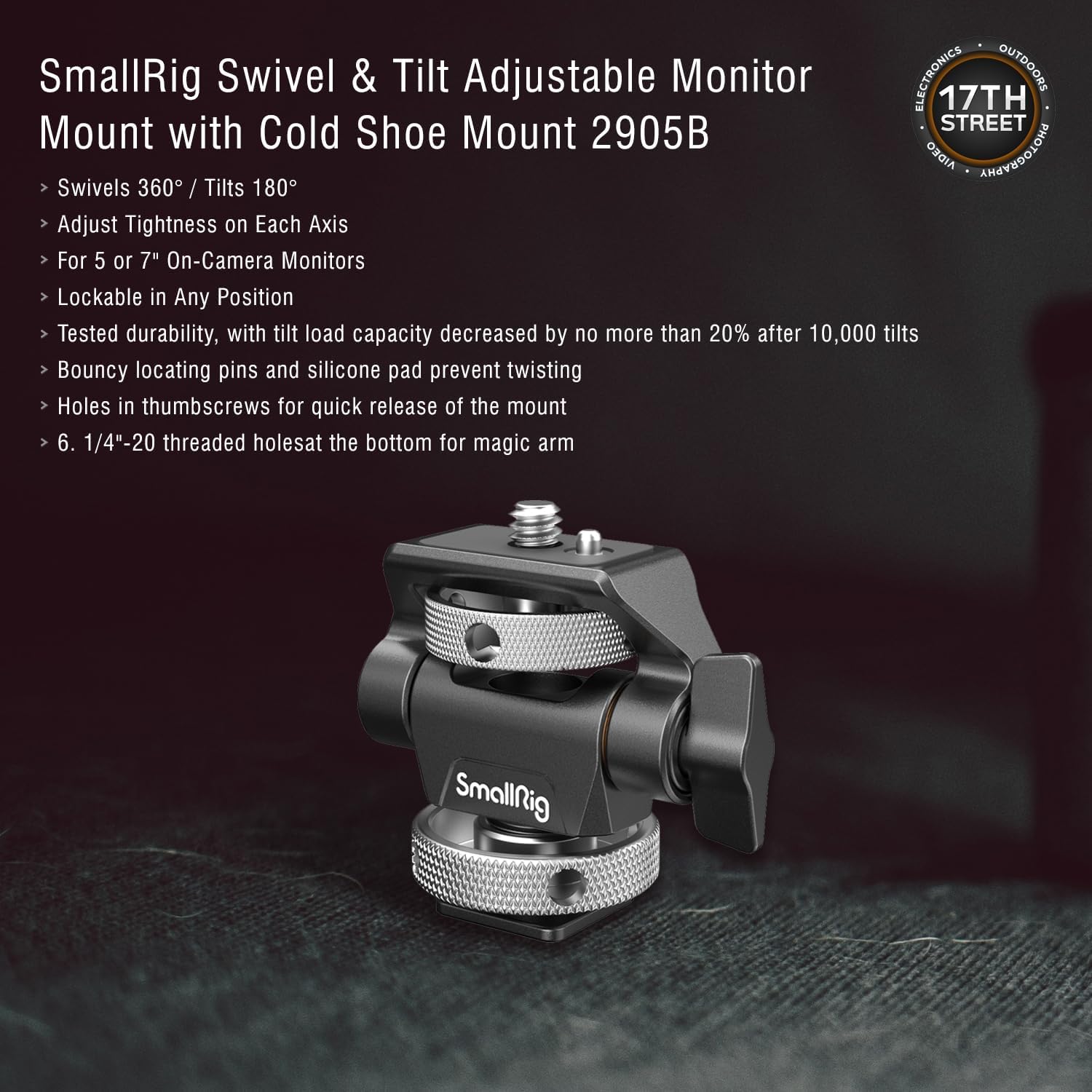

Swivel and Tilt Adjustable Monitor Mount with Cold Shoe Mount is designed to hold your monitor for easy monitoring. It comes with a bottom cold shoe for camera hot shoe, cage or handle and a top 1/4"-20 screw for monitor, microphone, light, etc. The mount can tilt 180° and and swivel 360°. Its tilt axis is quickly tightened via a knob to suit different weight.

Specifications

Brand

Atomos

Model

Ninja

Screen Size

5.2 inches

Display Resolution

1920 x 1080

Panel Bit Depth

10-bit

Brightness

1000 nits (cd/m²)

Video Input/Output

HDMI 2.0

Max RAW Recording

6K at 30fps (ProRes RAW, with select cameras)

Recording Codecs

ProRes, DNxHR/HD

Storage Media

Master Caddy II and III SSDs

Operating System

AtomOS 11

Battery Plate

NP-F L-series (5.8–7.2V)

Included Battery

Waith Power NP-F750 (7.2V, 4900mAh)

Included Mount

SmallRig Swivel and Tilt Monitor Mount (180° tilt, 360° swivel)

Pros & Cons

👍 Pros

1000-nit brightness makes the touchscreen usable in direct sunlight on outdoor shoots.
ProRes RAW recording up to 6K30 with compatible cameras enables high-quality capture without an external recorder.
Bundle includes battery, charger, and articulating mount, reducing the number of separate purchases needed.
10-bit panel with 1920x1080 resolution provides accurate color and detail for critical focus and exposure checks.

👎 Cons

ProRes RAW at 6K is limited to select compatible cameras, so RAW capability depends on your specific camera model.
Master Caddy SSDs are required for recording and are not included, adding to the total cost.
At 5.2 inches the screen may feel small for directors or clients reviewing footage on set at a distance.
The included NP-F750 battery provides limited runtime for long recording sessions.

Frequently Asked Questions

What recording formats does the Atomos Ninja support?

The Ninja records in ProRes and DNxHR/HD codecs, and supports ProRes RAW at up to 6K30 when paired with select compatible cameras.

What is included in this bundle besides the monitor?

The kit includes a Waith Power NP-F750 battery with a charger (including car adapter) and a SmallRig swivel-and-tilt adjustable monitor mount with cold shoe.

What storage media does the Ninja use?

The Ninja records to Master Caddy II and III compatible SSDs, which are sold separately.

How bright is the Ninja's display for outdoor shooting?

The screen reaches 1000 nits (cd/m²), which provides strong visibility in bright daylight conditions.

What camera log formats does the Ninja support?

It supports select log formats from Sony, ARRI, JVC, RED, FUJIFILM, Nikon, Panasonic, and Canon, commonly used in professional filmmaking.
