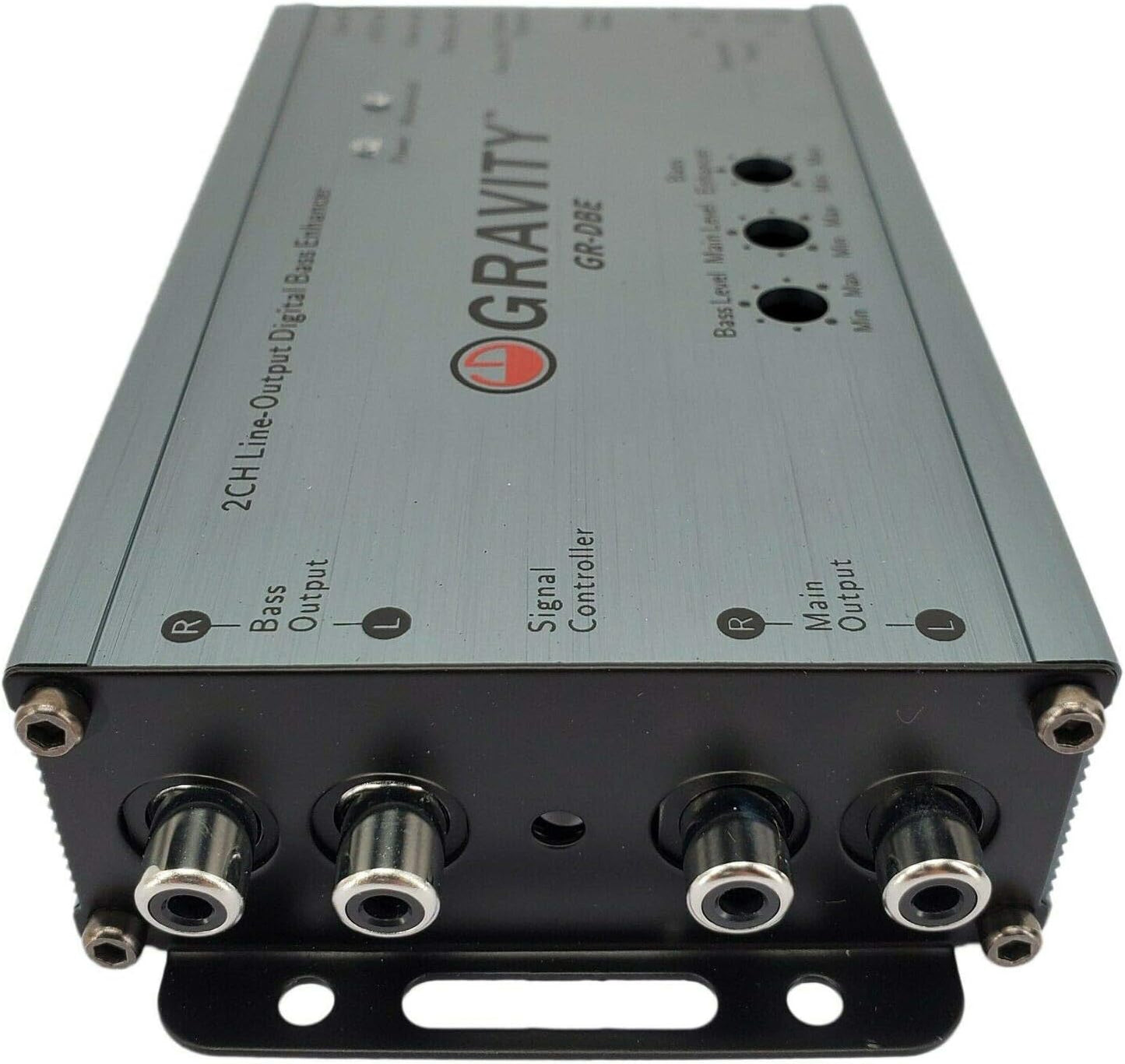

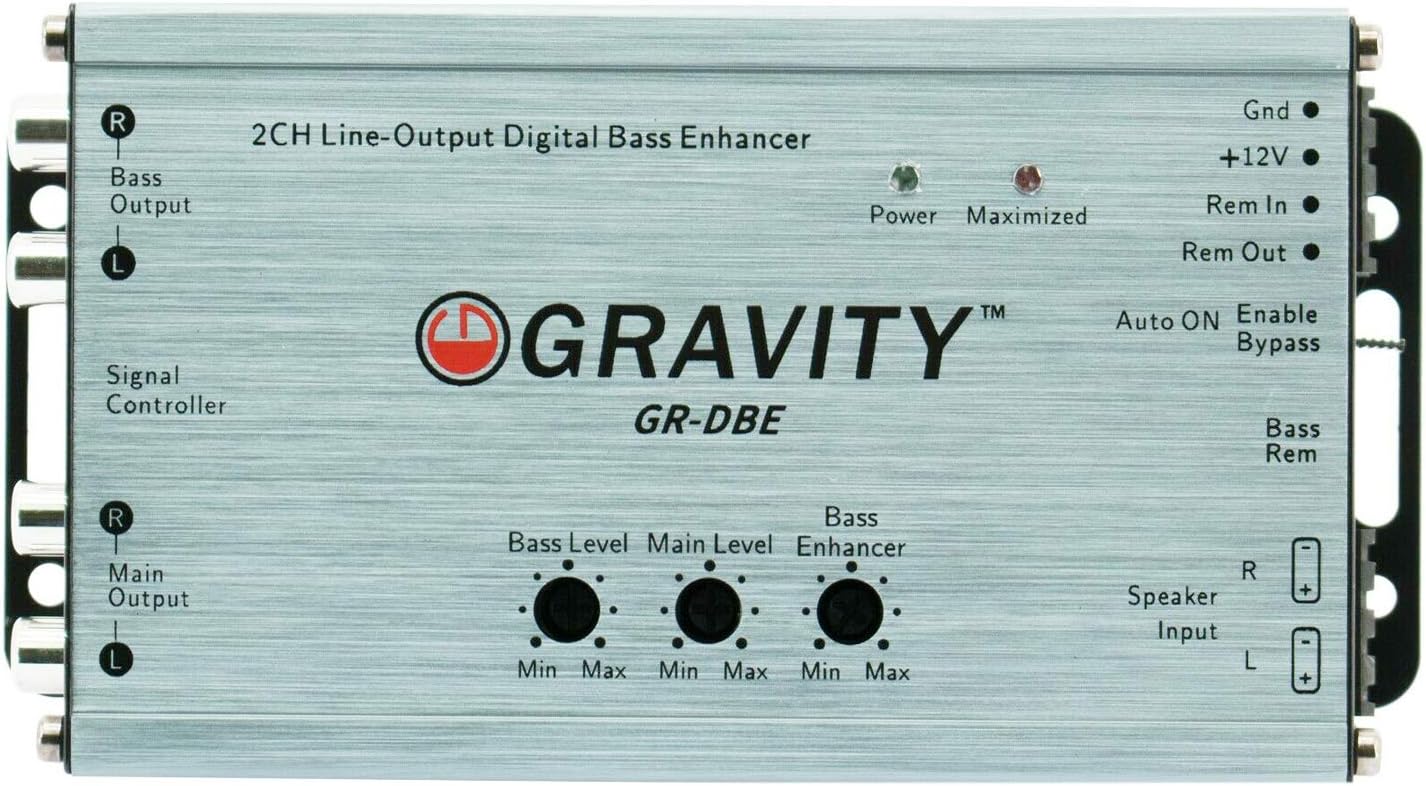

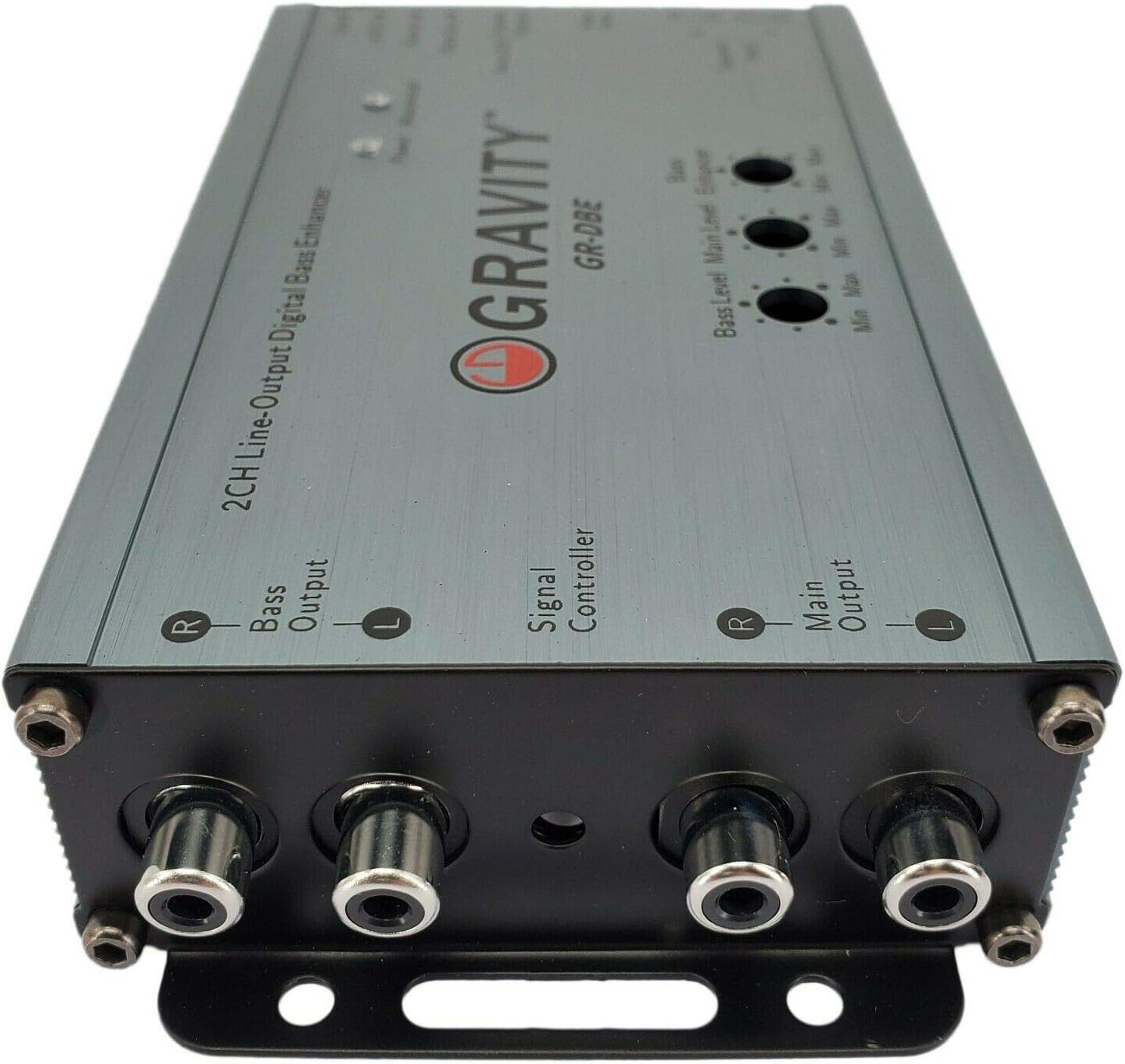

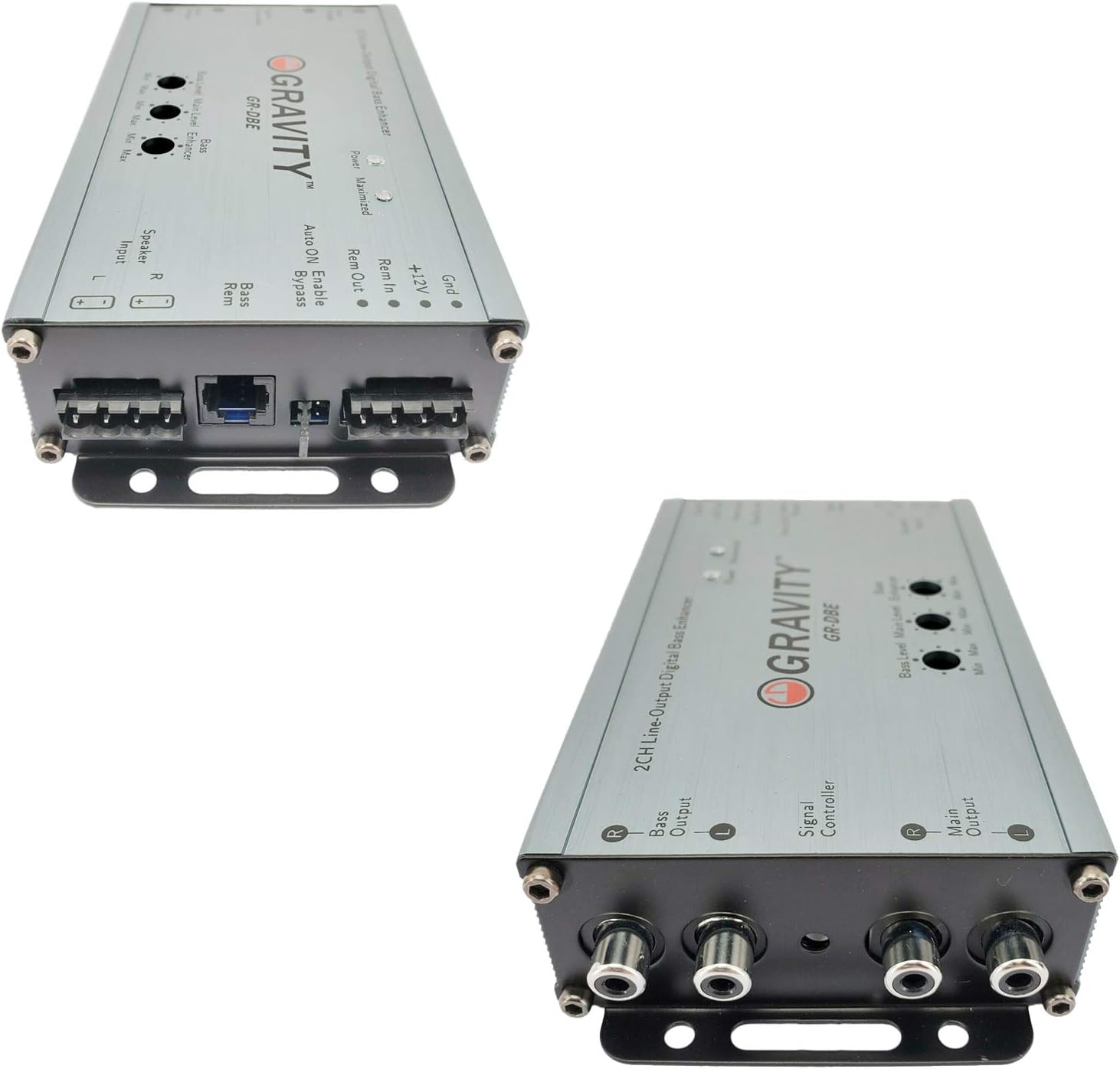

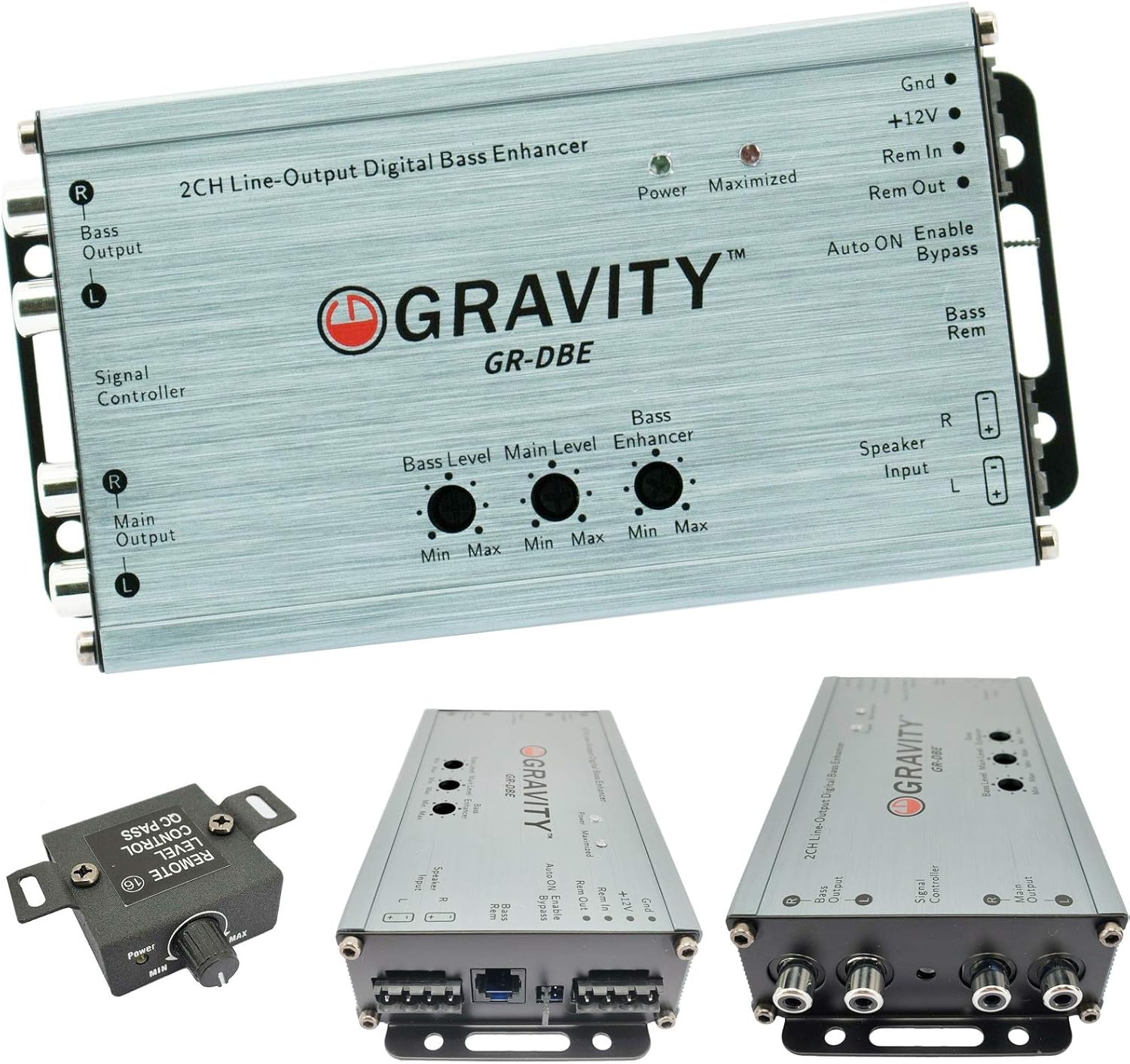

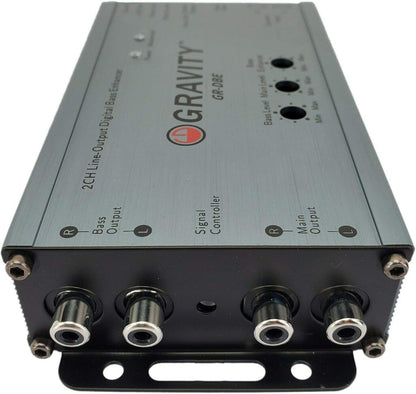

Gravity GR-DBE 2-Channel Line-Output Converter Bass Enhancer
Elevate Your Car Audio with Enhanced BassThe Gravity GR-DBE Line-Output Converter enhances your car stereo system by delivering crystal-clear audio and powerful bass enhancement. Channels: Two Channels Power: 400 Watts Signal/CH Bass Enhancement: Digital Bass Enhancer Pre-Amp Output: 9.5 Volt Con...
$43.59*
View on Amazon
✓ In Stock on Amazon.com
*Price sourced from Amazon.com. Last updated:Oct 21, 2026.Price and availability are subject to change — details.
Affiliate Disclosure: As an Amazon Associate, Studio Supplies earns from qualifying purchases made through links on this page, at no additional cost to you. This helps support our editorial team.
Notice a mistake? Let Us Know
Overview
Elevate Your Car Audio with Enhanced Bass
The Gravity GR-DBE Line-Output Converter enhances your car stereo system by delivering crystal-clear audio and powerful bass enhancement.
- Channels: Two Channels
- Power: 400 Watts Signal/CH
- Bass Enhancement: Digital Bass Enhancer
- Pre-Amp Output: 9.5 Volt
- Controls: Level Matching Controls
Key Features

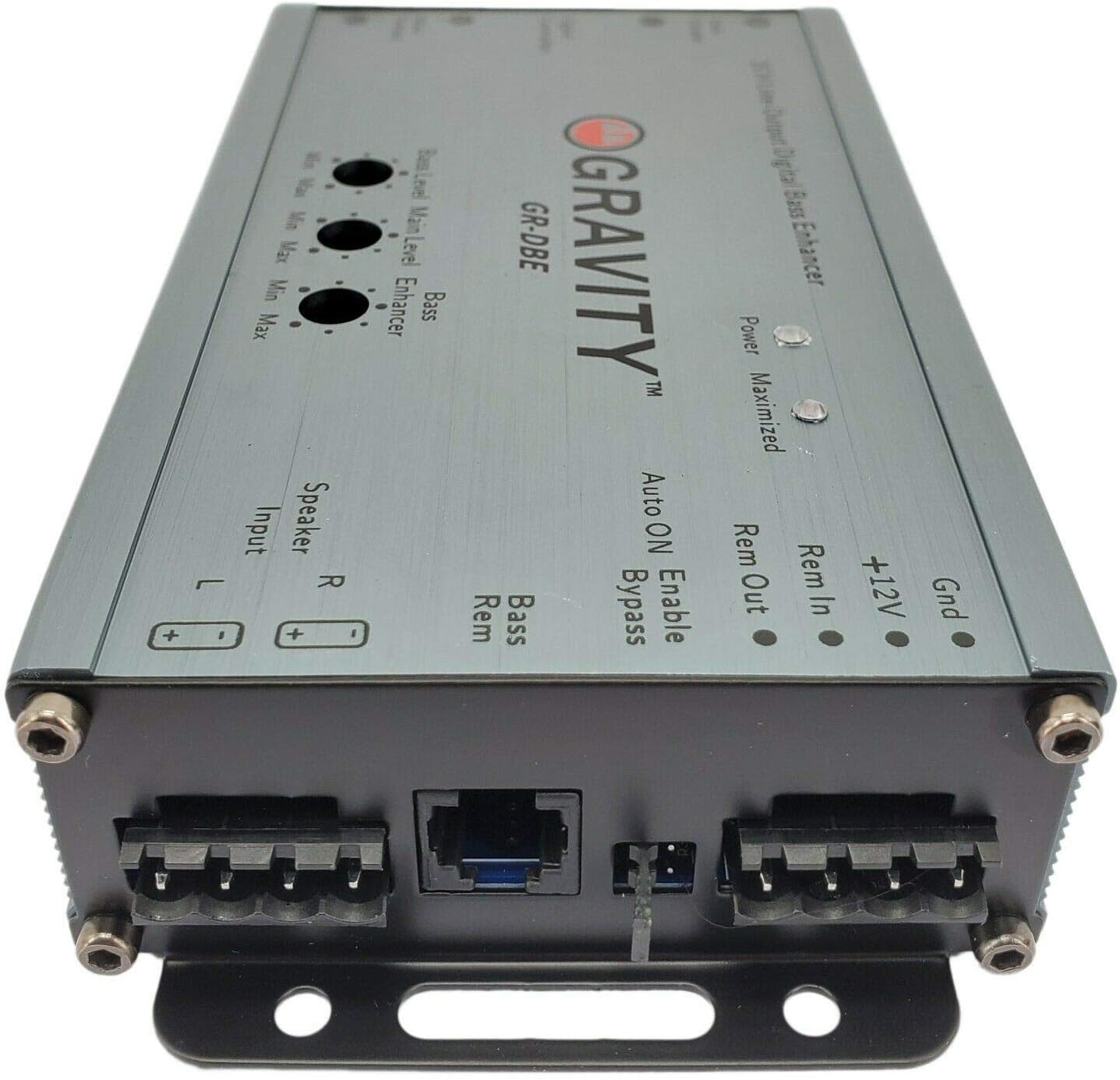

INTEGRATION - Add aftermarket amplifiers to a factory radio using two active speaker-level inputs that convert amplified factory speaker signals into clean low-level RCA outputs while retaining the original head unit.

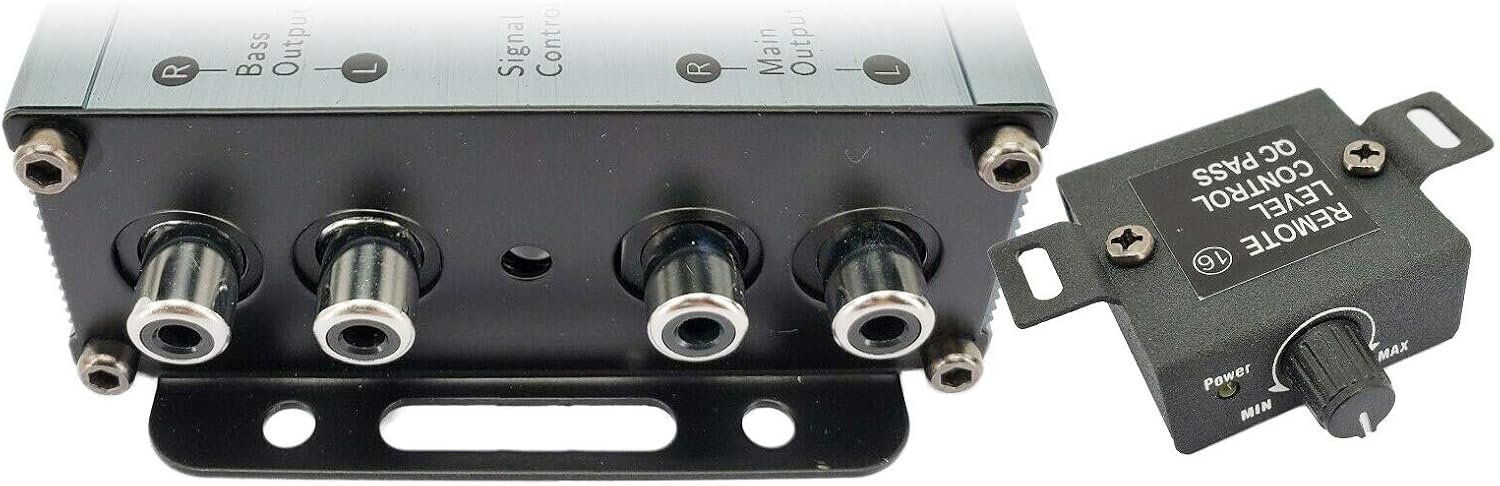

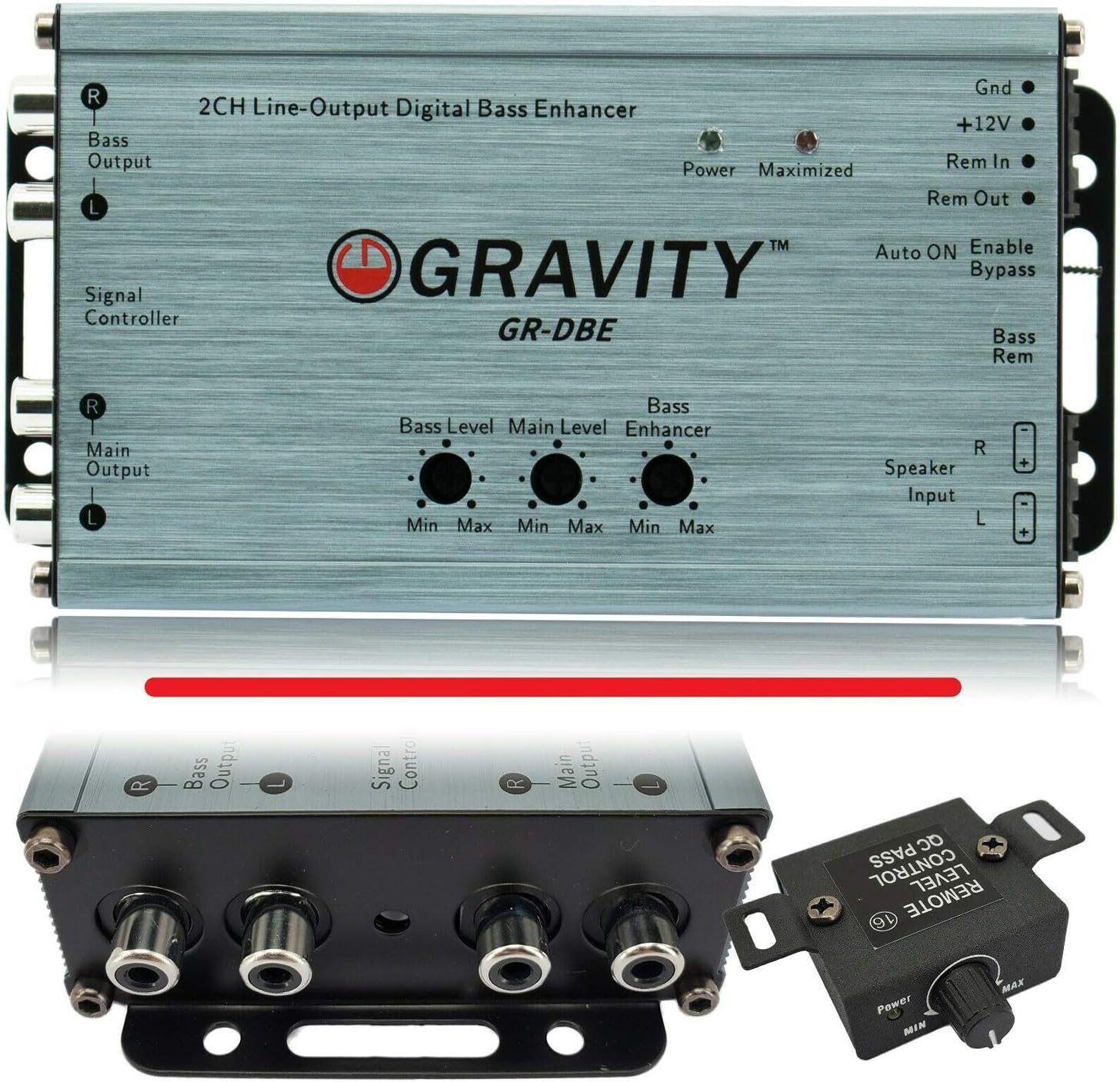

BASSLIFT - Digital bass enhancement compensates for factory bass roll-off, helping restore low-frequency impact lost in many OEM audio systems. The dash-mounted level control knob allows convenient adjustment from the driver’s seat.
POWERFUL - Dual-amplifier-ready 9.5 Vrms, 13V peak preamp outputs provide a strong RCA signal for external amplifiers, supporting high-output system designs while reducing the need to raise amplifier gain settings.
PRECISION - Independent level-matching controls help balance output with connected amplifier inputs for a cleaner, more controlled signal. The 10 Hz to 100 kHz, ±1 dB frequency response supports bass, mids, and highs.
CLEAN - Designed for low-noise signal transfer with 0.01% total harmonic distortion, over 110 dB signal-to-noise ratio, 20K-ohm input impedance, and 150-ohm output impedance for detailed audio reproduction.
COMPACT - The Gravity GR-DBE measures 6-3/8 in. W x 3-1/8 in. D x 1-1/2 in. H for flexible mounting in vehicle audio installations. It draws 150 mA, accepts up to 400 watts per channel input, and uses a recommended 1-amp fuse.
Specifications
Channels
2 (active speaker level inputs)
Technology
BassLift Technology
Output Type
Low-Level RCA Input (from high-level signal)
Pre-amp Outs
Dual amplifier / 9.5 volt
Controls
Level matching controls
Dimensions
6-3/8"W x 3-1/8"D x 1-1/2"H
Frequently Asked Questions
What is the purpose of the "BassLift" Technology in this converter?
The "BassLift" Technology in the Gravity GR-DBE is designed to restore and compensate for factory bass roll-off, improving the low-frequency response in your car audio system.
How does this device connect to my car's existing audio system?
This line-output converter features two channels of active speaker level inputs, allowing it to connect directly to the high-level speaker outputs from your factory stereo.
Can I connect an aftermarket amplifier to this converter?
Yes, this converter is designed to convert high-level speaker signals into low-level RCA inputs, which are suitable for connecting to aftermarket amplifiers.
What kind of output voltage can I expect from the pre-amp outs?
The Gravity GR-DBE provides dual amplifier outputs and 9.5 volt pre-amp outs, offering a strong signal for your connected amplifiers.
Does this converter allow for adjustment of the signal levels?
Yes, this unit includes level matching controls, which enable you to precisely adjust the output signal to achieve optimal balance within your audio system.
What are the physical dimensions of this bass enhancer?
The Gravity GR-DBE has dimensions of 6-3/8"W x 3-1/8"D x 1-1/2"H, making it a compact option for installation.
