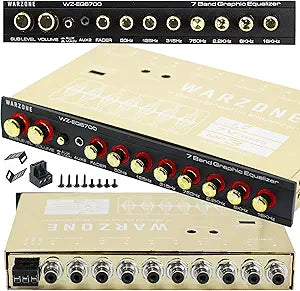

Gravity Warzone EQ6700 7 Band Car Audio Equalizer
Fine-Tune Your Car Audio with Precision The Warzone EQ6700 is a versatile 1/2 DIN 7-Band Car Audio Equalizer designed to optimize your car audio system. With front, rear, and subwoofer outputs, it offers precise control over your audio frequencies. Gold-plated RCA connectors ensure the best audio...
$64.99*
View on Amazon
✓ In Stock on Amazon.com
*Price sourced from Amazon.com. Last updated:Oct 21, 2026.Price and availability are subject to change — details.
Affiliate Disclosure: As an Amazon Associate, Studio Supplies earns from qualifying purchases made through links on this page, at no additional cost to you. This helps support our editorial team.
Notice a mistake? Let Us Know
Overview
Fine-Tune Your Car Audio with Precision
The Warzone EQ6700 is a versatile 1/2 DIN 7-Band Car Audio Equalizer designed to optimize your car audio system. With front, rear, and subwoofer outputs, it offers precise control over your audio frequencies. Gold-plated RCA connectors ensure the best audio output for cars, boats, RVs, RTVs, and motorcycles.
Key Features:
- Equalization Bands: 7 (50Hz, 125Hz, 315Hz, 750Hz, 2.2kHz, 6kHz, 16kHz)
- Adjustment Range: -12 to +12dB (-15 to +15dB for subwoofer)
- Subwoofer Crossover: Built-in 18dB per octave electronic crossover (60Hz or 90Hz)
- Outputs: Three stereo RCA outputs (front, rear, subwoofer)
- Input: Auxiliary stereo RCA input
- Controls: Master volume, subwoofer volume, front/rear fader, input selection
- Frequency Response: 20Hz to 30kHz (+/-3dB)
- S/N Ratio: 100dB
- Connectors: Gold-plated RCA connectors
Technical Details:
- Graphic Center Frequencies: 50Hz, 125Hz, 315Hz, 750Hz, 2.2kHz, 6kHz, 16kHz
- Boost/Cut: 12dB
- S/N Ratio: 100dB
- Frequency Response: 10Hz ~ 50kHz +/-3dB
- Maximum Output Voltage: 7V
- THD: 0.005%
- Input Sensitivity: 50mV ~ 3V
- Head Room: 20dB
- Input Impedance: 20kOhms
- Output Impedance: 2kOhms
- Stereo Separation: 82dB/1kHz
- Operating Voltage: 11V ~ 15V Negative Ground
- Size: 7 x 4 1/8" x 1 inches
Key Features
TUNING - Seven-band graphic equalizer targets 50Hz, 125Hz, 315Hz, 750Hz, 2.2kHz, 6kHz, and 16kHz, letting you shape bass, midrange, and treble with ±12dB boost/cut adjustment.
CONTROL - Dedicated master volume, subwoofer level, front/rear fader, and main/aux source selector provide dash-mounted command of system balance. Auxiliary stereo RCA input accepts portable music players or DVD sources.
OUTPUT - Three stereo RCA preamp outputs independently feed front, rear, and subwoofer amplifiers, while gold-plated RCA connectors help maintain a stable, low-noise signal path with up to 7V maximum output voltage.
BASS - Built-in electronic crossover on the subwoofer output uses an 18dB-per-octave slope with fixed 60Hz or 90Hz selection, directing low frequencies to a dedicated sub amplifier for focused bass tuning.
CLARITY - Wide 10Hz-50kHz frequency response (±3dB), 100dB signal-to-noise ratio, 0.005% THD, 82dB stereo separation at 1kHz, and 20dB headroom support clean, detailed playback across the audio range.
INSTALLATION - Compact 1/2-DIN chassis measures 7 x 4-1/8 x 1 inches and includes ISO mounting holes plus a removable trim ring. Designed for 11V-15V negative-ground systems in cars, boats, RVs, motorcycles, and UTVs.
Specifications
Equalizer Bands
7
Subwoofer Output Crossover
Built-in 18dB per octave electronic crossover
Crossover Frequencies
60Hz, 90Hz (selectable)
Stereo RCA Outputs
3 (Front, Rear, Subwoofer)
Auxiliary Stereo RCA Input
Yes
Controls
Master Volume, Subwoofer Volume (Sub Level), Front/Rear Fader, Main/Auxiliary Input Selector
Frequency Response
20Hz to 30kHz
Signal-to-Noise Ratio
100dB
Frequently Asked Questions
What kind of subwoofer control does the Gravity Warzone EQ6700 offer?
The Gravity Warzone EQ6700 features a subwoofer output with a built-in 18dB per octave electronic crossover, providing precise control over bass frequencies.
Can I choose the crossover frequency for my subwoofer with this equalizer?
Yes, the subwoofer output allows you to select between fixed crossover frequencies of 60Hz or 90Hz, tailoring the bass response to your preferences.
How many audio amplifiers can this equalizer drive?
It provides three stereo RCA outputs, designed to drive front, rear, and subwoofer audio amplifiers independently for a complete car audio setup.
Does the EQ6700 allow me to connect external audio devices?
Yes, it includes an auxiliary stereo RCA input, making it easy to connect portable devices such as an MP3 player or DVD player to your car audio system.
What are the main audio adjustment controls available on this equalizer?
The equalizer offers separate controls for master volume, subwoofer volume (sub level), a front/rear fader, and a selector for main or auxiliary inputs, providing comprehensive audio customization.
