JVC CSPK202 12" Subwoofer/Amp Package
JVC CSPK202 12" Subwoofer/Amp Package
Drive Your Sound with Powerful Bass

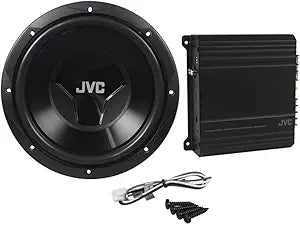

Introducing the JVC CS-PK202, a complete package featuring a 12" DRVN Series Subwoofer and a 2-Channel DRVN Series Amplifier. Engineered for car audio enthusiasts, this combo delivers deep, powerful bass and crystal-clear sound.
Amplifier Specifications:
- Amplifier Type: AX Series 2-Channel Class AB
- RMS Power: 40W x 2 (4 Ohms), 60W x 2 (2 Ohms), 120W x 1 (Bridged 4 Ohms)
- Max Power Output: 300 Watts
- Power Supply: Pulse Width Modulated MOSFET
- Remote Bass Control: Wired, Included
- Input Sensitivity: 200mV - 5V
- Frequency Response: 5 - 50,000 Hz
- THD: Less than 0.06%
- Signal to Noise Ratio: 80 dB
- Crossover Filters: Selectable LPF / OFF / HPF
- High-Pass Filter: 150 Hz, 12 dB/octave
- Low-Pass Filter: 80Hz, 12 dB/octave
- Fuse Rating: 20 A x 1
- Dimensions: 7-3/8"W x 7-5/16"L x 2"H
- Weight: 2.7 lbs
Subwoofer Specifications:
- Subwoofer Size: 12" W Series
- Peak Power Handling: 1000 Watts
- RMS Power Handling: 150 Watts
- Recommended Power Range: 75 - 150 Watts RMS
- Cone Material: Polypropylene
- Surround Material: High-Density Foam
- Voice Coil: Single 4 Ohm
- Top-Mount Depth: 5-1/16"
- Cutout Diameter: 11-1/8"
- Magnet Mass: 21.30 Oz
- Voice Coil Diameter: 1-1/2"
- Frequency Response: 25 - 2500 Hz
- Sensitivity: 85dB
