JVC KS-AX202 300W 2-Channel Class AB Amplifier
★★★★★
300W
Compact Class AB car amplifier with 300W max power, bass boost control, and triple circuit protection built JVC tough.
Check availability
Affiliate Disclosure: Studio Supplies may earn a commission from qualifying purchases made through links on this page, at no additional cost to you. This helps support our editorial team.
Notice a mistake? Let Us Know
Overview
Key Features
POWER - Pure Class A/B Maximum Power output of 300 Watts. RMS Power Rating: 4 ohms: 40 watts x 2 chan. / 2 ohms: 60 watts x 2 chan. / Bridged: 4 ohms: 120 watts x 1 chan. without RCA preouts Enjoy flexible installation in a variety of systems
DESIGN - Built tough and Compact. Easily fits under a seat and is built JVC Tough to last
SMART AMP - JVC employs a triple protection circuit that will prevent damage due to Thermal, Overload and Speaker Short Protection

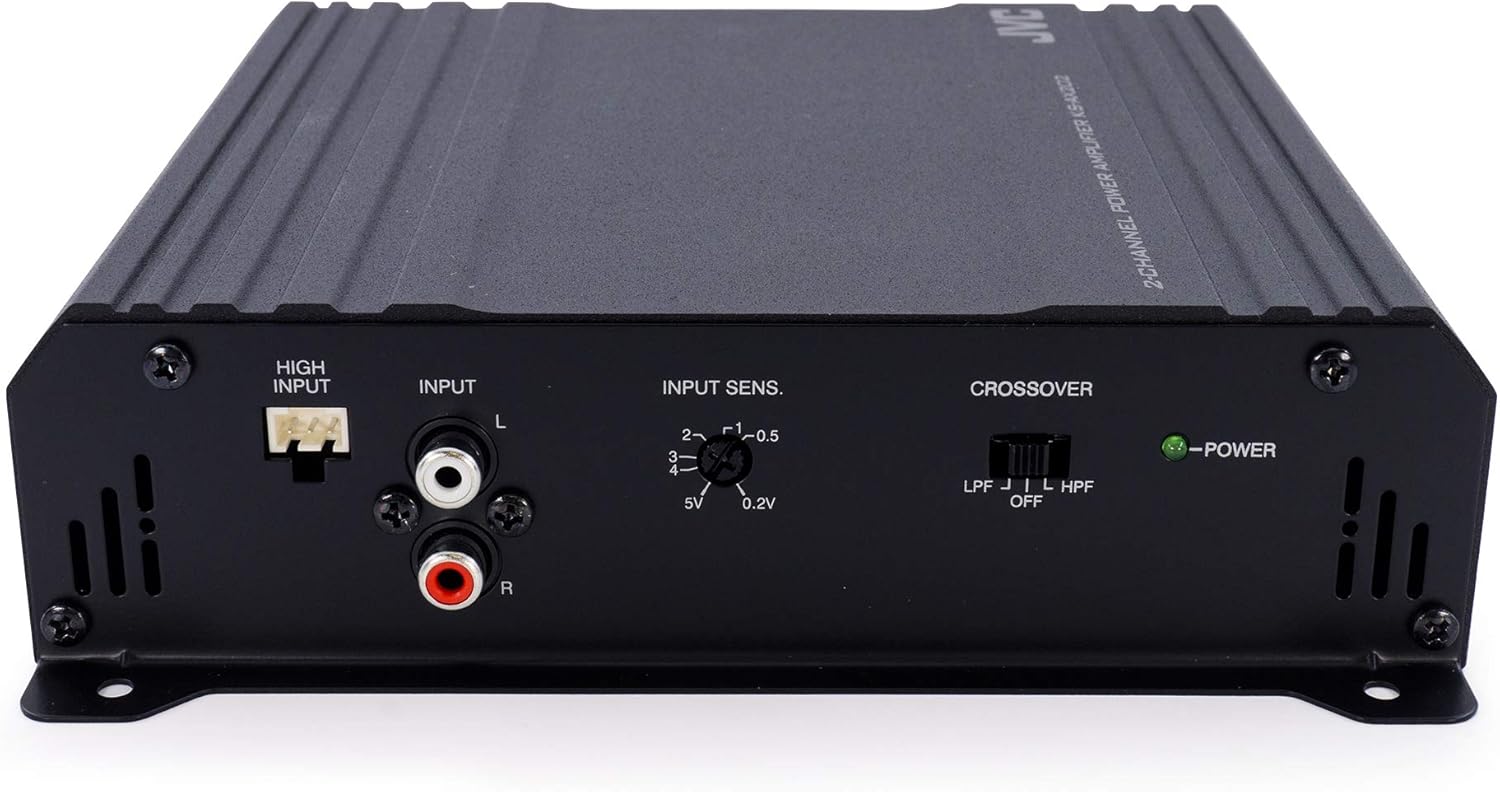

FLEXIBILITY - RCA inputs enable the amp to be installed with a headunit equipped with RCA preouts. Plus, there is a high-level input for connection to your factory radio without RCA preouts Enjoy flexible installation in a variety of systems
BASS BOOST CONTROL - With High and Low intensity level settings, you can set Bass Boost Control to apply the right level of bass reproduction for an type of music
Specifications
Brand
JVC
Model
KS-AX202
Class
AB
Channels
2
Maximum Power
300 Watts
RMS Power (4 ohms)
40W x 2
RMS Power (2 ohms)
60W x 2
RMS Power (Bridged, 4 ohms)
120W x 1
Inputs
RCA, High-Level
Bass Boost Control
High and Low settings
Protection
Thermal, Overload, Speaker Short
Dimensions

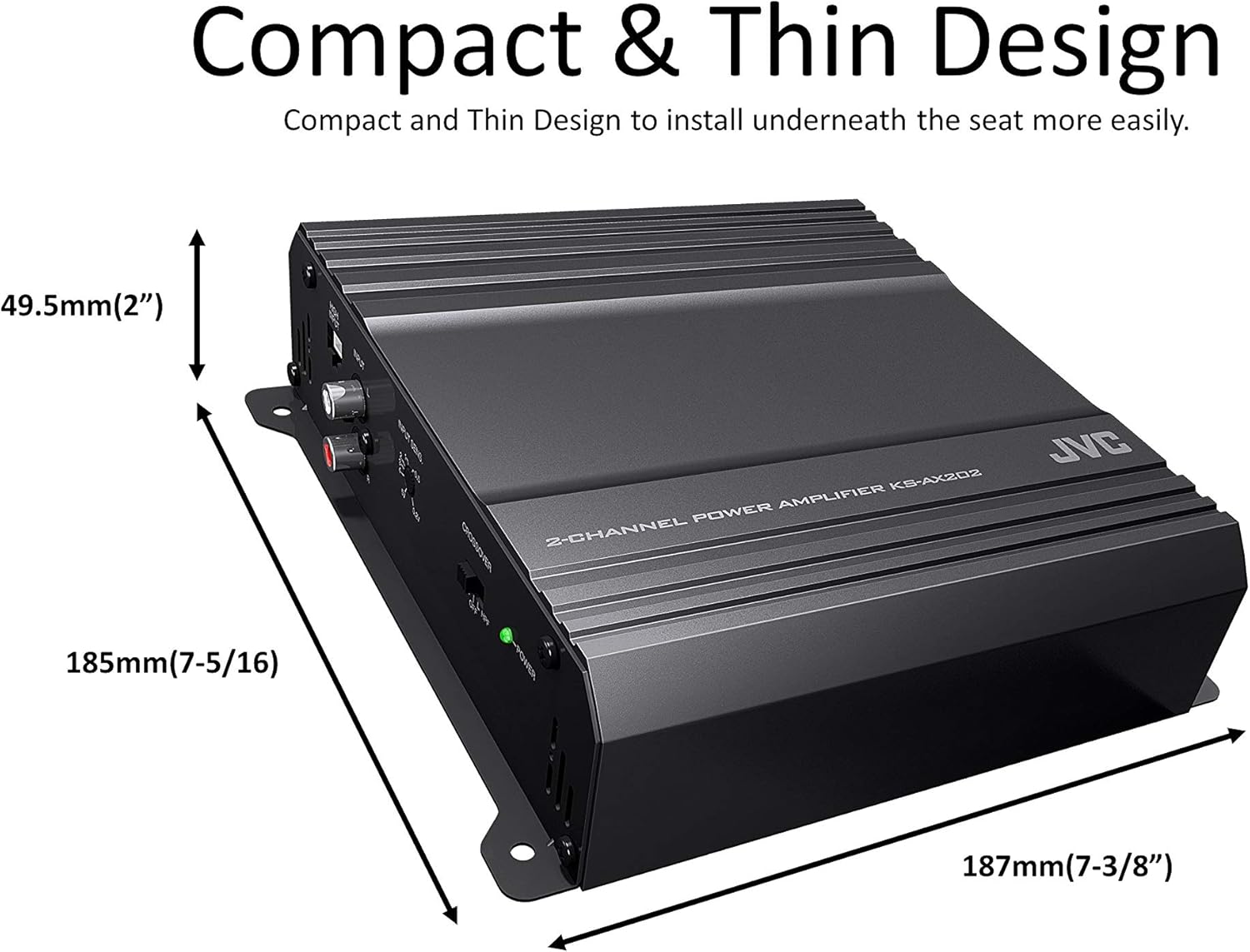

7.31 x 7.38 x 2 inches
Pros & Cons
👍 Pros
- Compact dimensions allow under-seat mounting for clean, hidden installations
- High-level inputs provide compatibility with factory head units lacking RCA preouts
- Triple protection circuit safeguards against thermal, overload, and short-circuit damage
- Adjustable bass boost control with high and low settings for tailoring low-end response
👎 Cons
- 300W maximum power is modest and may not satisfy listeners seeking high-output setups
- Only two channels limits expansion without adding a second amplifier
- RMS output of 40W per channel at 4 ohms is relatively low for demanding speaker configurations
- No built-in crossover beyond the bass boost, requiring an external crossover for more advanced setups
Frequently Asked Questions
Can this amplifier connect to a factory radio that doesn't have RCA outputs?
Yes, the KS-AX202 includes high-level inputs specifically for connecting to factory radios without RCA preouts.
What is the RMS power output of this amplifier?
At 4 ohms it delivers 40 watts per channel, at 2 ohms it delivers 60 watts per channel, and bridged at 4 ohms it produces 120 watts in mono.
Will this amplifier fit under a car seat?
Yes, it is designed with a compact form factor measuring 7.31 x 7.38 x 2 inches, making it suitable for under-seat installation.
What protections does the amplifier have against damage?
The KS-AX202 features JVC's triple protection circuit that guards against thermal overheating, electrical overload, and speaker short circuits.
Can this amplifier be bridged to power a single subwoofer?
Yes, it can be bridged to deliver 120 watts RMS into a single 4-ohm channel, which is suitable for powering a subwoofer.
