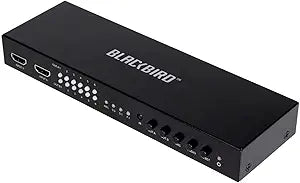

Monoprice 143395 Blackbird 4K 6x2 HDMI Matrix Audio
★★★★★
4K1080p
Effortlessly Manage Your HDMI Sources with the Monoprice Blackbird Matrix The Monoprice Blackbird 4K 6x2 HDMI Matrix allows you to route multiple HDMI sources to different displays with ease. Supporting up to 4K resolution and featuring audio extraction capabilities, this matrix is perfect for h...
$98.26*
Check availability
*Price sourced from Amazon.com. Last updated:Jul 14, 2026.Price and availability are subject to change.
Affiliate Disclosure: Studio Supplies may earn a commission from qualifying purchases made through links on this page, at no additional cost to you. This helps support our editorial team.
Notice a mistake? Let Us Know
Overview
Effortlessly Manage Your HDMI Sources with the Monoprice Blackbird Matrix
The Monoprice Blackbird 4K 6x2 HDMI Matrix allows you to route multiple HDMI sources to different displays with ease. Supporting up to 4K resolution and featuring audio extraction capabilities, this matrix is perfect for home theaters, conference rooms, and other AV setups.
Specifications:
- Inputs: 6 HDMI
- Outputs: 2 HDMI
- Resolution Support: Up to 4K@30Hz
- HDCP: 1.4
- Audio Output: 3.5mm, Digital Coaxial, Digital Optical (Toslink)
- ARC Support: Output A
- Features: Picture in Picture (PiP) mode
- Control: IR Remote Control
Key Features
Independently distributes up to six HDMI inputs to two HDMI outputs. Supports video resolutions up to 4K@30Hz, including 1080p@60Hz and 3D video.
9.0 Gbps video bandwidth. Supports up to 36 bit Deep Color. Supports HDCP 1.4. Includes analog 3.5mm stereo, digital coaxial, and digital optical (Toslink) audio outputs.
Output A supports the Audio Return Channel (ARC) HDMI feature. Supports the Consumer Electronics Control (CEC) HDMI feature.
Supports 2.0, 5.1, and 7.1 channel audio, including Dolby TrueHD and DTS HD Master Audio.
Supports a Picture in Picture (PiP) mode when the output resolution is 4K@30Hz. Includes an IR remote control.
Specifications
HDMI Inputs
6
HDMI Outputs
2
Max Video Resolution
4K@30Hz (also 1080p@60Hz, 3D video)
Video Bandwidth
9.0 Gbps
Deep Color Support
Up to 36 bit
HDCP Support
HDCP 1.4
Audio Outputs
Analog 3.5mm stereo, Digital Coaxial, Digital Optical (Toslink)
ARC Support
Yes (Output A)
CEC Support
Yes
Audio Channels
2.0, 5.1, 7.1 channel (including Dolby TrueHD, DTS HD Master Audio)
Special Features
Picture in Picture (PiP) mode (at 4K@30Hz)
Control Method
IR remote control
Pros & Cons
👍 Pros
- Independently distributes up to six HDMI inputs to two distinct HDMI outputs.
- Supports high video resolutions up to 4K@30Hz, including 1080p@60Hz and 3D video.
- Features a substantial 9.0 Gbps video bandwidth, ensuring smooth signal transmission.
- Supports up to 36-bit Deep Color, allowing for richer and more nuanced visual experiences.
- Equipped with analog 3.5mm stereo, digital coaxial, and digital optical (Toslink) audio outputs for flexible audio routing.
- Includes Audio Return Channel (ARC) support on Output A, simplifying audio connections to compatible displays.
- Supports Consumer Electronics Control (CEC) HDMI feature, enabling unified control of connected devices.
- Offers a Picture in Picture (PiP) mode when outputting at 4K@30Hz, enhancing multitasking possibilities.
- Comes with an IR remote control for convenient operation from a distance.
👎 Cons
- Supports 4K resolution only up to 30Hz, which may not be ideal for demanding gaming or high-frame-rate video content.
- HDCP 1.4 support is included, but not the newer HDCP 2.2, potentially limiting compatibility with some modern 4K content.
- Picture in Picture (PiP) mode is specifically available only when the output resolution is 4K@30Hz.
- No explicit mention of an on-device control panel, suggesting reliance on the IR remote or CEC.
Frequently Asked Questions
What is the maximum video resolution supported by the Monoprice Blackbird 4K HDMI Matrix?
The Monoprice Blackbird 4K 6x2 HDMI Matrix Audio supports video resolutions up to 4K@30Hz, including 1080p@60Hz and 3D video.
How many HDMI inputs and outputs does this matrix have?
This matrix independently distributes up to six HDMI inputs to two HDMI outputs, offering flexible signal management.
Does this device support ARC (Audio Return Channel)?
Yes, Output A of this Monoprice HDMI matrix supports the Audio Return Channel (ARC) HDMI feature, allowing audio to be sent back to a compatible receiver.
What audio formats are supported by this device?
This matrix supports 2.0, 5.1, and 7.1 channel audio, including high-definition formats like Dolby TrueHD and DTS HD Master Audio.
Is an IR remote control included with the Monoprice Blackbird matrix?
Yes, an IR remote control is included with the Monoprice Blackbird 4K 6x2 HDMI Matrix Audio for convenient operation.
Can this matrix display multiple sources simultaneously?
Yes, it supports a Picture in Picture (PiP) mode when the output resolution is 4K@30Hz, allowing for simultaneous viewing of multiple sources.
What digital and analog audio outputs are available on this matrix?
The device includes analog 3.5mm stereo, digital coaxial, and digital optical (Toslink) audio outputs for various audio connections.
