Novastar

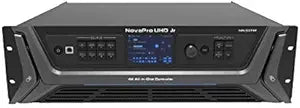

Novastar NovaPro UHD Jr/MCTRL4K LED Display Controller
UHDHDR
Next-Gen Video Processing with NovaStar All-in-One Series The NovaPro UHD Jr/MCTRL4K All-in-One Series offers cutting-edge video processing capabilities, designed for high-resolution LED displays. This series combines multiple functionalities into a single unit, simplifying setup and operation wh...
Check availability
Affiliate Disclosure: Studio Supplies may earn a commission from qualifying purchases made through links on this page, at no additional cost to you. This helps support our editorial team.
Notice a mistake? Let Us Know
Overview
Next-Gen Video Processing with NovaStar All-in-One Series
The NovaPro UHD Jr/MCTRL4K All-in-One Series offers cutting-edge video processing capabilities, designed for high-resolution LED displays. This series combines multiple functionalities into a single unit, simplifying setup and operation while delivering exceptional image quality and control. Perfect for large-scale events, broadcast studios, and fixed installations.
Key Features (JR Model):
- Inputs: 1 × DP 1.2, 4 × DVI, 1 × HDMI 2.0 (with loop output), 2 × 12G-SDI (with loop output)
- Outputs: 16 × Neutrik Ethernet, 4 × Optical Fiber
- Loading Capacity: Up to 10,400,000 pixels
- Maximum Resolution: 16K width, 8K height
- DVI Mosaic: Supports up to 4 DVI input sources combined
- HDR: Enhanced display image quality
- Frame Rates: Supports 23.98, 29.97, and 59.94 fps
- Low Latency: Reduced latency with NovaStar Armor series receiving cards
- Customized BKG: Supports pure color and image backgrounds
- Image Scaling: Full screen, pixel to pixel, custom
- Capture Function: Captures input source image for BKG use
- Image Mosaic: Up to 4 units can load a super-large screen
- Presets: 10 user presets
- EDID Management: Custom and standard EDID support
Key Features
HDMI, DP, DVI, 12G-SDI
10,400,000 pixels
2 layers+1 BKG
HDR, Low lantency
MCTRL4K all in one
Specifications
Model
NovaPro UHD Jr/MCTRL4K
Max Pixels Capacity
10,400,000 pixels
Supported Resolution
4K
Video Inputs
HDMI, DP, DVI, 12G-SDI
Features
HDR, Low Latency, 2 layers + 1 BKG
Type
All-in-one LED Display Controller
Pros & Cons
👍 Pros
- Supports high-resolution LED displays with a capacity of 10,400,000 pixels, ensuring sharp and detailed visuals.
- Features HDR (High Dynamic Range) support, enabling a wider range of colors and contrasts for a more vivid picture.
- Offers low latency, which is crucial for live events and applications where timing and synchronization are critical.
- Equipped with multiple input interfaces including HDMI, DisplayPort (DP), DVI, and 12G-SDI for broad compatibility with various video sources.
- The "MCTRL4K all in one" design streamlines setup and operation, integrating control features into a single unit.
👎 Cons
- Specific maximum refresh rate or frame rate support is not detailed, which could be important for high-motion content.
- The number of output ports for LED display panels is not specified, which affects the scale of displays it can drive.
- While it supports 2 layers + 1 BKG, more complex multi-layer or multi-window setups might require a different controller.
- The complexity of operation for an advanced device like this may require specialized knowledge or training.
- No mention of audio input/output capabilities, which could be a factor for integrated AV setups.
Frequently Asked Questions
What is the maximum pixel capacity this Novastar controller can handle?
The Novastar NovaPro UHD Jr/MCTRL4K LED display controller can handle up to 10,400,000 pixels, supporting large-scale LED displays.
Does this controller support HDR content?
Yes, this Novastar controller features HDR (High Dynamic Range) support, which enhances color depth and contrast for improved visual quality.
What video input types are available on this controller?
It offers multiple video input interfaces, including HDMI, DisplayPort (DP), DVI, and 12G-SDI, providing versatility for connecting various video sources.
Is this controller suitable for applications requiring quick response times?
Yes, the Novastar NovaPro UHD Jr/MCTRL4K is designed with low latency, making it ideal for live events and applications where minimal delay is crucial.
What does "2 layers + 1 BKG" mean for this display controller?
This feature indicates the controller can manage two independent video layers simultaneously, plus one background layer, allowing for flexible content arrangement on the LED display.
Is this a modular or an all-in-one controller?
This is an "MCTRL4K all in one" unit, meaning it integrates various control functionalities into a single, comprehensive device.
