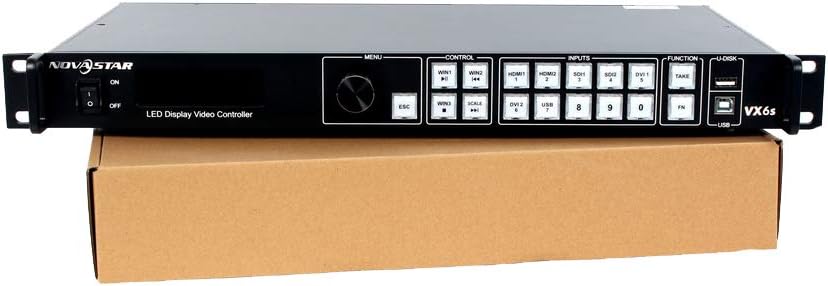

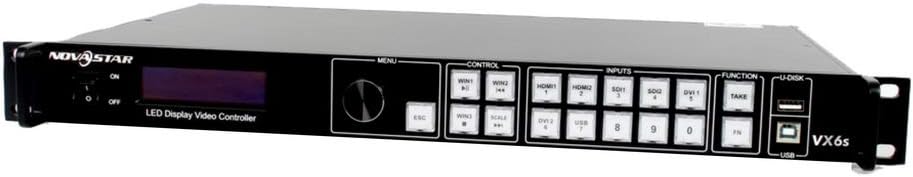

Novastar VX6s Video Processor All-in-One Controller SDI

Unleash Seamless Video Control with Novastar VX6s

The Novastar VX6s is an all-in-one video controller integrating sending card functionality with advanced video processing. Engineered with substantial video processing capabilities, it manages seven video inputs and six Gigabit Ethernet outputs efficiently. Leveraging a robust FPGA processing platform, the VX6s delivers diverse transition effects including quick seamless switching and fades, providing versatile display management and outstanding video presentations. The VX6s also features an expansion card slot for USB drive media playback with real-time monitoring via mouse and monitor. Software and instructions included.

Specifications:

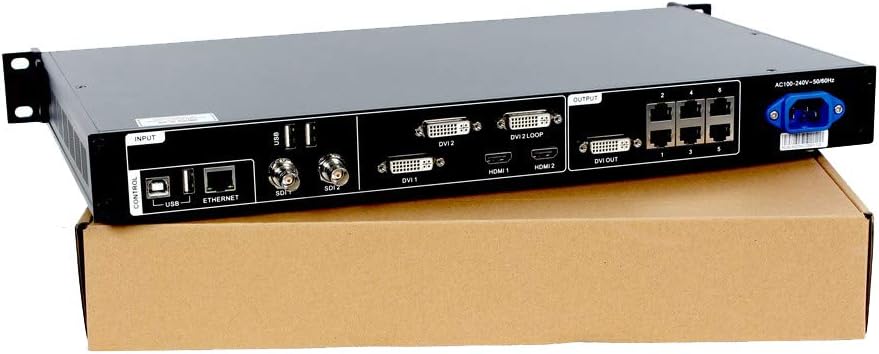

• Input Connectors: 2 × 3G-SDI, 2 × HDMI 1.3, 2 × DVI, 1 × DVI+DVI LOOP, 1 × USB playback
• Layers: Supports 3 × window and 1 × OSD
• Screen Configuration: Quick and advanced screen configurations supported
• Switching: PVW to PGM switching via TAKE button
• Input Resolutions: Adjustable input resolutions supported
• Redundancy: Device redundancy settings supported
• Loading Capacity: Maximum video output of 3.9 million pixels
• Brightness: Supports brightness adjustment
• Cascading: Multiple VX6s units can be cascaded
• Window Fitting: Auto fit function supported
• Max Output: Maximum video output width and height of 4096 pixels
• Presets: 16 user presets can be created and saved
• Synchronization: HDMI/DVI input source can be used for vertical synchronization
• Display: OLED screen with button indicators
• Input Resolution Support: Supports input resolutions up to 1920×1080@60Hz with downward compatibility
• De-interlacing: SDI 1 supports de-interlacing
