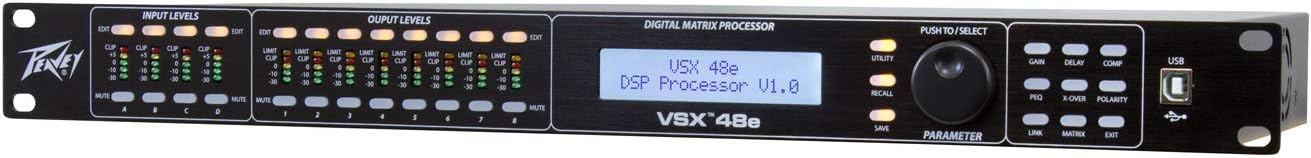

Peavey 4000130 VSX 48e DSP Loudspeaker Management System — main product image
Peavey 4000130 VSX 48e DSP Loudspeaker Management System
Peavey 4000130 VSX 48e DSP Loudspeaker Management System
Peavey 4000130 VSX 48e DSP Loudspeaker Management System
Peavey 4000130 VSX 48e DSP Loudspeaker Management System
Peavey

Peavey 4000130 VSX 48e DSP Loudspeaker Management System

★★★★★4.1 (8 reviews)
XLR

The Peavey VSX 48e delivers precise DSP loudspeaker management with 4 inputs, 8 outputs, and 96kHz processing.

Check availability
Affiliate Disclosure: Studio Supplies may earn a commission from qualifying purchases made through links on this page, at no additional cost to you. This helps support our editorial team.

Notice a mistake? Let Us Know

Overview

The Peavey VSX 48e is a rack-mountable DSP loudspeaker management system designed for professional sound reinforcement applications. It provides four XLR balanced inputs and eight XLR balanced outputs, all rated at a maximum level of +20 dBu, enabling engineers to configure multi-way crossover networks, zone routing, and speaker processing from a single unit. Operating at a 96kHz sample rate, the VSX 48e handles crossover filtering, parametric EQ, signal delay, and output limiting with high-resolution precision across a frequency response of 20 Hz to 20 kHz (+0, -1 dB).

Monitoring is handled through 5-segment LED meters with limit indication on each of the eight outputs, providing at-a-glance status without requiring a connected computer. When deeper configuration is needed, the VSX 48e connects via USB or Ethernet for remote setup and real-time parameter adjustment from a laptop running Peavey's control software. This dual-connectivity approach makes it practical for both installed systems where Ethernet runs to a control room and portable rigs where a direct USB connection is more convenient. The VSX 48e fits into standard 19-inch racks and is built for the demands of touring and installed professional audio environments.

Key Features

Balanced Inputs: VSX 48e 4

4 XLR balanced inputs and 8 XLR balanced outputs VSXe 48

Maximum input and output level +20 dBu, XLR balanced inputs and outputs

Frequency response 20 Hz to 20 kHz +0, -1 dB

5 segment LED meters with limit indication on each output

Specifications

Brand
Peavey
Model
VSX 48e (4000130)
Inputs
4 XLR balanced
Outputs
8 XLR balanced
Maximum Input/Output Level
+20 dBu
Frequency Response
20 Hz to 20 kHz (+0, -1 dB)
Sample Rate
96kHz
Metering
5-segment LED with limit indication per output
Connectivity
USB, Ethernet

Pros & Cons

👍 Pros

  • 96kHz sample rate provides high-resolution audio processing for crossovers, EQ, and dynamics
  • 4-in by 8-out configuration handles complex multi-way and multi-zone speaker setups
  • Both USB and Ethernet connectivity allow flexible remote configuration from a laptop
  • Front-panel 5-segment LED meters on every output give immediate visual monitoring without software
  • +20 dBu maximum level provides generous headroom for professional sound reinforcement

👎 Cons

  • The 4-input limit may be insufficient for larger systems requiring more source feeds
  • The front-panel interface can feel limited for complex configurations without connecting to software
  • Rack-mount form factor and weight make it less suited for small portable rigs
  • Feature set may be basic compared to competing DSP processors with FIR filtering or advanced networking
  • Firmware updates and software compatibility may lag behind more frequently updated competitors

Frequently Asked Questions

It offers 4 XLR balanced inputs and 8 XLR balanced outputs, allowing flexible routing configurations for multi-way speaker systems and zone management.
Yes, it supports remote setup and control via both USB and Ethernet connectivity, enabling engineers to adjust settings from a laptop without accessing the rack.
The maximum input and output level is +20 dBu on all balanced XLR connections, providing ample headroom for professional sound reinforcement applications.
It processes audio at 96kHz, delivering high-resolution DSP performance for crossover filtering, EQ, delay, and limiting functions.
Each of the 8 outputs has a 5-segment LED meter with limit indication, giving quick visual feedback on signal levels and limiter engagement directly from the front panel.
