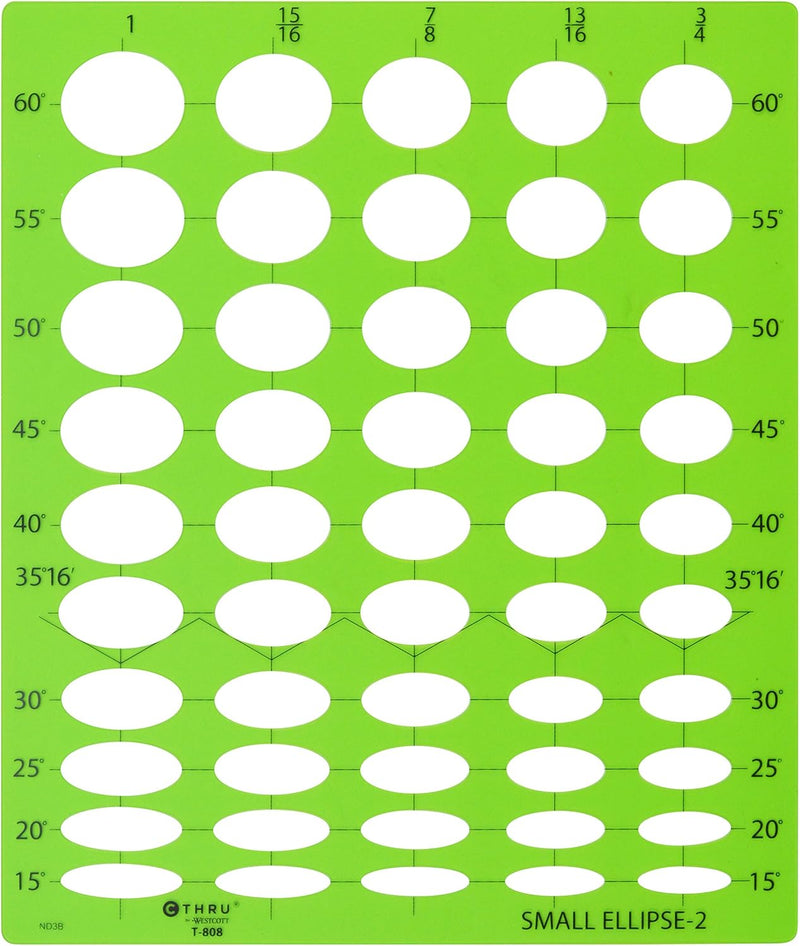

Westcott T-808 Small Ellipse Template Drafting Tool
★★★★★
Achieve Precision with Every Stroke: Westcott Small Ellipse Template #2Westcott products are known for their commitment to innovative designs, combining style and high-quality craftsmanship across a wide range of school, craft, and office essentials. A multiple award-winner, Westcott constantly s...
$11.99*
Check availability
*Price sourced from Amazon.com. Last updated:Jul 14, 2026.Price and availability are subject to change.
Affiliate Disclosure: Studio Supplies may earn a commission from qualifying purchases made through links on this page, at no additional cost to you. This helps support our editorial team.
Notice a mistake? Let Us Know
Overview

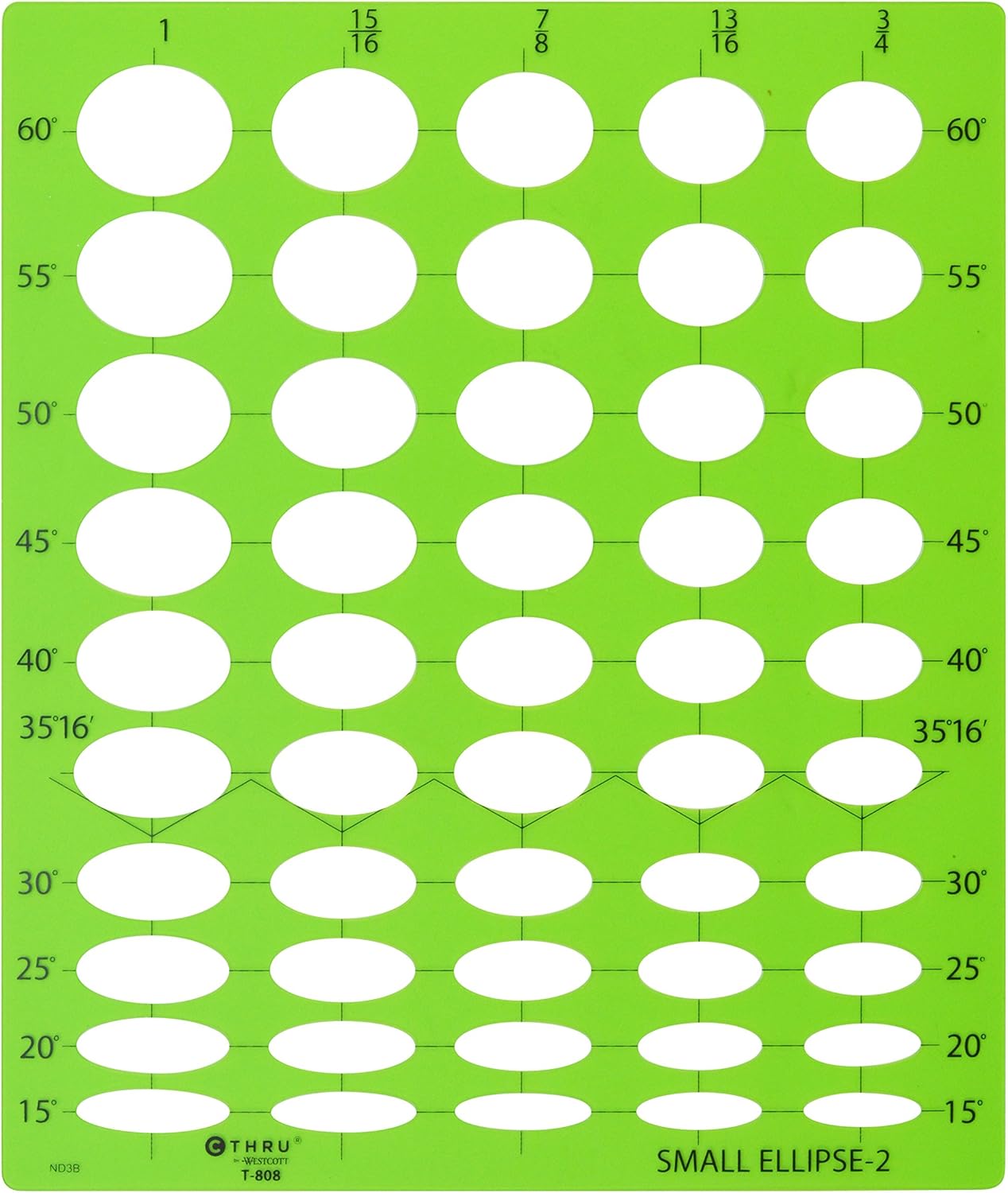

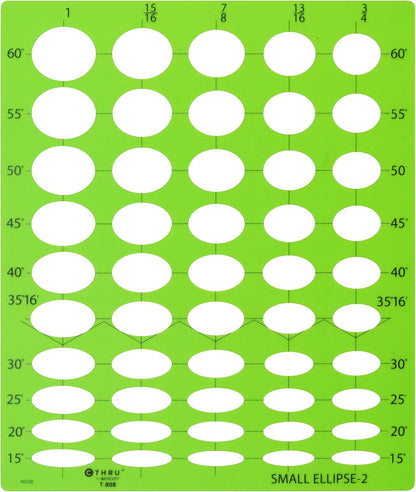

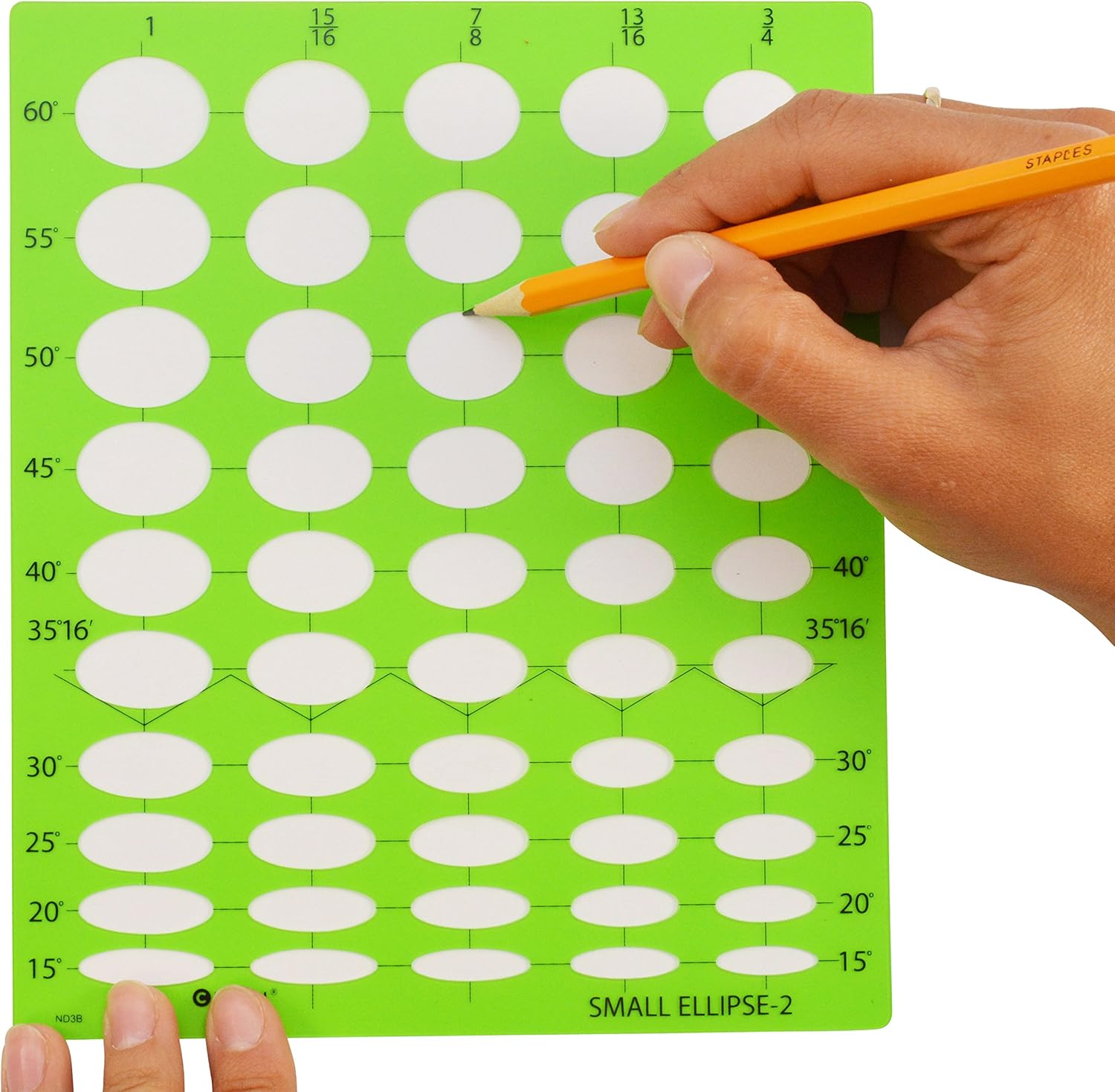

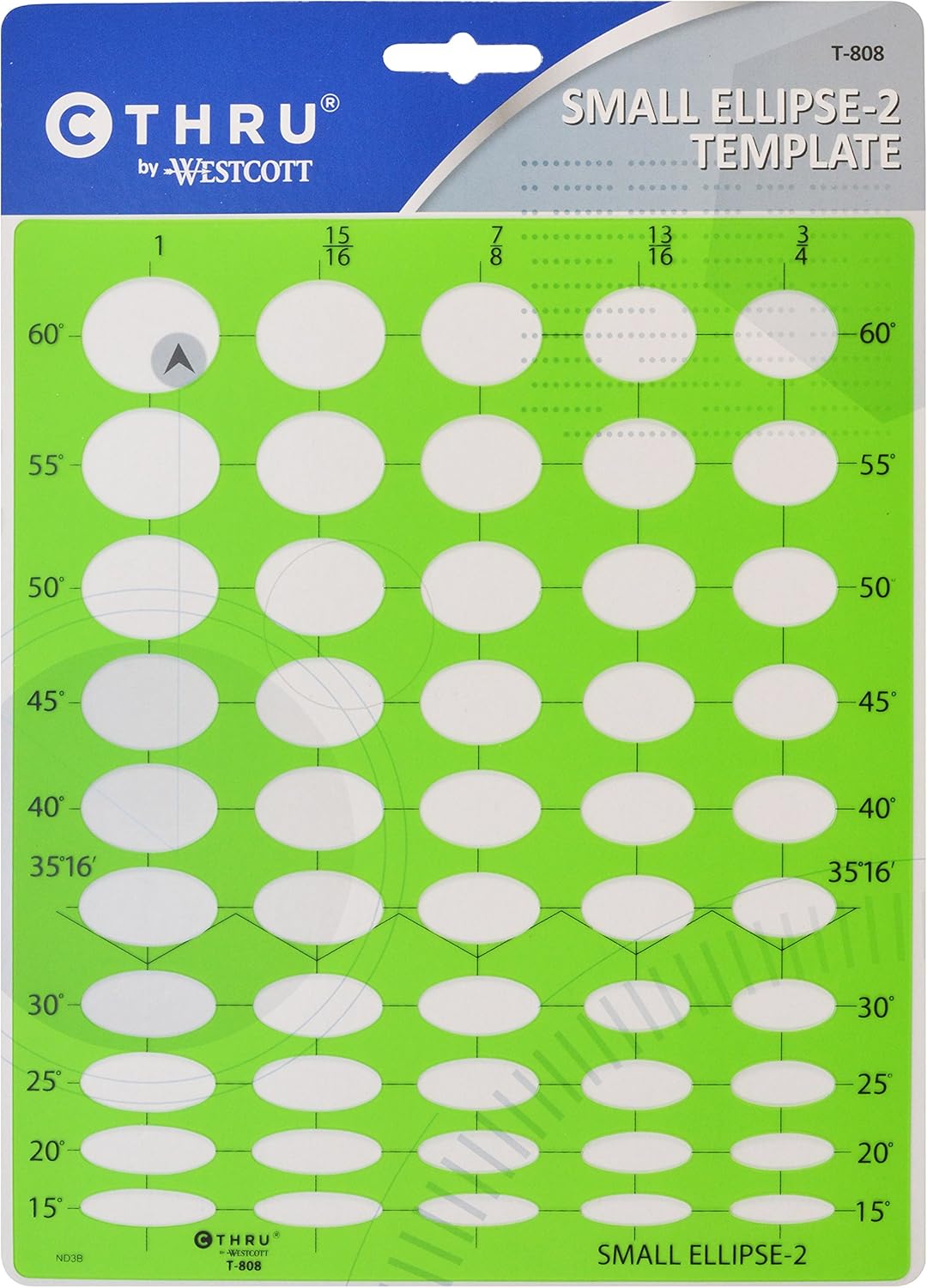

Achieve Precision with Every Stroke: Westcott Small Ellipse Template #2
Westcott products are known for their commitment to innovative designs, combining style and high-quality craftsmanship across a wide range of school, craft, and office essentials. A multiple award-winner, Westcott constantly sets a higher standard for quality and performance. This small ellipse template offers projections from 15° to 60° in 5° increments, empowering you to achieve unparalleled precision in your technical drawings and designs.
- Ellipse Projections: 15° to 60° in 5° increments
- Material: Durable Plastic
- Product Dimensions: 10 x 7.13 x 0.2 inches
- Item Weight: 0.639 ounces
Key Features
Small ellipse offer 15˚ to 60˚ projections in 5˚ increments
Large ellipse offer 15˚, 30˚, 35˚, 45˚ and 60˚projections in ¼" increments
Commonly used circle diameters
Center lines provided
Specifications
Product Type
Drafting Tool
Shape Projections (Small Ellipse)
15˚ to 60˚ in 5˚ increments
Shape Projections (Large Ellipse)
15˚, 30˚, 35˚, 45˚, 60˚ in ¼" increments
Included Shapes
Commonly used circle diameters
Alignment Features
Center lines provided
Pros & Cons
👍 Pros
- Offers 15˚ to 60˚ projections in 5˚ increments for small ellipses, providing precision for detailed drafting.
- Includes larger ellipses with 15˚, 30˚, 35˚, 45˚, and 60˚ projections in ¼" increments for various drawing needs.
- Features commonly used circle diameters, simplifying the process of drawing standard circles.
- Equipped with center lines, aiding in accurate placement and alignment of ellipses and circles.
- The template provides a comprehensive set of elliptical and circular shapes in a single tool for draftsmen and artists.
👎 Cons
- The product is described as a "Small Ellipse Template," which might imply limitations for very large-scale drafting projects.
- Details regarding the material composition or thickness of the template are not provided, impacting durability assessment.
- Specific dimensions of the template itself are not listed, making it hard to gauge its physical size on a workspace.
- The template does not specify compatibility with specific pencil sizes, which could affect drawing precision.
- Information on whether the template is anti-glare or has raised edges to prevent ink smudging is not mentioned.
Frequently Asked Questions
What projections are offered by the small ellipses on this drafting tool?
The small ellipses on the Westcott T-808 Small Ellipse Template offer projections ranging from 15° to 60° in 5° increments.
What projections are available for the large ellipses on this template?
The large ellipses provide 15°, 30°, 35°, 45°, and 60° projections, offered in ¼" increments.
Does this template include common circle diameters?
Yes, the Westcott T-808 template includes commonly used circle diameters, useful for various drafting tasks.
Are there any alignment aids on this drafting tool?
Yes, center lines are provided on the template, assisting users with precise placement and alignment of shapes.
Who would find this ellipse template most useful?
This drafting tool would be most useful for students, architects, engineers, or artists who require precise and consistent drawing of ellipses and circles in their work.
