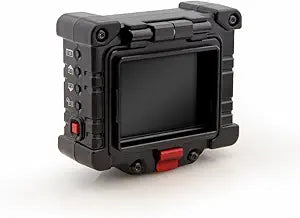

Zacuto Z-EVF-1F EVF Flip-Up View Finder
★★★★★
Precision Monitoring with Flexible ViewingThe Zacuto Z-EVF-1F Electronic View Finder delivers a high-resolution monitoring solution for filmmakers. Its flip-up design allows for quick switching between viewfinder and monitor modes, offering versatility and convenience on set. Specifications: Br...
Check availability
Affiliate Disclosure: Studio Supplies may earn a commission from qualifying purchases made through links on this page, at no additional cost to you. This helps support our editorial team.
Notice a mistake? Let Us Know
Overview
Precision Monitoring with Flexible Viewing
The Zacuto Z-EVF-1F Electronic View Finder delivers a high-resolution monitoring solution for filmmakers. Its flip-up design allows for quick switching between viewfinder and monitor modes, offering versatility and convenience on set.
Specifications:
- Brand: Zacuto
- Model: Z-EVF-1F
- Display Size: 3.2"
- Resolution: 800 x 480
- Compatibility: Cameras with HDMI output (e.g., Canon HDSLR, Panasonic AF-100, Sony F3)
- Power: LP-E6 style battery (included)
- Battery Life: 5.2 hours
- Ports: HDMI type 'A' in, HDMI type 'A' loop out
Key Features
Exposure Assist- Zebra stripes indicate a user settable IRE level; 2 separate levels can be set. For example: one can be set for 55 IRE, which approximates properly exposed skin tone while the other IRE can be set at 100 to indicate pure white and the point just before over exposed signal clipping
Focus Assist- Peaking: Focus Assist enhances edge sharpening making in focus objects stand out. This makes critical focus immediately easier to see
Blue Only: Blue only gives you the ability to view the blue channel only. This is a professional feature used while viewing SMPTE color bars for monitor calibration
Anamorphic: The anamorphic setting will "un-squeeze" the anamorphic image produced by the anamorphic lens for viewing in the EVF
Frame Line Generators: The aspect ratio frame lines included are, 1.33:1 (4x3), 1.66:1 (15x9), 1.78:1 (16x9), 1.85:1 (35mm theatrical), 2.35:1 (Cinemascope) and a "rule of thirds" grid
Specifications
Product Type
EVF Flip-Up View Finder
Exposure Assist
Zebra stripes (2 settable IRE levels)
Focus Assist
Peaking
Calibration Feature
Blue Only mode
Anamorphic De-squeeze
Yes
Frame Line Generators
1.33:1, 1.66:1, 1.78:1, 1.85:1, 2.35:1, Rule of Thirds
Brand
Zacuto
Pros & Cons
👍 Pros
- Features Exposure Assist with settable zebra stripes, aiding in precise light exposure control.
- Includes Focus Assist (Peaking) to enhance edge sharpening, making critical focus easier to achieve.
- Offers a Blue Only display mode, a professional feature for accurate monitor calibration using SMPTE color bars.
- The Anamorphic setting correctly "un-squeezes" anamorphic images for proper viewing in the EVF.
- Equipped with multiple aspect ratio frame line generators, including 1.33:1, 1.78:1, and 2.35:1, for diverse framing needs.
👎 Cons
- The Zacuto Z-EVF-1F EVF is a specialized piece of equipment, potentially making it complex for beginners.
- As an external view finder, it adds another component to a camera rig, potentially increasing setup time and weight.
- Users will need to ensure compatibility with their specific camera setup for optimal integration and functionality.
- The "Flip-Up" design, while convenient, introduces a mechanical point that could be a potential wear concern over time.
Frequently Asked Questions
What is the primary function of the Exposure Assist feature on the Zacuto Z-EVF-1F?
The Exposure Assist uses zebra stripes to indicate user-settable IRE levels, allowing videographers to accurately judge exposure and prevent signal clipping.
How does the Focus Assist (Peaking) help with achieving sharp focus?
Focus Assist enhances edge sharpening, making in-focus objects visibly stand out on the viewfinder display, which simplifies critical focus adjustments.
What is the purpose of the Blue Only mode on this EVF?
The Blue Only mode allows viewing of only the blue channel, which is a professional tool for calibrating monitors using SMPTE color bars to ensure accurate color reproduction.
Can the Zacuto Z-EVF-1F correct the aspect ratio of anamorphic footage?
Yes, the anamorphic setting is designed to "un-squeeze" the image from an anamorphic lens, providing a correctly proportioned view within the EVF.
What types of frame lines are available with this view finder?
The Z-EVF-1F includes aspect ratio frame lines such as 1.33:1 (4x3), 1.66:1 (15x9), 1.78:1 (16x9), 1.85:1 (35mm theatrical), 2.35:1 (Cinemascope), and a "rule of thirds" grid.
