3D V-Cache is AMD's technology for stacking extra L3 cache directly on top of a CPU's compute die using thousands of microscopic vertical connections. The result is a much larger, low-latency cache pool — and because games depend on cache hit rate more than almost any other workload, that extra cache delivers some of the largest real-world gaming gains a CPU can offer.
How 3D V-Cache Is Built

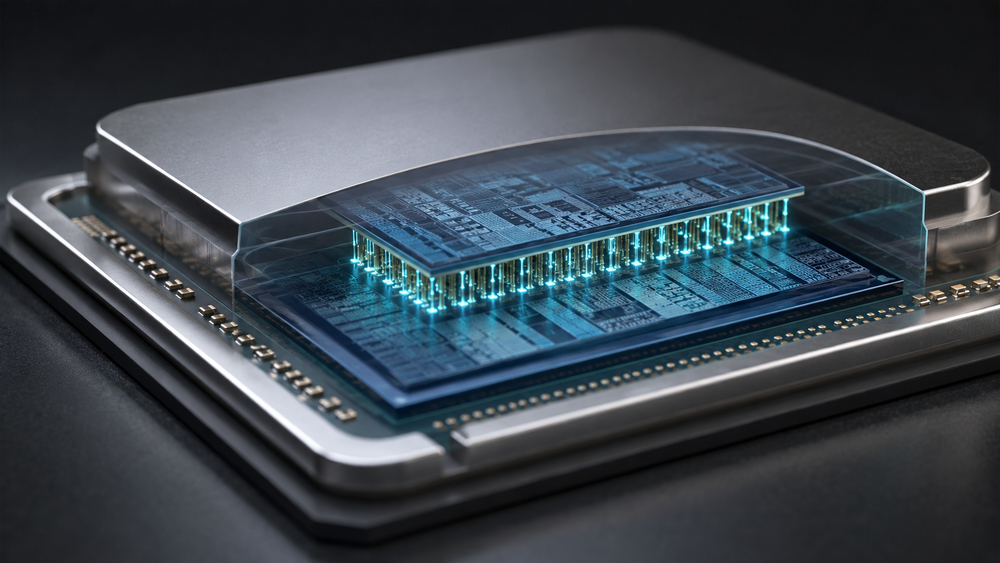

Conventional CPUs place their cache and compute logic side by side on the same die, connected by on-chip wiring that is fast but limited by how much cache fits in the available die area. 3D V-Cache instead bonds a separate, thinned-down cache die directly on top of the compute die using through-silicon vias — thousands of microscopic vertical connections that let the two layers communicate almost as if they were one piece of silicon. That stacking adds a large block of extra L3 cache without growing the chip's footprint on the motherboard, and because the connection is so short and direct, the added cache behaves almost like an extension of the die's native cache rather than a separate, slower tier.
Why Cache Matters More for Games Than Other Workloads
Every time a CPU needs data that isn't already sitting in its cache, it has to fetch it from system RAM — a trip that takes roughly ten times longer than a cache hit. Games are unusually sensitive to this because so much of what a game engine touches each frame — object states, physics data, draw calls — is reused constantly in ways that are hard to predict and parallelize across many cores. A bigger cache means more of that data stays close to the CPU, avoiding costly round trips to memory on the latency-sensitive path that determines frame time. Productivity workloads like video rendering or code compilation, by contrast, tend to be more embarrassingly parallel and throughput-bound — they scale well by adding cores and clock speed, and benefit comparatively little from extra cache. That split is exactly why 3D V-Cache chips post outsized gaming benchmarks while looking merely competitive, sometimes even behind non-X3D siblings, in heavily multi-threaded productivity tasks.
The Ryzen 7 9800X3D: What Changed From Earlier X3D Chips
The AMD Ryzen 7 9800X3D is AMD's current flagship gaming processor and the clearest example of how the technology has matured. The first X3D chips, including the original Ryzen 7 5800X3D, stacked the cache die on top of the compute die in a way that trapped heat and limited how much voltage and clock speed the chip could safely run — those early X3D chips notably ran at lower boost clocks than their non-X3D counterparts, and manual overclocking was disabled outright. Starting with the Ryzen 7000-series X3D chips and refined further in the 9800X3D, AMD moved the cache die underneath the compute die instead of on top of it, letting heat reach the heat spreader more directly. That change let the 9800X3D hold higher boost clocks than the earlier Ryzen 7 7800X3D while carrying the same large-cache gaming advantage, and it restored overclocking headroom that the first X3D generation didn't have. The 9800X3D tracks at $444.99 with a 4.7-star rating, ahead of the 7800X3D's $347.79 at a 4.9-star rating — both strong performers, with the 9800X3D representing the newer architecture and higher clock ceiling.
Is the Extra Cost Worth It Over a Regular Ryzen Chip?
For a machine built primarily for gaming, 3D V-Cache chips consistently post the best frame rates in AMD's current lineup, often ahead of non-X3D chips with higher rated clock speeds, because the games themselves are usually more limited by cache misses than by raw clock speed. For mixed-use builds — heavy video editing, 3D rendering, or compiling code alongside gaming — a non-X3D chip with more cores or a higher sustained clock can be the better value, since those workloads lean on core count and throughput rather than cache hit rate. The honest rule of thumb: buy X3D specifically for gaming-first builds, and price it against a standard Ryzen chip of similar core count for anything more workload-mixed.
Building a Platform Around an X3D Chip
Every current X3D chip, including the 9800X3D, uses AMD's AM5 socket and requires DDR5 memory — there is no X3D option on the older AM4 platform. A board built for the platform's full I/O and power headroom, like the MSI MPG X870E Carbon WiFi, gives an X3D chip the VRM stability and memory support it needs to run at its rated boost clocks consistently. For a full breakdown of what separates AM4 from AM5 and which chips fit where, see our AMD socket guide; AM5 boards also bring PCIe 5.0 to the table, covered in our PCIe generation comparison.
Frequently Asked Questions
Does 3D V-Cache work with every game?
Nearly all games benefit to some degree, since almost every game engine relies on frequently-reused data that a larger cache helps keep close to the CPU. The size of the gain varies by title — some see a modest few percent, others see a much larger jump — depending on how cache-sensitive that particular engine is.
Is 3D V-Cache only useful for gaming?
It helps most in gaming specifically because games are unusually latency-sensitive and hard to fully parallelize. Some other latency-sensitive workloads, like certain simulation software, see gains too, but heavily multi-threaded, throughput-bound tasks generally do not benefit as much.
Can I overclock a Ryzen X3D chip?
The first-generation X3D chips (5000-series) disabled manual core overclocking due to thermal limits from the top-stacked cache design. Starting with the 7000-series X3D lineup and continuing with the 9800X3D, AMD restored overclocking support after moving the cache die underneath the compute die.
Do I need a special motherboard for an X3D CPU?
Any AM5 motherboard supports X3D chips, since they use the same socket and DDR5 memory as standard Ryzen 7000/9000 chips. A higher-tier board with stronger VRMs simply gives more headroom for the chip to sustain its rated boost clocks under load.
