NVMe (Non-Volatile Memory Express) is the communication protocol built specifically for flash storage to talk directly to the CPU over PCIe lanes, with massive parallel command queues designed for how SSDs actually work. It replaced AHCI (Advanced Host Controller Interface), a protocol designed years earlier for spinning hard drives that became a bottleneck the moment SSDs got fast enough to expose its limits. AHCI did not disappear — it is still what SATA SSDs and hard drives use — but NVMe is now the standard for any drive that plugs into a modern M.2 slot.
AHCI: Built for a World of Spinning Platters
AHCI was standardized in the mid-2000s around the physical reality of hard drives: a spinning platter and a moving read/write head with real mechanical seek time between requests. Its command queue depth — the number of read/write requests it can have outstanding at once — tops out at 32, in a single queue. That was more than enough headroom for a mechanical drive that could only physically service one seek at a time anyway. AHCI simply was never designed to expect a storage device capable of responding to thousands of requests simultaneously with no moving parts at all.
NVMe: Designed for Flash From the Ground Up
NVMe throws out AHCI's assumptions entirely. Instead of one queue holding 32 commands, NVMe supports up to 65,535 queues, each holding up to 65,535 commands — numbers that make sense once you remember flash memory has no seek time and can genuinely service many requests in parallel across its internal chips. NVMe also communicates over PCIe lanes running straight to the CPU, rather than through a SATA controller and cable, cutting out layers of protocol translation that AHCI needed to work over the older SATA link. The combined result is dramatically lower latency and vastly higher throughput ceiling than AHCI could ever deliver, even on the same underlying flash memory.
NVMe vs SATA/AHCI in Practice
The real-world gap is large. A SATA SSD running AHCI is capped by the SATA III interface itself at roughly 550 MB/s, regardless of how fast the flash inside it could theoretically go. An NVMe drive on a PCIe Gen3 x4 link can reach roughly 3,500 MB/s, and a current PCIe Gen4 NVMe drive can reach roughly 7,000 MB/s — more than ten times the SATA ceiling. That gap shows up most in large file transfers, game and application load times, and any workload that reads or writes many files at once, less so in everyday web browsing or document work where the drive is rarely the bottleneck.
M.2 Is a Slot, Not a Protocol

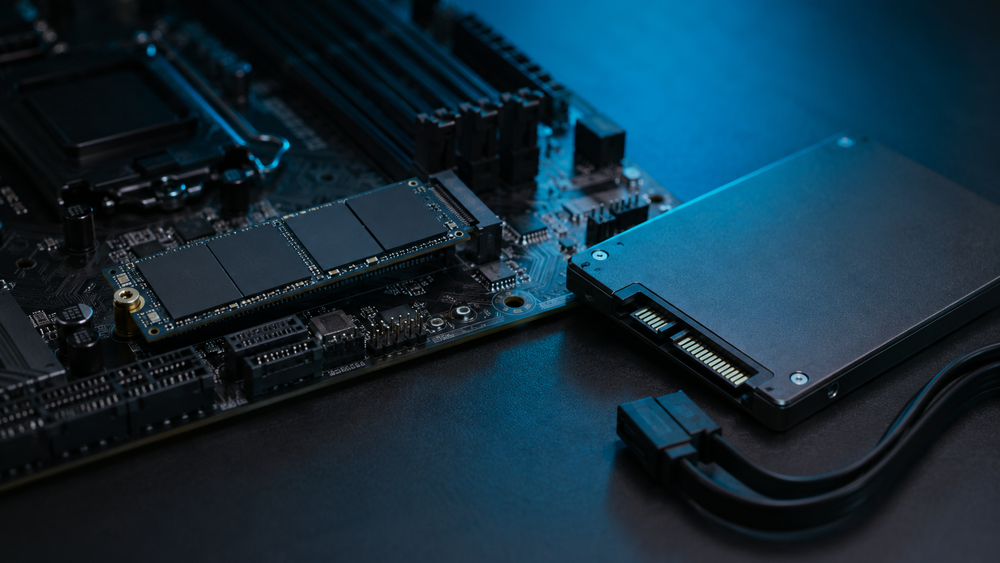

A common point of confusion: M.2 describes a physical connector shape, not a speed or protocol by itself. An M.2 slot can carry either a SATA-protocol SSD (running AHCI, capped at SATA speeds) or an NVMe-protocol SSD (running over PCIe, much faster), and the two are not interchangeable in every slot — some M.2 slots only support one or the other. Before buying an M.2 drive, it is worth confirming both the slot's supported protocol and its PCIe generation, since a Gen4 drive dropped into a Gen3-only slot will simply run at Gen3 speeds rather than failing outright.
Product Examples
Current NVMe drives span a wide range of capacity and generation. The Crucial P310 1TB Gen4 NVMe SSD and the smaller Crucial P310 500GB Gen4 NVMe SSD both target the current PCIe Gen4 ceiling as a primary boot and application drive, while the WD Blue SN580 1TB NVMe SSD is a widely-reviewed Gen4 option built around everyday desktop and laptop upgrades rather than workstation-class throughput.
Do You Need NVMe?
For a boot drive or anything running the operating system and applications, yes — the difference in day-to-day responsiveness between a SATA SSD and an NVMe drive is real and noticeable, and current NVMe drives are frequently priced close to SATA SSDs of the same capacity. For bulk archival storage where sustained sequential speed matters less than raw capacity per dollar, a SATA SSD or hard drive running AHCI remains a perfectly reasonable and often cheaper choice; AHCI is not obsolete, it simply moved to a supporting role. For installation guidance once you've picked a drive, see our NVMe install guide and the head-to-head numbers in our NVMe vs SATA performance guide.
Frequently Asked Questions
Is NVMe always faster than SATA SSD?
Yes, on throughput ceiling — NVMe's PCIe interface has far more available bandwidth than the SATA III interface, regardless of which specific drives are compared.
Can I put an NVMe drive in any M.2 slot?
Only if that specific M.2 slot supports NVMe (PCIe) mode; some older or budget boards have M.2 slots wired only for SATA-protocol drives. Check the motherboard manual before buying.
Is AHCI obsolete?
No. AHCI is still the standard protocol for SATA SSDs and hard drives, both of which remain common for secondary and bulk storage. It is only obsolete as a boot-drive protocol next to NVMe.
Does NVMe Gen4 need a specific motherboard?
The M.2 slot and chipset need to support PCIe Gen4 to get Gen4 speeds; a Gen4 NVMe drive is backward compatible with a Gen3 slot but will run at Gen3 speeds. Our PCIe generation guide covers what to check before buying.
