AMD

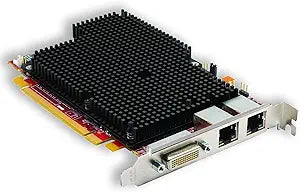

AMD 100-505597 ATI FirePro RG220 Remote Workstation Graphics

Name: AMD 100-505597 ATI FirePro RG220 Remote Workstation Graphics
Brand: AMD
SKU: 100-505597

1920 x 1200

Enhance Your Remote Workstation Performance The ATI FirePro RG220 Remote Workstation Graphics Card provides a reliable solution for remote workstation graphics. With 512MB of memory and PCI-Express connectivity, this video card is designed to deliver stable and efficient performance for professi...

Check availability

Affiliate Disclosure: Studio Supplies may earn a commission from qualifying purchases made through links on this page, at no additional cost to you. This helps support our editorial team.

Notice a mistake? Let Us Know

Overview

Enhance Your Remote Workstation Performance

The ATI FirePro RG220 Remote Workstation Graphics Card provides a reliable solution for remote workstation graphics. With 512MB of memory and PCI-Express connectivity, this video card is designed to deliver stable and efficient performance for professional applications. This retail package ensures you receive a complete and ready-to-install graphics solution for your remote workstation needs.

Specifications:

* Graphics: ATI FirePro RG220 * Memory: 512MB * Interface: PCI-Express * Packaging: Retail

Key Features

Local Cloning of Remote Output Stackable Option Flexible Output Configurations Unified Driver Architecture Passive Cooling

512 MB On-board Graphics Memory Low power consumption Direct Mapping Support

Chipset: FirePro RG220 Video Memory: 512MB DDR3

Bus: PCI Express 2.0 x16 Max. Resolution: 1920 x 1200

Connectors: Dual Ethernet ports plus DMS-59 (Support Dual DVI-D) Thermal: Heatsink Low Power Design: Yes DirectX 10.1 and OpenGL 2.1 support

Specifications

Chipset

FirePro RG220

Video Memory

512MB DDR3

Bus Type

PCI Express 2.0 x16

Max Resolution

1920 x 1200

Connectors

Dual Ethernet ports, DMS-59 (Support Dual DVI-D)

Thermal Solution

Heatsink (Passive Cooling)

Power Consumption

Low

API Support

DirectX 10.1, OpenGL 2.1

Frequently Asked Questions

What is the video memory capacity of the AMD ATI FirePro RG220 graphics card?

The AMD ATI FirePro RG220 graphics card comes with 512 MB of on-board DDR3 graphics memory.

What is the maximum display resolution supported by this graphics card?

This graphics card supports a maximum resolution of 1920 x 1200, suitable for standard high-definition displays.

Does the ATI FirePro RG220 use active or passive cooling?

The ATI FirePro RG220 features passive cooling with a heatsink, which allows for quieter operation.

What kind of bus interface does this graphics card utilize?

It uses a PCI Express 2.0 x16 bus interface for connecting to the motherboard.

What types of connectors are available for display output?

The card includes Dual Ethernet ports and a DMS-59 connector, which supports Dual DVI-D outputs.

Does this graphics card support modern DirectX versions?

The AMD ATI FirePro RG220 supports DirectX 10.1 and OpenGL 2.1, which are older versions of these graphics APIs.

Is this graphics card designed for remote workstation use?

Yes, it is specifically designed as a Remote Workstation Graphics card, offering features like local cloning of remote output.

What Buyers Say

👍 Pros

Features a low power consumption design, contributing to energy efficiency in workstation setups.
Equipped with 512 MB of on-board graphics memory (DDR3), supporting display requirements for remote workstation applications.
Supports flexible output configurations with Dual Ethernet ports and DMS-59, allowing for versatile display connectivity.
Utilizes a passive cooling system, which can result in quieter operation compared to actively cooled cards.
Designed with a Unified Driver Architecture, simplifying driver management and system integration.
Supports DirectX 10.1 and OpenGL 2.1, ensuring compatibility with a range of professional applications and older software.
Enables local cloning of remote output, which is beneficial for remote workstation management and monitoring.

👎 Cons

The 512MB DDR3 graphics memory is quite limited for modern high-resolution displays or graphically intensive applications.
The maximum resolution supported is 1920 x 1200, which is below 4K standards and may be a limitation for users with ultra-high-definition monitors.
Uses PCI Express 2.0 x16, which is an older generation of PCIe and might not offer the same bandwidth as newer standards.
DirectX 10.1 and OpenGL 2.1 support are outdated, potentially limiting compatibility with contemporary professional software that requires newer API versions.
The "Remote Workstation Graphics" designation implies a specific use case, and it may not be optimized for general computing or gaming.
Information regarding video output capabilities is limited to DMS-59, which requires an adapter for standard DVI-D connections (Dual DVI-D support).
