How to Swap a CPU on an AM5 Motherboard (Ryzen 7000 / 9000 Upgrades)

Studio Supplies Editorial · · 📖 12 min read
How to Swap a CPU on an AM5 Motherboard (Ryzen 7000 / 9000 Upgrades)

Introduction

AMD's AM5 platform launched alongside Ryzen 7000 in late 2022 and carries a longevity commitment through at least 2027, making it the first AMD desktop platform in years to offer a meaningful multi-generation upgrade runway. The socket shift from AM4's PGA design to AM5's LGA 1718 (Land Grid Array) changes the handling requirements significantly: on AM5, the 1718 contact pins are on the motherboard socket, not on the CPU — a dropped or mishandled AM5 CPU does not risk bent pins, but a dropped tool or careless finger near the socket does. The CPU itself has only flat contact pads on its underside.

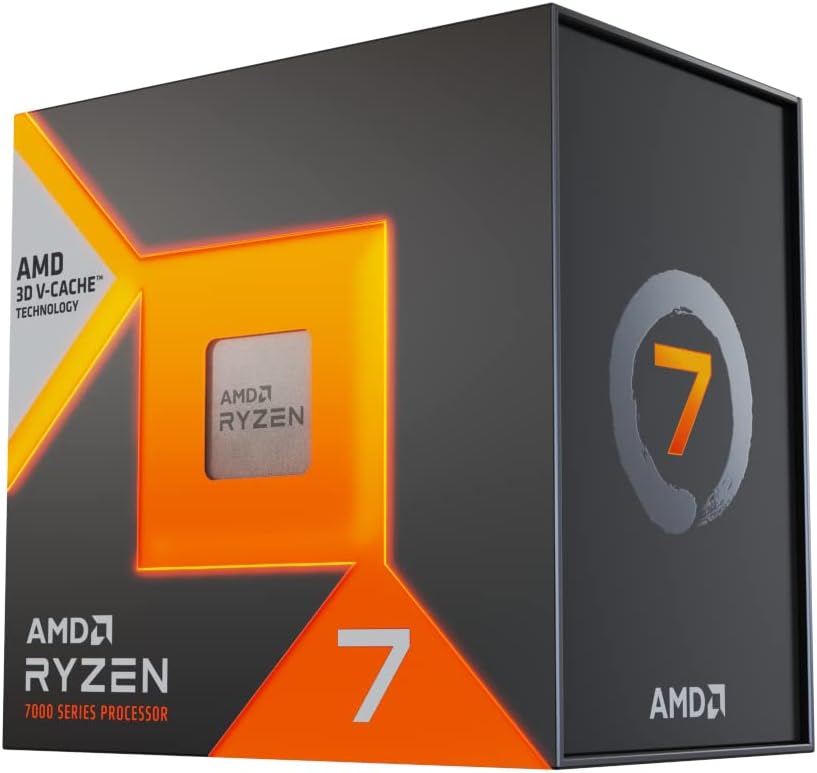

The canonical AM5 upgrade paths in 2026 center on 3D V-Cache gaming performance: a Ryzen 5 7600 or 7700X owner upgrading to a Ryzen 7 7800X3D for gaming, or to a Ryzen 7 9800X3D for the current AM5 gaming peak. According to TechPowerUp's review of the Ryzen 7 7800X3D, the processor's 96 MB 3D V-Cache delivers gaming performance that surpasses much more expensive non-X3D parts. AnandTech's review of the Ryzen 9 7950X characterized the Zen 4 architecture as a decisive improvement in instructions-per-clock over Zen 3. For productivity workloads, the Ryzen 7 9700X and Ryzen 9 9900X bring Zen 5 IPC gains that improve video rendering, compilation, and simulation throughput over their Zen 4 predecessors.

BIOS Update Prerequisite

Installing a Ryzen 9000-series CPU (Zen 5) on a 600-series AM5 board — X670, X670E, B650, B650E — requires AGESA 1.2.0.2 or later. Boards shipped before the 9000-series launch require a BIOS flash before the new CPU is installed. Installing a 9000-series chip without the correct AGESA results in a no-POST condition. Check the motherboard manufacturer's CPU Support List for the specific board model to confirm compatibility and the required BIOS revision.

700-series AM5 boards (X870, X870E, B850) support Ryzen 9000 out of the box in most cases, but confirming via the CPU Support List is the correct procedure regardless. The 7800X3D and other Ryzen 7000-series chips run on 600-series boards with firmware that has been shipping since 2022, so no BIOS update is typically required for same-generation upgrades within the 7000 lineup.

To perform a BIOS update: enter the BIOS setup screen (Delete or F2 during POST) on the currently installed CPU, locate the firmware utility (ASUS: EZ Flash, MSI: M-Flash, Gigabyte: Q-Flash), and flash the downloaded BIOS file from a FAT32-formatted USB drive. According to ASUS's BIOS update FAQ, the EZ Flash utility supports flashing directly from the USB stick with no additional software. For boards with a BIOS Flashback feature, flashing is possible without any installed CPU — the board's dedicated USB port and flashback button are used, and the specific procedure is documented in the board's manual.

Safety

The most critical handling difference from AM4: on AM5, the 1718 LGA contact pins are on the motherboard socket. Never bring a bare metal tool, screwdriver, or finger over the open socket. Even a single bent socket pin is a motherboard repair situation. The CPU itself has flat gold pads on its underside that are comparatively durable — but the socket is fragile. When the retention lever is open and the retention frame is raised, treat the socket area as a no-touch zone. ESD precautions remain mandatory: power off, flip the PSU rocker switch off, press the power button once after disconnecting to discharge capacitors, and touch the bare metal chassis before handling any component.

Tools and Supplies Needed

  • Phillips #1 screwdriver — for most AM5 cooler bracket screws
  • Isopropyl alcohol, 90% concentration or higher — for removing old thermal paste
  • Lint-free cloth or coffee filters — for applying and wiping the isopropyl
  • Fresh thermal paste — do not reuse dried paste; a pea-sized or X-pattern application is required
  • Contact frame (optional) — aftermarket contact frames designed for AM5 address IHS flatness variation reported on some early AM5 boards; the Thermalright AM5 contact frame is a commonly referenced option. Not required for standard installations.

Step-by-Step Installation

Step 1: Back up BIOS settings and record the EXPO profile

Photograph or note the active EXPO DDR5 profile, fan curves, and any voltage adjustments. A CPU swap resets memory and BIOS settings to defaults on AM5 boards. Memory running at JEDEC baseline after a CPU swap is the most common performance-affecting oversight — write down the EXPO profile number and frequency.

Step 2: Update BIOS if installing a Ryzen 9000-series CPU on a 600-series board

If the target CPU is a Ryzen 9000-series part and the board is a 600-series model, flash the updated BIOS with the current CPU installed before proceeding. Confirm the new BIOS version is showing and the board reboots normally before shutting down for the swap.

Step 3: Power off and fully discharge the PSU

Shut down through the operating system. Flip the PSU rocker switch off. Press the case power button once after the PSU is off to discharge residual capacitor charge. Leave the power cable connected for grounding. Touch the metal chassis interior before reaching inside.

Step 4: Remove the CPU cooler

Loosen cooler mounting screws in a diagonal (X) pattern to release clamping pressure evenly. Gently twist the cooler to break the thermal paste bond before lifting. Pull straight up after the bond is broken — the AM5 CPU's flat underside is less prone to lifting with the cooler than AM4 PGA chips, but checking is still worthwhile. Disconnect the CPU fan header.

Step 5: Clean the IHS and cooler base

Apply isopropyl alcohol to a lint-free cloth and wipe the CPU's IHS and the cooler base clean. Allow both surfaces to dry fully before applying new paste.

Step 6: Release the CPU retention lever and frame

Push the AM5 retention lever down and pivot it away from the socket latch. Lift the retention frame up to the raised position. The AM5 CPU is now free to lift straight out by grasping its edges (or the IHS sides). Do not touch the contact pads on the CPU's underside or the socket pins.

Step 7: Inspect the socket pins under bright light

With the CPU removed, visually inspect the AM5 socket's 1718 contact pins under a bright light or with a flashlight at an angle. All pins should appear straight and uniformly aligned. Any visibly bent or misaligned pin must be corrected before installing a new CPU. Pin straightening is fine-detail work; a USB microscope or strong magnifier helps confirm alignment. If pins are damaged and the issue is not clearly minor, consult the board manufacturer before proceeding.

Step 8: Install the new CPU

Hold the new AM5 CPU by its edges (or the IHS). Locate the orientation notch on the CPU's edge — this aligns with a corresponding key in the AM5 socket to ensure correct positioning. The AM5 CPU has a notched corner that allows only one correct orientation. Lower the CPU flat onto the socket; it should settle without lateral force. Do not press down hard or slide.

Step 9: Close the retention frame and lever

Lower the retention frame down over the CPU. Lower and latch the retention lever. The AM5 retention mechanism applies moderate clamping force — resistance when closing the lever is normal. Confirm the CPU is seated flat before latching fully.

Step 10: Apply thermal paste and remount the cooler

Apply a pea-sized dot or a light X-pattern of fresh thermal paste at the center of the new CPU's IHS. Most AM5 coolers use the same mounting bracket and backplate geometry as AM4 — stock Intel coolers are the exception and are not compatible. Remount the cooler with even downward pressure, tightening screws in a diagonal pattern across multiple passes. Reconnect the CPU fan header.

Step 11: Close the case and power on

Reinstall the side panel. Reconnect the power cable and flip the PSU rocker switch on. Power the system on.

Step 12: Boot to BIOS and verify CPU detection

Enter the BIOS immediately. Verify the new CPU model name and core count are displayed correctly. If the CPU name is incorrect or generic, the BIOS microcode does not support the new CPU — a BIOS flash is required before proceeding.

Step 13: Re-enable EXPO and verify memory speeds

DDR5 EXPO memory profiles reset to JEDEC baseline on a CPU swap — this is the most commonly missed post-swap step on AM5. Navigate to memory settings, re-enable the EXPO profile, and confirm the expected frequency is shown. Save settings and reboot. The first POST after an AM5 CPU swap can take 60–90 seconds as the memory controller (IMC) re-trains the DDR5 links; this is normal behavior. Do not reset the system during this initialization window.

Step 14: Boot to OS and update chipset drivers

Boot into the operating system. Download and install the latest AMD chipset driver package from AMD's support and downloads page. The chipset driver includes power management and USB components that benefit from being current after a CPU change. Reboot after installation.

Troubleshooting

Long first-boot delay (60–90 seconds before POST). This is expected behavior after an AM5 CPU swap. The integrated memory controller re-trains DDR5 signal integrity parameters on the first boot with a new CPU's IMC. Wait out the full POST cycle before pressing reset.

System POSTs but BIOS shows the wrong CPU name or a generic entry. The installed BIOS version does not include microcode for the new CPU. Flash the updated BIOS. For 9000-series CPUs on 600-series boards, AGESA 1.2.0.2 or later is required. Use BIOS Flashback if the current CPU is already removed — this is precisely the scenario Flashback was designed for.

Ryzen 7 7800X3D or Ryzen 7 9800X3D reading 89°C at full load. This is normal and expected. AMD's official thermal limit (Tjmax) for both 3D V-Cache parts is 89°C. According to TechPowerUp's review of the Ryzen 7 9800X3D, the CPU will maintain full boost clocks up to this limit without throttling — the thermal limit is set deliberately to balance boost behavior with the V-Cache layer's thermal constraints. Temperatures above 89°C indicate the cooling solution is insufficient; sustained temperatures hitting exactly 89°C at full load are normal operation.

No DDR5 detected or memory shows as single-channel. Re-seat the DDR5 DIMMs. Confirm they are in the correct slots per the board manual — typically A2 and B2 for dual-channel. AM5 boards require DIMMs in specific slots for dual-channel operation; installing in A1/B1 on some boards leaves the channel topology unoptimized.

EXPO re-enable causes boot loop. Some AM5 IMC and EXPO combinations require a minor voltage adjustment for stability. Increase the DRAM voltage by 0.05V (from 1.10V to 1.15V, for example) in BIOS memory settings and attempt EXPO re-enable again. Consult the memory kit's manufacturer specification for the tested voltage range.

AM5 Platform Longevity and Upgrade Economics

AMD committed to AM5 socket support through at least 2027 at the platform's launch, with Ryzen 9000 representing Zen 5 and further architectures planned before the platform's end-of-life. Unlike AM4's late-stage support complexities with B450/X470 board firmware, AM5 was designed from the outset to carry multiple CPU generations, and the DDR5 memory standard will remain current through those generations. Users investing in a 600-series or 700-series AM5 board in 2026 can reasonably expect compatibility with future Ryzen releases without the BIOS-prerequisite friction that characterized AM4's final generation.

The EXPO DDR5 memory profile ecosystem is important context: unlike AM4's XMP DDR4 profiles, which were reliably stable at their rated speeds across most B550 and X570 boards, EXPO DDR5 profiles on AM5 show more board-to-board variation in out-of-box stability. Boards with the latest AGESA and chipset drivers show meaningfully improved EXPO compatibility compared to launch firmware. According to AnandTech's analysis of the Zen 4 architecture at launch, the Ryzen 7000 IMC handles DDR5 speeds above 5200 MT/s with improved stability compared to early Intel DDR5 implementations, and that margin has widened with firmware maturity.

For AM5 CPU selection in 2026: the Ryzen 7 7800X3D and Ryzen 7 9800X3D represent the gaming performance ceiling, with the 9800X3D adding Zen 5 IPC gains on top of the 3D V-Cache foundation. For productivity-focused workloads, the Ryzen 9 9900X delivers 12-core Zen 5 performance at a competitive price point. According to TechPowerUp's 9800X3D review, the combination of Zen 5 architecture and 3D V-Cache puts it in a performance class of its own at the AM5 gaming peak through the time of that review.

  1. AMD, "Ryzen 7000 Series Desktop Processors," amd.com (accessed 2026-05-31)
  2. AMD, "Ryzen 9000 Series Desktop Processors," amd.com (accessed 2026-05-31)
  3. AMD, "Ryzen 7 7800X3D Specifications," amd.com (accessed 2026-05-31)
  4. AMD, "Ryzen 7 9800X3D Specifications," amd.com (accessed 2026-05-31)
  5. TechPowerUp, "AMD Ryzen 7 7800X3D Review," techpowerup.com (accessed 2026-05-31)
  6. TechPowerUp, "AMD Ryzen 7 9800X3D Review," techpowerup.com (accessed 2026-05-31)
  7. TechPowerUp, "Ryzen 7 7800X3D CPU Specifications," techpowerup.com (accessed 2026-05-31)
  8. TechPowerUp, "Ryzen 7 9800X3D CPU Specifications," techpowerup.com (accessed 2026-05-31)
  9. AnandTech, "The AMD Ryzen 9 7950X Review — Zen 4," anandtech.com (accessed 2026-05-31)
  10. AnandTech, "The AMD Ryzen 7 7800X3D Review," anandtech.com (accessed 2026-05-31)
  11. TechPowerUp, "Ryzen 5 7600X CPU Specifications," techpowerup.com (accessed 2026-05-31)
  12. ASUS, "How to Update the BIOS (EZ Flash Utility)," asus.com (accessed 2026-05-31)
  13. AMD, "AM5 Platform Support FAQ," amd.com (accessed 2026-05-31)
