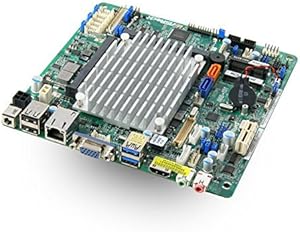

ASRock IMB151N Fanless Mini-ITX Industrial Motherboard
Compact Power for Industrial ApplicationsThe ASRock IMB-151N is a fanless industrial Mini-ITX motherboard designed for embedded computing solutions. Powered by an Intel Celeron N2930 Quad Core processor, this motherboard offers a balance of performance and energy efficiency. Its wide DC-IN range ...
View price on Amazon
Affiliate Disclosure: Studio Supplies may earn a commission from qualifying purchases made through links on this page, at no additional cost to you. This helps support our editorial team.
Notice a mistake? Let Us Know
Overview
Compact Power for Industrial Applications
The ASRock IMB-151N is a fanless industrial Mini-ITX motherboard designed for embedded computing solutions. Powered by an Intel Celeron N2930 Quad Core processor, this motherboard offers a balance of performance and energy efficiency. Its wide DC-IN range and versatile design make it suitable for a variety of applications, including gaming, signage, kiosks, and POS systems.
Key Features:- Processor: Intel Celeron N2930 Quad Core
- Form Factor: Thin Mini-ITX
- DC-IN Range: 9-19V
- Fanless Design: Yes
Key Features
Intel Celeron N2930 1.83 - 2.16GHz Quad Core; Intel HD Graphics, 313 - 854MHz, Supports dual display
Supports 2x 204-pin DDR3 SODIMM, Maximum 8GB capacity, Dual Channel Support, 1333MHz Minimum
Supports 2x SATA2 3Gb/s Drives, 1x Mini PCIe (half length), 1x Mini PCIe (full length/shared with mSATA), 1x PCI Express x1 (2.0)
1x Realtek RTL8111G GbE
Form Factor: Thin Mini-ITX, 170mm x 170mm (6.7" x 6.7")
Specifications
Processor
Intel Celeron N2930 Quad Core
Processor Base Frequency
1.83 - 2.16GHz
Graphics
Intel HD Graphics
Graphics Frequency
313 - 854MHz
Display Support
Dual Display
Memory Type
DDR3 SODIMM
Memory Slots
2x 204-pin
Maximum Memory Capacity
8GB
Memory Speed
1333MHz Minimum
SATA Ports
2x SATA2 3Gb/s
Mini PCIe Slots
1x half length, 1x full length (shared with mSATA)
PCI Express Slot
1x PCI Express x1 (2.0)
Ethernet
1x Realtek RTL8111G GbE
Form Factor
Thin Mini-ITX
Dimensions
170mm x 170mm (6.7" x 6.7")
Pros & Cons
👍 Pros
- Features an Intel Celeron N2930 Quad Core processor with speeds from 1.83 to 2.16GHz, offering efficient performance for industrial applications.
- Equipped with Intel HD Graphics (313 - 854MHz) that supports dual display outputs, making it versatile for multi-monitor setups.
- Supports up to 8GB DDR3 SODIMM memory across two slots, allowing for dual channel support and sufficient capacity for various tasks.
- Designed in the Thin Mini-ITX form factor, measuring 170mm x 170mm, which is compact for space-constrained industrial enclosures.
- Offers multiple expansion options including 2x SATA2 3Gb/s, 1x Mini PCIe (half length), 1x Mini PCIe (full length/shared with mSATA), and 1x PCI Express x1.
👎 Cons
- The Intel Celeron N2930 processor, while quad-core, is an entry-level CPU and may not be suitable for highly demanding computational tasks.
- Supports older DDR3 memory, limiting compatibility with newer, faster DDR4 or DDR5 RAM modules.
- Maximum memory capacity is 8GB, which might be a limitation for applications requiring more extensive RAM.
- The SATA2 3Gb/s drives are slower than modern SATA3 6Gb/s or NVMe interfaces, potentially impacting data transfer speeds.
- The inclusion of only one Realtek RTL8111G GbE port might be a limitation for networking applications requiring multiple dedicated Ethernet connections.
Frequently Asked Questions
What type of processor is included on the ASRock IMB151N motherboard?
The ASRock IMB151N motherboard features an Intel Celeron N2930 Quad Core processor, operating between 1.83 and 2.16GHz.
How much RAM can this motherboard support?
This motherboard supports a maximum of 8GB DDR3 SODIMM memory across two 204-pin slots, with a minimum speed of 1333MHz.
Does this motherboard support multiple displays?
Yes, the integrated Intel HD Graphics (313 - 854MHz) on this motherboard supports dual display outputs.
What storage options are available on this industrial motherboard?
The motherboard supports two SATA2 3Gb/s drives and offers one Mini PCIe slot (full length, shared with mSATA) for additional storage or expansion.
What is the form factor of the ASRock IMB151N?
This ASRock motherboard is designed in a Thin Mini-ITX form factor, with dimensions of 170mm x 170mm (6.7" x 6.7").
Are there any PCI Express slots for expansion cards?
Yes, it includes one PCI Express x1 (2.0) slot, providing an option for adding an expansion card.
Does this motherboard come with onboard Ethernet connectivity?
Yes, the motherboard is equipped with one Realtek RTL8111G GbE port for network connectivity.
