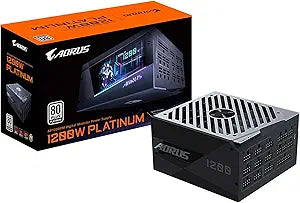

Gigabyte GP-AP1200PM 1200W 80+ Platinum Fully Modular PSU — main product image

Gigabyte GP-AP1200PM 1200W 80+ Platinum Fully Modular PSU

Gigabyte

Gigabyte GP-AP1200PM 1200W 80+ Platinum Fully Modular PSU

Name: Gigabyte GP-AP1200PM 1200W 80+ Platinum Fully Modular PSU
Brand: Gigabyte
SKU: GP-AP1200PM

★★★★★3.8 (158 reviews)

1200W80 Plus Platinum

1200W of single-rail Platinum-rated power gives high-end builds clean, efficient headroom without a voltage regulation tradeoff.

Check availability

Affiliate Disclosure: Studio Supplies may earn a commission from qualifying purchases made through links on this page, at no additional cost to you. This helps support our editorial team.

Notice a mistake? Let Us Know

Overview

The Gigabyte GP-AP1200PM is a 1200W ATX power supply rated 80 Plus Platinum with a fully modular cable harness and single +12V rail architecture. At 1200W, the specification context matters: this is a PSU built for the ceiling of consumer and prosumer system power demands — think RTX 4090-class GPUs paired with Core i9 or Ryzen 9 processors, multi-GPU workstation builds, or heavily loaded content creation rigs with multiple high-TDP PCIe cards. The single-rail design means the full 1200W (approximately 100A at 12V) is available to any connector at any time, which eliminates the current-cap instability that multi-rail designs can introduce when a single component demands sustained high current. Platinum certification at this wattage means approximately 52W less heat generated compared to a Bronze unit at 600W load — a meaningful thermal benefit in an already-hot high-end system.

The Japanese capacitor spec is the internal quality indicator that separates reliable high-wattage PSUs from paper-spec units. At 1200W sustained, capacitors are under continuous thermal and electrical stress — 105°C-rated Japanese caps maintain their specifications over multi-year lifespans under those conditions in a way that 85°C budget capacitors don't. Fully modular cabling is more than aesthetic at this power tier: a 1200W build has more cables to manage than any mid-range system, and the ability to remove every unused cable from the chassis is critical for maintaining airflow through a densely populated case. This PSU fits builders who are specifying components at the edge of what consumer hardware demands and need a power delivery foundation that won't become the bottleneck or failure point in an expensive system.

Key Features

1200W Capactiy with Single +12V Rail

80 Plus Platinum Certified

ATX Form Factor

Fully Modular Design

Japanese Capacitors

Specifications

Wattage

1200W

Efficiency Rating

80 Plus Platinum

Rail Configuration

Single +12V Rail

Modularity

Fully Modular

Form Factor

ATX

Capacitors

Japanese

Pros & Cons

👍 Pros

1200W single +12V rail delivers full rated capacity to any connector without per-rail current caps that could destabilize high-draw GPU configurations
80 Plus Platinum certification confirms 92% efficiency at 50% load, reducing heat output by roughly 40–50W compared to a Bronze unit at the same load
Fully modular cable management removes all unused cables from the case entirely, not just the non-ATX ones
Japanese capacitors indicate a higher internal component spec that supports long-term stability under sustained high-load operation
ATX form factor ensures compatibility with standard mid-tower and full-tower cases without modification

👎 Cons

1200W output requires a 240V outlet or draws substantial 120V current (10A at full load) — older homes with limited circuit amperage may not be suitable for sustained full-load operation
At this wattage tier, the PSU typically operates well below its rated load in all but the most extreme builds — budget-conscious builders don't need this much headroom
No official 80 Plus testing data is publicly listed for this specific model number, which hardware reviewers have noted makes independent efficiency verification difficult
Fan noise under heavy sustained load has been reported as elevated compared to premium competitors at the same price point
Gigabyte's PSU product line has a shorter track record than established PSU specialists — long-term MTBF data is less established than brands with decades of PSU-specific history

Frequently Asked Questions

What does 80 Plus Platinum certification mean in practical terms for my power bill and thermals?

80 Plus Platinum requires at least 89% efficiency at 20% load, 92% at 50% load, and 89% at full load. Compared to a Bronze-rated PSU (85% at 50% load), you're losing roughly 7% less power as heat at typical operating loads. On a 1200W unit running at 600W sustained, that's roughly 42W less heat generated — which reduces case temperatures and fan noise from the PSU itself.

Why does this PSU use a single +12V rail instead of multiple rails?

Single-rail designs deliver the full +12V capacity (in this case, all 1200W) to any connector without per-rail current limits. Multi-rail designs cap how much each rail can deliver, which can cause instability if a high-draw component — like a flagship GPU pulling 400W+ — is isolated on a single rail. For high-end single-GPU or dual-GPU builds, a single rail simplifies power delivery and eliminates that failure mode.

What's the advantage of Japanese capacitors in this PSU?

Japanese capacitors from manufacturers like Nichicon and Rubycon carry a proven track record for maintaining capacitance and ESR values over time and temperature cycles. Cheaper PSUs use capacitors rated for lower temperatures (85°C vs 105°C), which degrade faster under sustained load. Japanese caps in a Platinum unit suggest the internal component spec matches the efficiency rating — it's an indicator of build quality consistency, not just a marketing claim.

Does fully modular mean all cables, including the 24-pin ATX, are detachable?

Yes. Fully modular means every cable — 24-pin motherboard, EPS CPU, PCIe GPU, SATA, Molex — connects only when needed. Semi-modular units leave the 24-pin and CPU cables permanently attached. The fully modular design reduces cable clutter in the case and makes builds and cable management significantly cleaner, especially relevant in a 1200W unit where you'll have multiple GPU and CPU power cables to route.

Is 1200W necessary, or is this overkill for most builds?

For most single-GPU gaming builds, 1200W is overspecified — a 750W or 850W unit would suffice. The GP-AP1200PM targets builds with high TDP components: Intel Extreme Edition or AMD Threadripper CPUs, high-end workstation boards, dual-GPU configurations, or systems with multiple NVMe drives and PCIe cards. At this wattage, the PSU typically operates at 40–60% load in a demanding but not extreme build, which is where Platinum efficiency peaks.
