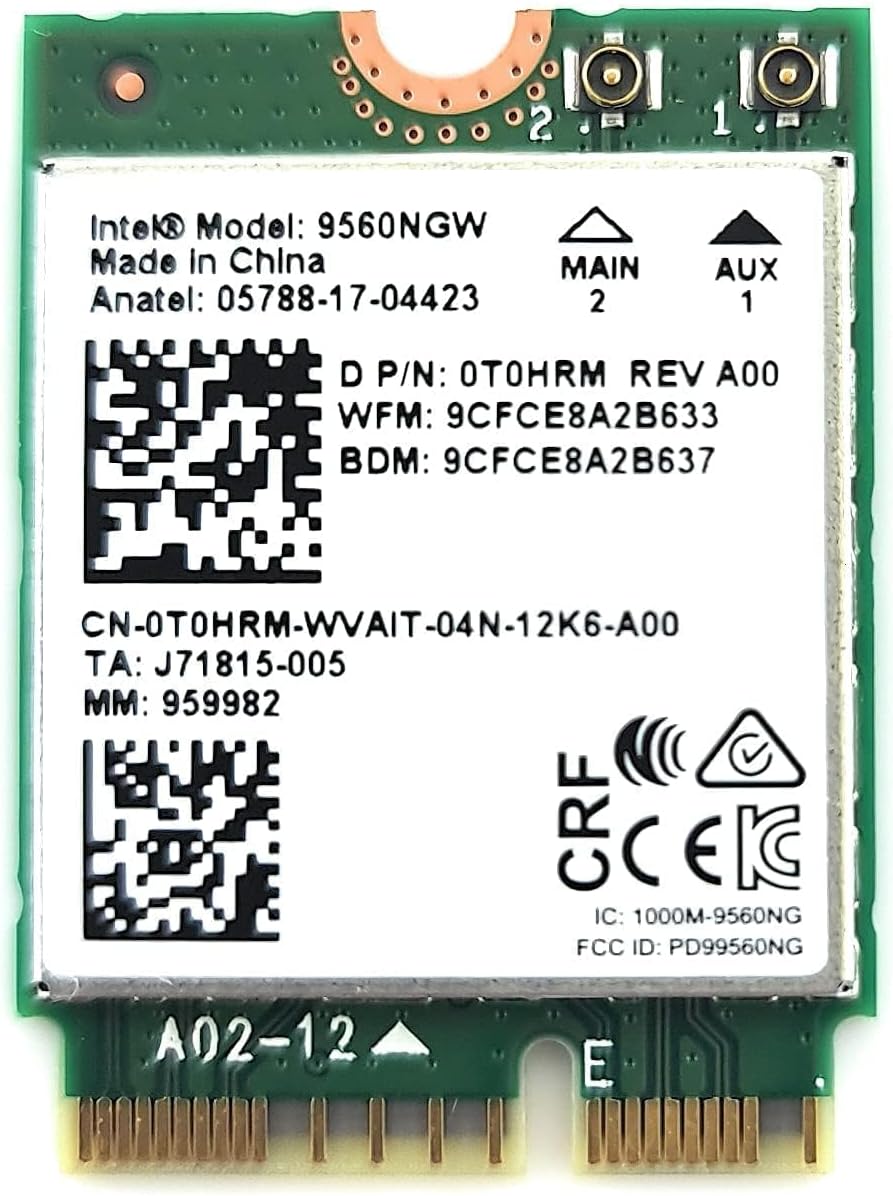

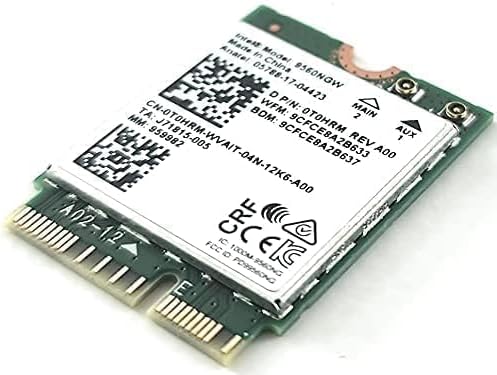

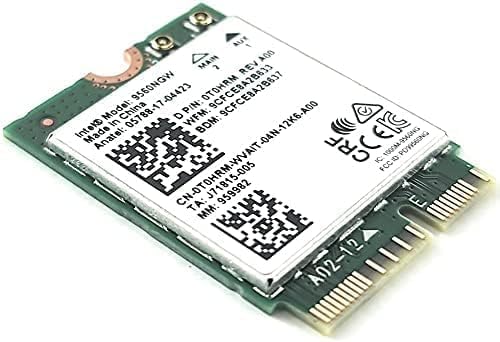

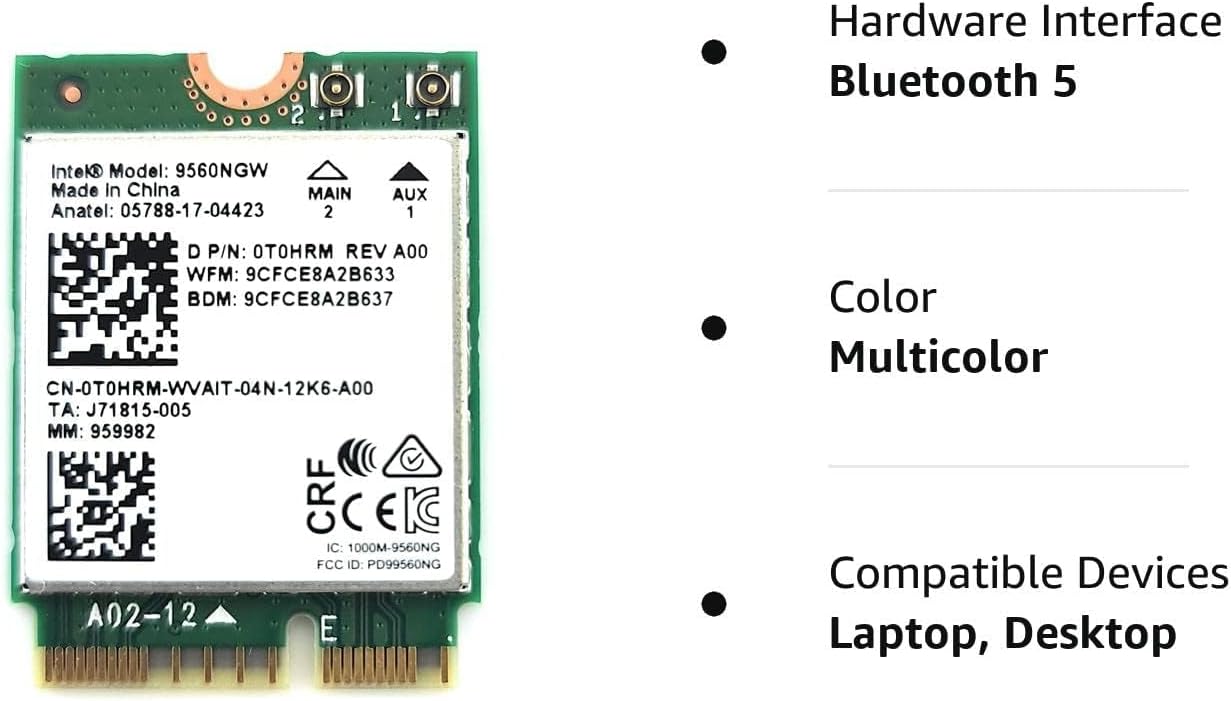

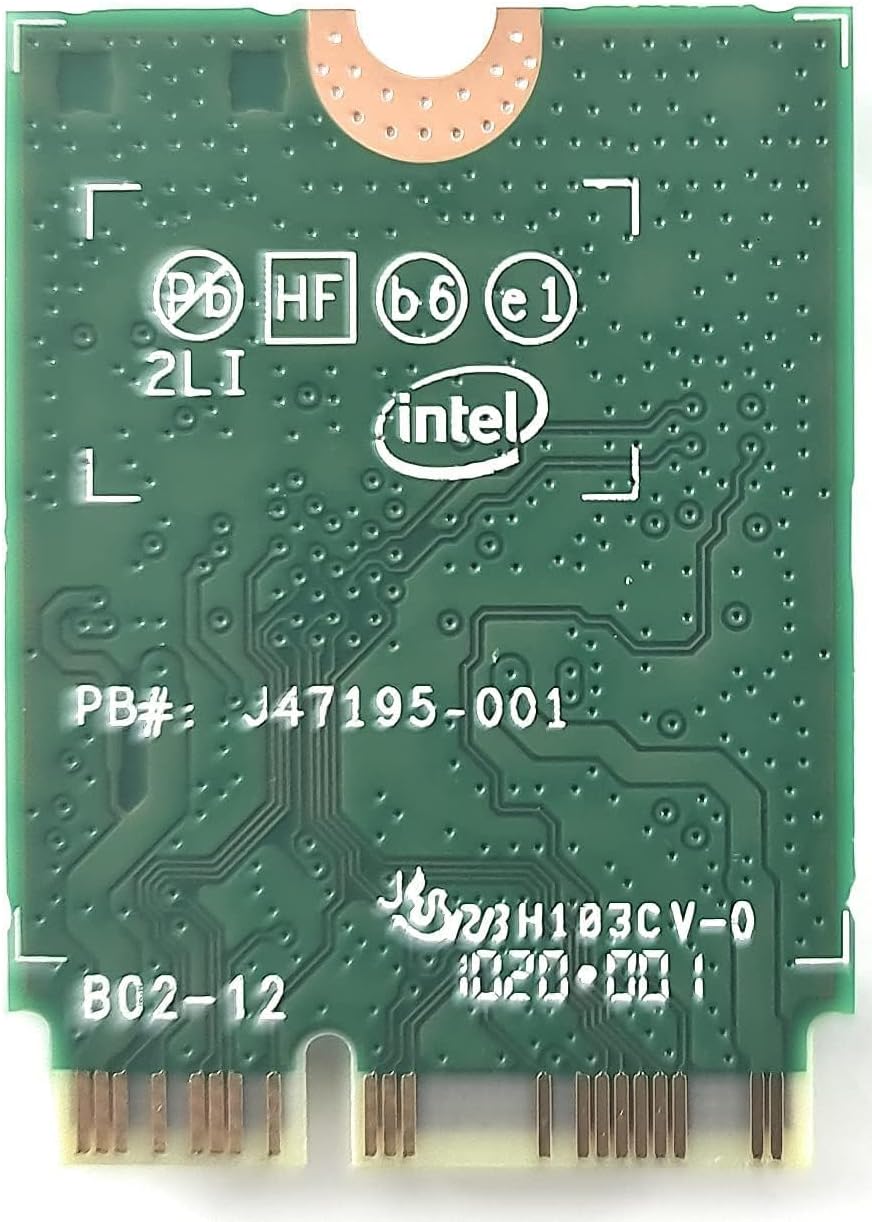

Intel 9560.NGWG.NV Wireless-AC Gigabit WiFi Adapter
★★★★★
Experience Next-Gen Wireless Connectivity The Intel Wireless-AC 9560 is a high-performance Wi-Fi and Bluetooth module designed for modern laptops and desktops. With support for Gigabit Wi-Fi speeds and advanced features, this module delivers a seamless wireless experience. Please ensure your sys...
$25.99*
View on Amazon
✓ In Stock on Amazon.com
*Price sourced from Amazon.com. Last updated:Jul 14, 2026.Price and availability are subject to change.
Affiliate Disclosure: Studio Supplies may earn a commission from qualifying purchases made through links on this page, at no additional cost to you. This helps support our editorial team.
Notice a mistake? Let Us Know
Overview
Experience Next-Gen Wireless Connectivity
The Intel Wireless-AC 9560 is a high-performance Wi-Fi and Bluetooth module designed for modern laptops and desktops. With support for Gigabit Wi-Fi speeds and advanced features, this module delivers a seamless wireless experience. Please ensure your system supports Connectivity Integration (CNVi) for compatibility.
- Host Interfaces: Wi-Fi: PCI based (Internal to the SoC)
- Interfaces to the SoC: Wi-Fi: CNVio (Intel proprietary bus inspired by the DPHY low power interface)
- Wireless Protocol: 802.11ac
- Bluetooth: Bluetooth 5
- Operating System Support: Windows 10 (64-bit ONLY), Linux (Limited feature support), Chrome
- Form Factor: M.2 2230
- Dimensions: 1.18"L x 0.87"W x 0.09"H
Key Features
ATTENTION!! This module must be used with an Intel SoC which supports Connectivity Integration (CNVi). Please use Intel 9260 if you're not sure if your system supports this Intel 9560. Or consult your system builder/manufacturer support.
Host Interfaces Wi-Fi: PCI based (Internal to the SoC)
Interfaces to the SoC Wi-Fi: CNVio (Intel propietary bus inspired by the DPHY low power interface)
Supported Operating System: Windows 10 (64-bit ONLY), Linux (Limited feature support), Chrome
Intel corrected errors in CNVio trace numbers on M.2 2230 (pins 21 and 23 swapped) on April 2017
Specifications
Model Number
9560.NGWG.NV
Wireless Standard
Wireless-AC Gigabit WiFi
Host Interface (Wi-Fi)
PCI based (Internal to the SoC)
Interface to SoC (Wi-Fi)
CNVio
Supported Operating Systems
Windows 10 (64-bit ONLY), Linux (Limited feature support), Chrome
Module Requirement
Intel SoC with Connectivity Integration (CNVi) support
Pros & Cons
👍 Pros
- Supports Gigabit WiFi, enabling faster wireless internet speeds for compatible setups
- Designed to interface with the SoC via CNVio, Intel's proprietary low-power interface, optimizing system integration
- Compatible with Windows 10 (64-bit ONLY), Linux (with limited feature support), and Chrome OS
- Features an M.2 2230 form factor, which is a common and compact standard for wireless adapters
- Utilizes a PCI-based host interface for Wi-Fi, integrating efficiently within supporting systems
👎 Cons
- Requires an Intel SoC that supports Connectivity Integration (CNVi), limiting compatibility to specific system architectures
- Not compatible with all operating systems, supporting Windows 10 (64-bit ONLY), Linux (limited features), and Chrome
- If your system does not support CNVi, you would need to use a different adapter like the Intel 9260, which is a significant compatibility hurdle
- The "limited feature support" for Linux could impact performance or functionality for users of that operating system
- Older M.2 2230 boards manufactured before April 2017 might have trace number errors (pins 21 and 23 swapped), requiring careful verification
Frequently Asked Questions
What is the primary compatibility requirement for the Intel 9560.NGWG.NV WiFi Adapter?
This module must be used with an Intel System on Chip (SoC) that specifically supports Connectivity Integration (CNVi).
What operating systems are supported by this WiFi adapter?
The Intel 9560.NGWG.NV supports Windows 10 (64-bit ONLY), Linux (with limited feature support), and Chrome operating systems.
How does this adapter connect internally to the system?
For Wi-Fi, it uses a PCI-based host interface internal to the SoC, and interfaces to the SoC via CNVio, which is an Intel proprietary bus.
What should I do if I am unsure if my system supports CNVi?
If you are unsure, it is recommended to consult your system builder or manufacturer support, or consider using an Intel 9260 adapter instead.
Were there any known issues with older versions of this adapter?
Intel corrected errors in CNVio trace numbers on M.2 2230 (pins 21 and 23 swapped) on April 2017, so older boards might have this issue.
Does this adapter offer Gigabit WiFi speeds?
Yes, it is an Intel Wireless-AC Gigabit WiFi Adapter, indicating support for high-speed wireless networking.
