Intel

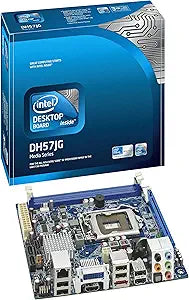

Intel BOXDH57JG Mini-ITX Socket 1156 Motherboard
★★★★★
6.7"USB 2.0
Compact Powerhouse for Home EntertainmentThe Intel Desktop Board DH57JG is a Mini-ITX motherboard designed to bring compact, space-efficient performance to your home theater PC, supporting Intel Core i5 processors and offering essential features for entertainment. Form Factor: Mini-ITX ...
Check availability
Affiliate Disclosure: Studio Supplies may earn a commission from qualifying purchases made through links on this page, at no additional cost to you. This helps support our editorial team.
Notice a mistake? Let Us Know
Overview
Compact Powerhouse for Home Entertainment
The Intel Desktop Board DH57JG is a Mini-ITX motherboard designed to bring compact, space-efficient performance to your home theater PC, supporting Intel Core i5 processors and offering essential features for entertainment.
- Form Factor: Mini-ITX
- Processor Socket: LGA1156
- Chipset: Intel H57 Express Chipset
- Memory: Two DDR3 (1333/1066 MHz) SDRAM DIMM sockets; 8 GB max
Key Features
The Intel DH57JG Media Series Mini-ITX Motherboard Supports up to 8 GB of dual-channel DDR3 memory at 1333
This desktop motherboard supports Intel Core i5, Core i3 and Pentium G6950 processors with an LGA1156 socket.
Mini-ITX form factor (6.7"x6.7") delivers great performance in a small size
Expandable with: five SATA ports (3.0 Gb/s): four internal and one eSATA on the back panel, 12 USB 2.0 ports
This board supports over-clocking and comes with a robust suite of software
Its integrated intel HD graphics controler supports onboard video using an intel processor with graphics capabilities.
Specifications
Form Factor
Mini-ITX (6.7"x6.7")
Processor Socket
LGA1156
Supported Processors
Intel Core i5, Core i3, Pentium G6950
Memory Type
Dual-channel DDR3
Max Memory Capacity
8 GB
Memory Speed
1333 MHz
SATA Ports
5 (4 internal, 1 eSATA)
SATA Speed
3.0 Gb/s
USB Ports
12 USB 2.0
Integrated Graphics
Intel HD graphics controller (requires compatible CPU)
Overclocking Support
Yes
Pros & Cons
👍 Pros
- Supports Intel Core i5, Core i3, and Pentium G6950 processors with an LGA1156 socket, offering CPU flexibility.
- Features a Mini-ITX form factor (6.7"x6.7"), making it ideal for compact and small-form-factor PC builds.
- Supports up to 8 GB of dual-channel DDR3 memory at 1333 MHz, providing decent memory bandwidth for its generation.
- Includes five SATA ports (3.0 Gb/s) (four internal and one eSATA), offering good storage expansion capabilities for its size.
- Comes with 12 USB 2.0 ports, providing extensive connectivity for peripherals and external devices.
👎 Cons
- The LGA1156 socket and DDR3 memory support are older standards, limiting compatibility with newer processors and RAM.
- The maximum memory support is 8GB, which can be a significant limitation for modern demanding applications or intensive multitasking.
- Only supports USB 2.0 ports; lacks faster USB 3.0 or 3.1 ports for quicker data transfer with modern devices.
- Integrated Intel HD graphics controller relies on a processor with graphics capabilities, meaning CPU choice is crucial for onboard video.
- The SATA ports are 3.0 Gb/s, which is slower than newer 6.0 Gb/s standards, potentially bottlenecking modern SSDs.
Frequently Asked Questions
What CPU socket type does the Intel BOXDH57JG Mini-ITX Motherboard use?
This motherboard utilizes an LGA1156 socket, supporting Intel Core i5, Core i3, and Pentium G6950 processors.
What is the maximum amount of RAM this motherboard can support?
The Intel BOXDH57JG Media Series Mini-ITX Motherboard can support up to 8 GB of dual-channel DDR3 memory at 1333 MHz.
How many SATA ports are available on this motherboard for storage devices?
It features five SATA ports (3.0 Gb/s): four internal and one eSATA on the back panel.
What form factor is this Intel motherboard?
This motherboard is a Mini-ITX form factor, measuring 6.7"x6.7", making it suitable for compact builds.
Does this motherboard support overclocking?
Yes, this board supports overclocking and comes with a robust suite of software to facilitate it.
Are there integrated graphics on this motherboard?
Yes, it includes an integrated Intel HD graphics controller, which provides onboard video capabilities when paired with an Intel processor that has integrated graphics.
