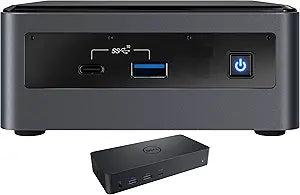

Intel BXNUC10i3FNHN1-4346-227744 NUC 10 Mini PC i3, 16GB, 120GB SSD, Windows 11 Pro — main product image
Intel BXNUC10i3FNHN1-4346-227744 NUC 10 Mini PC i3, 16GB, 120GB SSD, Windows 11 Pro
Intel BXNUC10i3FNHN1-4346-227744 NUC 10 Mini PC i3, 16GB, 120GB SSD, Windows 11 Pro
Intel BXNUC10i3FNHN1-4346-227744 NUC 10 Mini PC i3, 16GB, 120GB SSD, Windows 11 Pro
Intel BXNUC10i3FNHN1-4346-227744 NUC 10 Mini PC i3, 16GB, 120GB SSD, Windows 11 Pro
Intel BXNUC10i3FNHN1-4346-227744 NUC 10 Mini PC i3, 16GB, 120GB SSD, Windows 11 Pro
Intel BXNUC10i3FNHN1-4346-227744 NUC 10 Mini PC i3, 16GB, 120GB SSD, Windows 11 Pro
Intel

Intel BXNUC10i3FNHN1-4346-227744 NUC 10 Mini PC i3, 16GB, 120GB SSD, Windows 11 Pro

UHD5120 x 2880i3-10110U16GB DDR4120GB SSD

A Thunderbolt 3-equipped mini PC with Wi-Fi 6, 16GB DDR4, and a D6000 dock that triples your display outputs from a 4.625" footprint.

Check availability
Affiliate Disclosure: Studio Supplies may earn a commission from qualifying purchases made through links on this page, at no additional cost to you. This helps support our editorial team.

Notice a mistake? Let Us Know

Overview

The Intel NUC 10 (BXNUC10i3FNH) platforms the Core i3-10110U — a 14nm Comet Lake dual-core running at 2.1GHz base with a 4.1GHz single-core boost and 4MB L3 cache — inside a 117mm x 112mm x 54mm chassis. This isn't a speed demon by modern standards, but the 15W TDP envelope means it operates passively at light loads and throttles conservatively under thermal pressure. The configuration here pairs that processor with 16GB of DDR4-2666 in dual-channel SO-DIMM, which meaningfully improves the Intel UHD 620 GPU's memory bandwidth versus a single-channel 8GB configuration — the difference is visible in 4K decode smoothness and light 3D tasks. The 120GB SATA SSD is the weak link in the storage tier; it handles OS and application boot times adequately but leaves little headroom for data.

This bundle's differentiator is the included Dell D6000 Universal Dock — a USB-C/Thunderbolt dock that outputs up to three displays at resolutions up to 5120x2880 and adds USB 3.0, audio, and Ethernet to a single cable desktop connection. For a business workstation, content review station, or classroom deployment where multi-monitor productivity matters more than raw compute throughput, this combination eliminates the need to budget separately for a dock. The NUC 10 i3 variant is best suited for document-centric office workflows, remote desktop endpoints, digital signage, and lightweight coding environments. Users who need sustained CPU performance — video rendering, large dataset processing, software compilation — should step up to the i5-10210U or i7-10710U NUC 10 configurations.

Key Features

【Upgraded】 Seal is opened for Hardware/Software upgrade only to enhance performance. No Display ; Wi-Fi 6 AX201 Wifi, Bluetooth 5.1, Ethernet LAN (RJ-45), No Webcam, .

10th Gen Intel Core i3-10110U 2.1GHz Processor (upto 4.1 GHz, 4MB Cache, 2-Cores) ; Intel UHD Integrated Graphics, .

【High Speed and Multitasking】 16GB DDR4 SODIMM; 90W Power Supply; Black Color, .

120GB SATA SSD; 3 USB 3.2 Gen1, 1 HDMI, Thunderbolt 3 (Type-C), USB 3.2 Type-C Gen1, SD Reader, No Optical Drive, ., Windows 11 Pro., 1 Year Manufacturer warranty from GreatPriceTech (Professionally upgraded by GreatPriceTech)

Includes Universal Dock D6000 (USB-C)(Supports upto 3 Displays;Max Resolution 5120 x 2880;Combo Audio, Speaker Out Port;USB 3.0 Type-A, USB-C (1 Power share);HDMI, Display Port, RJ-45)

Specifications

Processor
Intel Core i3-10110U, 2.1GHz base / 4.1GHz boost, 4MB Cache, 2-core/4-thread
Memory
16GB DDR4 SO-DIMM
Storage
120GB SATA SSD
Graphics
Intel UHD Integrated Graphics
Operating System
Windows 11 Pro
Wireless
Wi-Fi 6 AX201 (802.11ax), Bluetooth 5.1
Wired Networking
Gigabit Ethernet LAN (RJ-45)
Ports
3x USB 3.2 Gen1 Type-A, 1x HDMI, Thunderbolt 3 (Type-C), 1x USB 3.2 Type-C Gen1, SD Card Reader
Power Supply
90W
Dimensions
4.625" x 4.5" x 2.9"
Weight
1.21 lb
Color
Black
Included Dock
Universal Dock D6000 (USB-C) — supports up to 3 displays, max 5120x2880, HDMI, DisplayPort, USB 3.0, USB-C, RJ-45, combo audio

Pros & Cons

👍 Pros

  • Thunderbolt 3 enables 40Gb/s peripheral bandwidth and powers the bundled D6000 dock for up to three simultaneous external displays.
  • Wi-Fi 6 AX201 delivers 3-4x the sustained wireless throughput of previous-generation NUC 802.11ac adapters.
  • 16GB DDR4 SO-DIMM provides sufficient RAM headroom for multitasking, WSL2, and light virtualization without an immediate upgrade.
  • 90W power supply cleanly handles the i3-10110U's 15W TDP with overhead to spare for connected USB peripherals.
  • 4.625" x 4.5" x 2.9" form factor and 1.21 lb weight make desk or VESA mounting genuinely practical.

👎 Cons

  • 120GB SATA SSD — not NVMe — caps sequential read speeds at roughly 500MB/s; an NVMe M.2 drive would deliver 3-5x that throughput.
  • Dual-core i3-10110U lacks hyperthreading peer cores; sustained multi-threaded workloads (compilation, video encoding) will saturate all four threads quickly.
  • Intel UHD 620 integrated graphics share system memory bandwidth with the CPU and cannot run any GPU-accelerated workloads beyond media decode and light 2D tasks.
  • The "opened for upgrade" disclosure means this unit is not factory-sealed — buyers should verify component authenticity and warranty terms before purchase.
  • No optical drive and a single internal drive bay limit local backup and high-capacity storage options without external peripherals.

Frequently Asked Questions

Thunderbolt 3 delivers 40Gb/s bidirectional bandwidth — enough for external GPU enclosures, NVMe storage arrays, or daisy-chained displays at 4K60. The included D6000 dock leverages this to add three additional display outputs (HDMI + 2x DisplayPort), USB 3.0, and Gigabit Ethernet from a single cable connection.
120GB is tight for a primary drive — Windows 11 Pro consumes roughly 30-40GB at rest, leaving ~80GB for applications. The NUC 10 chassis supports one M.2 2242/2280 slot (PCIe/SATA) and one 2.5" SATA bay, so storage expansion is straightforward. The listing notes the seal was opened for upgrade — confirm whether the 120GB drive occupies the M.2 or 2.5" bay before purchasing additional storage.
Yes. Intel UHD 620 graphics (integrated on the 10110U) fully decodes H.264, H.265/HEVC, and VP9 in hardware up to 4K60. CPU decode at 4K is not required, so media playback does not meaningfully load the processor.
AX201 supports 802.11ax at 2.4GHz and 5GHz with 2x2 MIMO, delivering theoretical peaks of ~2.4Gb/s on a Wi-Fi 6 router. In practice, expect 600-900Mb/s at close range — roughly 3-4x the sustained throughput of the AC7265 found in 8th-gen NUCs. On a legacy 802.11ac router, performance reverts to AC speeds.
The i3-10110U is a dual-core/four-thread chip — adequate for a single lightweight VM (e.g., Docker containers, WSL2 workloads) alongside a host OS. The 16GB DDR4 is the enabling factor here; without it, VM headroom would be the immediate bottleneck. Heavy multi-VM workloads should target the i5 or i7 NUC 10 variants.
