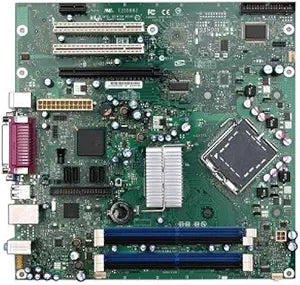

Intel D945PAW Socket 775 mBTX Motherboard Audio/LAN — main product image
Intel

Intel D945PAW Socket 775 mBTX Motherboard Audio/LAN

★★★★★2.0 (1 reviews)
USB 2.0

Build a Reliable System with the Intel D945PAW MotherboardThe Intel D945PAW Desktop Classic Board Series mBTX motherboard offers a stable and affordable platform for home and business users. Supporting a range of Intel processors and featuring ample expansion slots, this motherboard provides a so...

View price on Amazon
Affiliate Disclosure: Studio Supplies may earn a commission from qualifying purchases made through links on this page, at no additional cost to you. This helps support our editorial team.

Notice a mistake? Let Us Know

Overview

Build a Reliable System with the Intel D945PAW Motherboard

The Intel D945PAW Desktop Classic Board Series mBTX motherboard offers a stable and affordable platform for home and business users. Supporting a range of Intel processors and featuring ample expansion slots, this motherboard provides a solid foundation for your computing needs.

  • Chipset: Intel 945P Express
  • Socket: 775 microBTX form factor
  • Memory Support: Up to 4 GB SDRAM
  • Audio: Intel High Definition Audio with 5.1 surround sound
  • Network: Intel PRO 10/100/1000 Network Connection
  • Expansion Slots: Two PCI slots, One PCI Express x16 slot, and One PCI Express x1 slot
  • Supported Processors: Socket 775 Intel Celeron D, Pentium 4, and Pentium D

Key Features

General Features: Classic Series Intel 945P Express chipset Socket 775 microBTX form factor Supported

Expansion slots: Four (4) DIMM sockets Two (2) PCI slots One (1) PCI Express x16 slot One (1) PCI Express x1 slot

I/O ports: Two (2) PS/2 ports One (1) 9-pin Serial port One (1) Parallel port Four (4) USB 2.0 ports

Supported Processors: Intel socket 775 Celeron D 2.53 GHz ~ 3.26 GHz Intel socket 775 Pentium 4 2.80 GHz

Regulatory Approvals: FCC CE cULus BSMI C-Tick MIC VCCI

Specifications

Brand
Intel
Model
D945PAW
Chipset
Intel 945P Express
Socket Type
Socket 775
Form Factor
microBTX
Supported Processors
Intel socket 775 Celeron D 2.53 GHz ~ 3.26 GHz, Intel socket 775 Pentium 4 2.80 GHz
DIMM Sockets
Four (4)
PCI Slots
Two (2)
PCI Express x16 Slots
One (1)
PCI Express x1 Slots
One (1)
PS/2 Ports
Two (2)
Serial Ports
One (1) 9-pin
Parallel Ports
One (1)
USB 2.0 Ports
Four (4)
Regulatory Approvals
FCC, CE, cULus, BSMI, C-Tick, MIC, VCCI

Pros & Cons

👍 Pros

  • This motherboard supports a range of Intel Socket 775 Celeron D and Pentium 4 processors, offering flexibility for builds.
  • It includes four DIMM sockets, allowing for multiple memory modules to be installed for increased capacity.
  • The presence of both PCI Express x16 and x1 slots provides options for dedicated graphics cards and other expansion cards.
  • Two standard PCI slots are included, which can be useful for legacy expansion cards.
  • Equipped with multiple I/O ports including PS/2, Serial, Parallel, and four USB 2.0 ports for various peripherals.

👎 Cons

  • The Intel 945P Express chipset and Socket 775 are older technologies, limiting compatibility with newer, more powerful processors.
  • The board only features USB 2.0 ports, lacking faster USB 3.0 or later standards for quicker data transfer with modern devices.
  • The microBTX form factor is less common than ATX or Micro-ATX, potentially limiting case choices.
  • The integrated audio and LAN specifications are not detailed, so their performance might be basic.
  • The supported Celeron D and Pentium 4 processors are entry-level to mid-range for their era, not suitable for high-performance computing by today's standards.

Frequently Asked Questions

This motherboard uses a Socket 775, compatible with certain Intel Celeron D and Pentium 4 processors.
The Intel D945PAW motherboard features four DIMM sockets for memory installation.
It includes two (2) PCI slots, one (1) PCI Express x16 slot, and one (1) PCI Express x1 slot for various expansion cards.
No, the specifications only list four (4) USB 2.0 ports; there is no mention of USB 3.0 support.
It supports Intel Socket 775 Celeron D processors ranging from 2.53 GHz to 3.26 GHz, and Intel Socket 775 Pentium 4 processors starting from 2.80 GHz.
