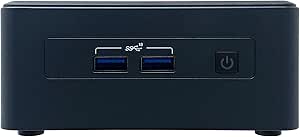

Intel NUC11TNHi5 Pro Kit Mini Desktop PC
Intel NUC11TNHi5 Pro Kit Mini Desktop PC
Intel NUC11TNHi5 Pro Kit Mini Desktop PC
Intel NUC11TNHi5 Pro Kit Mini Desktop PC
Intel NUC11TNHi5 Pro Kit Mini Desktop PC
Intel

Intel NUC11TNHi5 Pro Kit Mini Desktop PC

i5-1135G732GB DDR4Bluetooth 5.0USB 3.2USB 2.0

Intel NUC 11 Pro mini PC packs an 11th Gen i5 processor, 32GB RAM, and 4TB SSD into a palm-sized desktop.

Check availability
Affiliate Disclosure: Studio Supplies may earn a commission from qualifying purchases made through links on this page, at no additional cost to you. This helps support our editorial team.

Notice a mistake? Let Us Know

Overview

The Intel NUC 11 Pro Kit NUC11TNHi5 is a mini desktop PC built around Intel's 11th Gen Core i5-1135G7 quad-core processor, which boosts up to 4.20 GHz for responsive performance across office applications, web browsing, video conferencing, and media playback. This configuration includes 32GB of DDR4 3200 MHz RAM and a 4TB SSD, providing substantial memory for multitasking and enough storage to hold large file libraries, databases, or media collections without needing external drives. Intel Iris Xe integrated graphics handle everyday visual tasks and support up to four simultaneous monitors, a standout capability for users who rely on multi-display workflows.

The NUC's compact footprint — roughly 4 x 4 inches — makes it ideal for deployments where space is at a premium, including office desks, conference rooms, retail kiosks, and digital signage installations. VESA mounting lets users hide the PC behind a monitor for a clean workspace. Connectivity includes Intel Wi-Fi 6 AX 201 and Bluetooth 5.0, eliminating the need for wired network connections or wireless adapters in most environments. Running Windows 10 Pro, the system supports domain join, BitLocker encryption, and remote management features that IT departments require, with a clear upgrade path to Windows 11 when ready.

Key Features

11th Generation Intel Core i5-1135G7 Quad-Core 2.40 GHz Processor (8MB Smart Cache, Turbo Boost up to 4.2 GHz)

32GB DDR4 3200 MHz Memory, 4TB Solid State Drive, Integrated Intel Iris Xe Graphics, Windows 10 Pro (64-bit)

Intel Wi-Fi 6 AX201 + Bluetooth 5.0, Intel Ethernet Controller i225-LM, 2x USB 3.2 (Front), 1x USB 3.2, 1x USB 2.0 (Rear)

1x Thunderbolt 4, 1x Thunderbolt 3, Dual HDMI 2.0b w/HDMI CEC, Dual DP 1.4a via Type C Multi 4-Monitor Support

2-Year Warranty by Techno Intelligence & Free Tech Support, TPM 2.0 Security, Kensington Lock

Specifications

Processor
11th Gen Intel Core i5-1135G7 Quad-Core (up to 4.20 GHz)
Memory
32GB DDR4 3200 MHz
Storage
4TB SSD
Graphics
Intel Iris Xe Graphics
Operating System
Windows 10 Pro
Wireless
Intel Wi-Fi 6 AX 201
Bluetooth
5.0
Max Monitors Supported
4

Frequently Asked Questions

The NUC11TNHi5 supports up to four monitors simultaneously using its available display outputs, making it suitable for multi-display workstation setups.
The NUC 11 Pro Kit includes HDMI and Thunderbolt/USB-C ports capable of video output. The exact combination depends on the rear and side port configuration, supporting up to four displays total via Intel Iris Xe Graphics.
This configuration uses SSD storage totaling 4TB. The NUC 11 Pro chassis supports M.2 slots and a 2.5-inch drive bay, so the specific drive arrangement may vary in this pre-configured unit.
Yes. Intel NUC mini PCs include VESA mount compatibility, allowing the unit to be attached to the back of a compatible monitor for a clean, space-saving setup.
Yes. The 11th Gen Core i5-1135G7 meets Windows 11 hardware requirements, including TPM 2.0 support, so the system can be upgraded to Windows 11.
