Intel

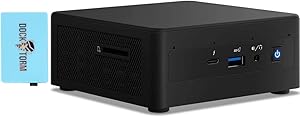

Intel NUC11PAHi7-3098-227713 i7 16GB RAM 128GB SSD Mini PC
i7-1165G716GB RAM16GB DDR4128GB SSD500GB HDD
A quad-core i7-1165G7 and dual-storage configuration in a 4.41 x 4.6-inch footprint — NUC11 performance without desktop space requirements.
$124.00*$1,249.00Save 90%
Check availability
*Price sourced from Amazon.com. Last updated:Jul 15, 2026.Price and availability are subject to change.
Affiliate Disclosure: Studio Supplies may earn a commission from qualifying purchases made through links on this page, at no additional cost to you. This helps support our editorial team.
Notice a mistake? Let Us Know
Overview
Key Features
【Upgraded】 Seal is opened for Hardware/Software upgrade only to enhance performance. No Display ; Wi-Fi 6 AX201 Wifi, Bluetooth 5.2, Ethernet LAN (RJ-45), No Webcam, .
【Powerful Performance with Intel Core i7-1165G7 Quad Core】 11th Gen Intel Core i7-1165G7 2.80GHz Processor (upto 4.7 GHz, 12MB Cache, 4-Cores) ; Integrated Graphics Integrated Graphics, .
【High Speed and Multitasking】 16GB DDR4 SODIMM; 120W Power Supply; Black Color, .
【Enormous Storage】 128GB SATA SSD + 500GB HDD; 1 HDMI, 1 mini Display Port, 2 Thunderbolt 3 (Type-C), SD Reader, No Optical Drive, Headphone/Microphone Combo Jack., Windows 11 Home., 1 Year Manufacturer warranty from GreatPriceTech (Professionally upgraded by GreatPriceTech)
Includes Dockztorm USB Hub(Special Edition Portable Docztorm Data Hub;Super Speedy Data Syn Rate upto 5Gbps)
Specifications
Brand
Intel
Model
NUC11PAHi7-3098-227713
Processor
Intel Core i7-1165G7, 2.80GHz (up to 4.7 GHz), 4-Core, 8-Thread, 12MB Cache
Memory
16GB DDR4 SO-DIMM
Primary Storage
128GB m.2 SATA SSD
Secondary Storage
500GB HDD (2.5")
Graphics
Intel Iris Xe (Integrated)
Operating System
Windows 11 Home
Wireless
Wi-Fi 6 AX201, Bluetooth 5.2
Wired Network
Ethernet LAN (RJ-45)
Ports
1x HDMI, 1x Mini DisplayPort, 2x Thunderbolt 3 (Type-C), SD Card Reader, Headphone/Microphone Combo Jack
Power Supply
120W
Color
Black
Dimensions
4.41" x 4.6" x 2.01"
Weight
1.21 lbs
Pros & Cons
👍 Pros
- The i7-1165G7's 4.7 GHz single-core boost handles burst workloads — browser tabs, document processing, video calls — faster than the clock-limited processors typical of budget mini PCs.
- The 4.41 x 4.6 x 2.01-inch chassis at 1.21 lbs is genuinely pocketable, enabling deployment on back-of-monitor VESA mounts, inside AV racks, or in space-constrained kiosk installations.
- Four simultaneous display outputs via HDMI, Mini DisplayPort, and dual Thunderbolt 3 ports provide multi-monitor density unavailable in most small form factor systems.
- Wi-Fi 6 AX201 and Bluetooth 5.2 provide current-generation wireless standards, avoiding the legacy connectivity limitations of older NUC revisions.
- The included Dockztorm USB hub extends the port count immediately, addressing the NUC's limited external USB surface without additional purchases.
👎 Cons
- The 128GB SATA SSD is a narrow OS partition — active users with multiple application installations, large browser profiles, or development environments will encounter storage pressure rapidly.
- Integrated Iris Xe graphics draws from the 16GB system memory pool, reducing effective RAM available to applications and eliminating GPU-accelerated compute tasks entirely.
- The SATA SSD interface caps sequential read/write performance at approximately 550/500 MB/s — a meaningful bottleneck compared to the PCIe NVMe speeds found in competing mini PCs at similar price points.
- No display is included, and the compact chassis provides no integrated panel — this NUC requires an external monitor, keyboard, and mouse, adding to the total cost of ownership.
- The 4-core configuration hits a hard ceiling on heavily threaded workloads like video encoding or data processing pipelines that benefit from 8+ cores.
Frequently Asked Questions
What are the actual performance characteristics of the i7-1165G7 in this NUC, and what workloads does it handle well?
The i7-1165G7 is a 4-core/8-thread Tiger Lake processor with a 2.80 GHz base and 4.7 GHz single-core boost, paired with Iris Xe integrated graphics. It handles office productivity, web workloads, light photo editing, and 4K video playback with ease. It is not suited for GPU-intensive tasks — the integrated Iris Xe has no dedicated VRAM and shares system memory bandwidth.
How does the 128GB SATA SSD + 500GB HDD storage configuration affect day-to-day performance?
The 128GB m.2 SATA SSD handles OS and application loads — SATA SSDs deliver sequential read speeds around 500–550 MB/s, which is substantially faster than the HDD but slower than PCIe NVMe configurations. The 500GB HDD provides secondary capacity for files and media at standard rotational speeds (likely 5400 RPM). Boot and application launch performance is determined by the SSD; large file transfers to or from the HDD will be the system's primary I/O bottleneck.
Does this NUC support dual 4K monitor output?
Yes. The NUC11PAHi7 provides one HDMI and one Mini DisplayPort for dual external display output, both capable of 4K resolution. The two Thunderbolt 3 Type-C ports can also drive additional displays via DisplayPort Alt Mode, enabling up to four simultaneous displays — a capability rarely found in a 1.21 lb form factor.
Is the 16GB DDR4 SO-DIMM soldered or upgradeable?
NUC11 units use SO-DIMM slots, not soldered memory, meaning the 16GB DDR4 can be replaced with higher-capacity modules if the user's workload outgrows it. The NUC11PAHi7 supports up to 64GB DDR4 across two SO-DIMM slots.
What does Wi-Fi 6 AX201 provide over the previous Wi-Fi 5 standard in this form factor?
Wi-Fi 6 (802.11ax) via the AX201 module delivers up to 2.4 Gbps theoretical throughput on compatible routers, versus 867 Mbps for typical Wi-Fi 5 configurations. In practice, the AX201's 2x2 antenna configuration in the NUC's compact chassis benefits most from reduced latency and improved performance in congested multi-device environments rather than raw throughput gains.
