Intel

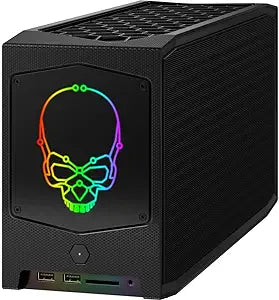

Intel RNUC11BTM NUC 11 Extreme Mini PC - i9, RTX 1660, 32GB RAM
★★★★★
8ki9-11900KB32GB RAM32GB DDR465W
Compact Gaming Beast with Extreme PerformanceIntroducing the Intel 2022 NUC 11 Extreme, a mini PC delivering uncompromising gaming performance in a small form factor. Featuring an Intel Core i9 processor, dedicated NVIDIA GeForce RTX graphics, and ample memory and storage, this NUC is ready to ta...
$224.00*$2,249.99Save 90%
Check availability
*Price sourced from Amazon.com. Last updated:Jul 21, 2026.Price and availability are subject to change.
Affiliate Disclosure: Studio Supplies may earn a commission from qualifying purchases made through links on this page, at no additional cost to you. This helps support our editorial team.
Notice a mistake? Let Us Know
Overview
Compact Gaming Beast with Extreme Performance
Introducing the Intel 2022 NUC 11 Extreme, a mini PC delivering uncompromising gaming performance in a small form factor. Featuring an Intel Core i9 processor, dedicated NVIDIA GeForce RTX graphics, and ample memory and storage, this NUC is ready to tackle the most demanding games and applications. Includes a Rock eDigital USB drive for added convenience.
- Processor: 11th Generation Intel Core i9-11900KB 3.30 GHz (up to 4.90 GHz, 8 Cores, 16 Threads, 24 MB Cache, 65W)
- Storage: 1TB NVMe SSD
- Memory: 32GB DDR4 RAM
- Graphics: NVIDIA GeForce RTX 1660 Super 6GB GDDR6
- Operating System: Windows 11 Pro
- Connectivity: Wi-Fi 6E AX210, Bluetooth 5 Combo, Intel 2.5Gb Ethernet
- Front Ports: 2x USB 3.2 (Gen 2) Type A
- Rear Ports: 2x Thunderbolt 4 (USB-C), 6x USB 3.2 (Gen 2) Type-A, 1x HDMI2.0, 1x mini-Display Port (up to 8k), 1x RJ45
- Graphics Ports: DisplayPort, HDMI
- M.2 Slots: 2x PCIe 4.0 x4, 2x PCIe 3.0 x4
- PCI Expansion: 1x PCIe 4.0 x16, 1x PCIe 4.0 x4
- Power Supply: Internal 650W 80+ Gold
- Dimensions: 14.06" x 7.44" x 4.72"
- Lighting: RGB Lighting
- Accessory: Rock eDigital 32GB Flash Drive
Key Features
【Powerful Performance with Intel Core 11900B】Intel NUC 11 Extreme Mini PC, powered by latest 11th Generation Intel Core i9-11900KB Processor (3.30 GHz, up to 4.90 GHz with Turbo Boost, 8 Cores, 16 Threads, 24 MB Smart Cache, 65W)
【Customization】Seal is opened for Hardware/Software upgrade only to enhance performance. Upgraded to 32GB DDR4 3200Mhz RAM, 1TB M.2 Solid State Drive, No Optical Drive.
【Graphics】NVIDIA Geforce 1660 Super with 6GB dedicated GDDR6, new streaming multiprocessors, and high-speed G6 memory. Supporting 3 x Monitors with display ports and HDMI.
【Connectivity】Intel Wi-Fi 6E AX210 802.11AX (2 x 2) capable of Gigabits/s and Bluetooth 5 Combo. Intel 2.5Gb Eithernet. Front Ports: 2 x USB 3.2 (Gen 2) Type A. Rear Ports: 2 x Thunderbolt 4 (thru USB-C), 6 x USB 3.2 (Gen 2) Type-A, 1 x HDMI2.0, 1 x mini-Display Port (up to 8k), 1 x RJ45. Supports up to 4 M.2 SSDs. 1 x PCIe x16 (occupied by graphics card) and 1x PCIe x4 (available).
【Rock eDigital Enhancement】Upgraded to Windows 11 Professional, Mini PC form factor, measured only 14.06" x 7.44" x 4.72" (D x H x W). Black color with RGB lighting. 3-year global warranty for system boards through Intel, 1-year warranty for memory and storage through seller, 650W internal 80+ Gold Power supply. Free Rock eDigital 32GB USB Drive. (Monitor, Keyboard and Mouse not included)
Specifications
Processor
11th Generation Intel Core i9-11900KB
Processor Base Clock
3.30 GHz
Processor Max Turbo Frequency
Up to 4.90 GHz
Processor Cores / Threads
8 Cores, 16 Threads
Processor Cache
24 MB Smart Cache
Processor TDP
65W
RAM
32GB DDR4 3200Mhz
Storage
1TB M.2 Solid State Drive
Graphics Card
NVIDIA Geforce 1660 Super 6GB GDDR6
Multi-Monitor Support
Supports 3 Monitors (Display Ports, HDMI)
Wireless Connectivity
Intel Wi-Fi 6E AX210 802.11AX (2 x 2), Bluetooth 5 Combo
Wired Connectivity
Intel 2.5Gb Ethernet
Front USB Ports
2 x USB 3.2 (Gen 2) Type A
Rear USB Ports
6 x USB 3.2 (Gen 2) Type-A
Thunderbolt Ports
2 x Thunderbolt 4 (thru USB-C)
Video Output Ports
1 x HDMI2.0, 1 x mini-Display Port (up to 8k)
Network Port
1 x RJ45
Expansion Slots
1 x PCIe x16 (occupied), 1x PCIe x4 (available)
M.2 SSD Support
Supports up to 4 M.2 SSDs
Operating System
Windows 11 Professional
Form Factor
Mini PC
Dimensions
14.06" x 7.44" x 4.72" (D x H x W)
Power Supply
650W internal 80+ Gold
System Board Warranty
3-year global warranty through Intel
Memory/Storage Warranty
1-year warranty through seller
Included Accessory
Free Rock eDigital 32GB USB Drive
Frequently Asked Questions
What processor is featured in the Intel RNUC11BTM NUC 11 Extreme Mini PC?
This Intel NUC 11 Extreme Mini PC is powered by an 11th Generation Intel Core i9-11900KB Processor, boasting 8 Cores, 16 Threads, and a base clock of 3.30 GHz.
What graphics card is included for gaming and visual tasks?
It comes with an NVIDIA GeForce GTX 1660 Super graphics card with 6GB of dedicated GDDR6 memory, supporting up to 3 monitors with its display ports and HDMI.
How much RAM and storage are installed in this Mini PC?
The system is upgraded with 32GB DDR4 3200Mhz RAM and includes a fast 1TB M.2 Solid State Drive for storage.
What are the main connectivity features of this Intel NUC 11 Extreme?
Connectivity includes Intel Wi-Fi 6E AX210, Bluetooth 5 Combo, Intel 2.5Gb Ethernet, 2 Thunderbolt 4 ports, and 6 USB 3.2 (Gen 2) Type-A ports.
Does this Mini PC come with an operating system and a warranty?
Yes, it is upgraded to Windows 11 Professional. It has a 3-year global warranty for system boards through Intel and a 1-year warranty for memory and storage through the seller.
