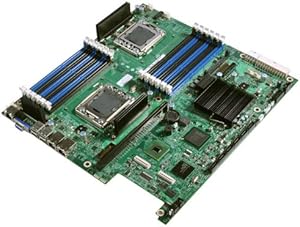

Intel S5520URT Server Board Dual Xeon DDR3

Unleash Server Performance with Dependable Reliability

Introducing the Intel S5520URT Server Board, engineered to deliver robust performance and dependable operation for critical server applications. This board supports a wide range of Intel Xeon processors, ensuring scalability and efficiency for your data center needs.

• Supported Processors: One or two Intel Xeon Processor 5500 Series (4.8 GT/s, 5.86 GT/s, or 6.4 GT/s Intel QPI, up to 95W TDP); One or two Intel Xeon Processor 5600 Series (6.4 GT/s Intel QPI, up to 130W TDP, EVRD 11.1)
• Memory: Supports 800/1066/1333 MT/s ECC Registered (RDIMM) or Unbuffered (UDIMM) DDR3 memory; 12 DIMM slots (6 memory channels - 3 channels per processor)
• Chipset: Intel 5520 Chipset IOH, Intel 82801Jx I/O Controller Hub (ICH10R)
• External I/O: DB-15 Video connector, RJ-45 serial Port A connector, Two RJ-45 Network Interface Connectors (10/100/1000 Mb), Four USB 2.0 connectors
• Internal I/O: One USB 2x5 pin header (two USB 2.0 ports), One low-profile USB 2x5 pin header (low-profile USB SSD support), One DH-10 Serial Port B header, Six SATA II connectors, Two I/O module Mezzanine connectors (optional I/O Module support), One RMM3 connector (optional Intel Remote Management Module 3), SATA SW RAID 5 Activation Key Connector, One SSI-EEB compliant front panel header, One SSI-EEB compliant 24-pin main power connector, One SSI-compliant 8-pin CPU power connector, One SSI-compliant power supply SMBus connector
• System Fan Support: Six 4-pin fan headers (2 processor fans, 2 memory fans, up to 2 system fans), One 26-pin custom system fan header (Intel Server Chassis)
• Add-in Adapter Support: One riser slot (full-height and low-profile 1U and 2U PCI Express riser cards)
• Video: On-board ServerEngines, LLC Pilot II Controller Integrated 2D Video Controller, 32 MB DDR2 Memory
