Middle Atlantic

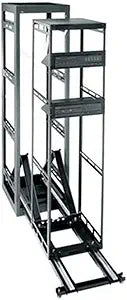

Middle Atlantic AXS-28 28U 20" Depth In-Wall Rack System
Middle Atlantic AXS-28 delivers 28U of rack space inside your wall with a slide-out design rated for 650 lbs.
View price on Amazon
Affiliate Disclosure: Studio Supplies may earn a commission from qualifying purchases made through links on this page, at no additional cost to you. This helps support our editorial team.
Notice a mistake? Let Us Know
Overview
Optimize Your AV Setup with the Middle Atlantic AXS-28 In-Wall System
The Middle Atlantic AXS-28 In-Wall System is engineered to provide a robust and space-efficient solution for rack-mounting equipment within walls. Designed with ease of installation and serviceability in mind, this system offers exceptional strength and cable management capabilities, making it an ideal choice for both residential and commercial AV installations.
Specifications
- Rack Spaces: 28U
- Model: Standard
- Depth: 20"
- Mounting Type: 10-32 Threaded
- Frame Type: Open
- Finish: Black
- Wheels Included: Yes
- Slide-Out: Yes
- Weight Capacity: 650 lbs (with proper weight distribution)
- Application: IT/Data centers, Commercial Use
- Service Tracks: Built-in level
- Corner Joint: Mechanically interlocking
- Service Stand: Telescoping
- Cable Carriers: Articulating
- Rack Frame: Removable
- Overall Product Weight: 61.75 lbs
- Overall Width: 19.25"
- Overall Depth: 20"
Key Features
20 dp ax-s, 28 space _DELETE_
Package Dimension
54 inches L x 23 inches W x 19 inches H
Country of Origin
CHINA
Item Package Weight
71.6 pounds
Pros & Cons
👍 Pros
- Slide-out design with telescoping service stand provides full front and rear access to equipment without wall removal.
- 650 lb weight capacity supports heavy loads of professional AV and IT gear.
- Articulating cable carriers and built-in service tracks simplify cable management in a confined wall space.
- Mechanically interlocking corner joints provide structural rigidity without relying solely on fasteners.
- Wheels are included, making it easier to position and slide the rack during installation.
👎 Cons
- Requires a wall cavity deep enough to accommodate the 20-inch rack depth plus cabling clearance, limiting placement options.
- At 61.75 lbs before any equipment is installed, the unit itself is heavy and typically requires two people to install.
- Open frame design does not provide the dust protection or physical security of a fully enclosed rack cabinet.
- In-wall installation is permanent and complex, making future relocation significantly more difficult than freestanding racks.
- 19.25-inch overall width is designed for standard 19-inch equipment only, with no flexibility for non-standard gear.
Frequently Asked Questions
How much equipment can the AXS-28 hold?
It provides 28 rack units (28U) of mounting space with a weight capacity of 650 lbs when weight is properly distributed, accommodating a substantial amount of AV or IT equipment.
Does the AXS-28 slide out from the wall for servicing?
Yes, the system features a slide-out design with a telescoping service stand, allowing full access to the front and rear of mounted equipment without removing the rack from the wall cavity.
What mounting thread type does this rack use?
It uses 10-32 threaded mounting holes, which is the most common standard for rack-mount equipment in AV and IT applications.
How deep is the wall cavity needed for installation?
The rack has a 20-inch depth, so the wall cavity must accommodate at least that depth plus additional clearance for cables and airflow behind the equipment.
Does the AXS-28 include cable management features?
Yes, it includes built-in service tracks, articulating cable carriers, and a removable rack frame to simplify cable routing and organization during installation and servicing.
