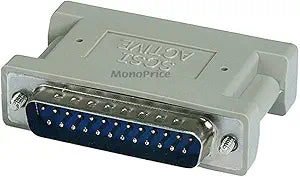

Monoprice 100814 DB25M Active SCSI Terminator
Ensure Signal Integrity with Active Termination The Monoprice DB25M SCSI Terminator is an active terminator designed to minimize signal reflections and interference in SCSI systems. It features a voltage regulator to compensate for power variations, ensuring reliable performance. Type: Ac...
Check availability
Affiliate Disclosure: Studio Supplies may earn a commission from qualifying purchases made through links on this page, at no additional cost to you. This helps support our editorial team.
Notice a mistake? Let Us Know
Overview
Ensure Signal Integrity with Active Termination
The Monoprice DB25M SCSI Terminator is an active terminator designed to minimize signal reflections and interference in SCSI systems. It features a voltage regulator to compensate for power variations, ensuring reliable performance.
- Type: Active Terminator
- Connector: DB25 Male
- Function: Reduces interference by preventing RF signal reflections
- Application: SCSI Systems
- Feature: Voltage regulator for power variation compensation
Key Features
Terminators reduce interference on a system by preventing RF signals at the end of an open line from being reflected back
They are placed at the end of a daisy chain line to match impedance and minimize reflection
An active terminator is a one with a voltage regulator to compensate for variations in power
This external terminator is single sided and features a DB 25 pin male connector
Specifications
Type
Active SCSI Terminator
Connector Type
DB25 Pin Male
Termination
Single Sided
Function
Reduces interference, matches impedance
Pros & Cons
👍 Pros
- Reduces signal interference on SCSI systems by preventing reflections at open line ends.
- Enhances data integrity by matching impedance, leading to minimized reflection in the daisy chain.
- Features an active termination design with a voltage regulator, compensating for power fluctuations.
- Designed for external application, making it easy to install and remove from the SCSI chain.
- Equipped with a common DB25 pin male connector, suitable for many SCSI devices.
👎 Cons
- Specifically designed for SCSI systems, limiting its applicability to other interface types.
- Only features a DB25 pin male connector, which may not be compatible with all SCSI setups.
- Being a single-sided terminator, it might not be ideal for complex, multi-ended SCSI configurations.
- Relies on a voltage regulator, which could potentially introduce another point of failure compared to passive terminators.
- Requires proper placement at the end of a daisy chain line, which demands specific setup knowledge.
Frequently Asked Questions
What is the primary function of this Monoprice SCSI Terminator?
The primary function is to reduce interference on a SCSI system by preventing RF signals from reflecting back at the end of an open line.
What type of connector does this terminator use?
This external terminator features a DB25 pin male connector, making it compatible with devices that have a corresponding female port.
What does "active terminator" mean in the context of this product?
An active terminator, like this one, includes a voltage regulator designed to compensate for variations in power, providing more stable termination.
Where should this terminator be placed in a SCSI setup?
It should be placed at the end of a daisy chain line to effectively match impedance and minimize signal reflection.
Is this terminator suitable for all types of SCSI connections?
This terminator is designed with a DB25 pin male connector for specific SCSI setups; compatibility depends on the ports available on your SCSI devices.
