Nady

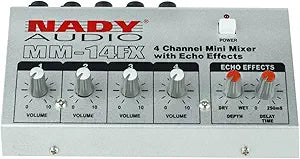

Nady MM14FX 4-Channel Mic Mixer - Echo Effect
★★★★★
Compact 4-channel mic mixer with built-in echo effect, battery or AC powered for portable audio mixing.
$43.99*
Check availability
*Price sourced from Amazon.com. Last updated:Jun 19, 2026.Price and availability are subject to change.
Affiliate Disclosure: Studio Supplies may earn a commission from qualifying purchases made through links on this page, at no additional cost to you. This helps support our editorial team.
Notice a mistake? Let Us Know
Overview
Key Features
4 mono 1/4" Microphone Inputs with individual volume controls mixed to one single 1/4" line level output.this mixer is not a stand-alone device, it should be connected to the amplifier
Compact design with a heavy-duty steel construction, smooth-turn ultra-stable pots, and high-quality jacks for lasting durability
The mixer delivers high-quality audio with up to 50dB of gain per channel, low distortion, a high signal-to-noise ratio, and a wide frequency response to bring out all of the details in your audio
Decay time and depth control knobs let you adjust the built-in echo DSP to simulate the decay reverb of rooms, halls, and stadiums
The front panel has an on/off switch with an indicator LED. The mixer can operate on a 9V battery, or via an optional external AC/DC adapter for terrific versatility
Though it can be used in many applications, the MM-14FX is designed for use with dynamic microphones. If using otherwise, please be aware that significant volume increases may incur some signal distortion.
Specifications
Brand
Nady
Model
MM14FX
Inputs
4 x 1/4" Mono Microphone
Output
1 x 1/4" Unbalanced Line Level
Max Gain
49.1dB (up to 50dB per channel)
Frequency Response
20Hz – 18kHz (±3dB)
THD + Noise
0.09%
S/N Ratio
-78dB
Input Impedance
5kΩ
Max Input Level
-13dBm
Sensitivity
-45dBm
Output Impedance
800Ω
Max Output Level
+6.5dBm
Noise Floor
300µV
Echo Effect
Built-in DSP with Delay Time and Depth Controls
Power
9V Battery (up to 20 hours) or Optional AC/DC Adapter (PAD-1)
Current Drain
35mA
Construction
Heavy-duty steel
Pros & Cons
👍 Pros
- Extremely compact and portable with heavy-duty steel construction
- Runs on a 9V battery for up to 20 hours, making it ideal for mobile setups
- Built-in echo DSP with adjustable decay time and depth adds reverb without external effects
- Up to 50dB of gain per channel with low distortion and high signal-to-noise ratio
- Individual volume controls on each of the four channels for precise level adjustment
👎 Cons
- Output is a single unbalanced 1/4" jack, requiring an external amplifier or powered speaker
- Uses 1/4" inputs only, so XLR microphones need an adapter
- Designed primarily for dynamic microphones and may distort with other mic types at high gain
- AC/DC adapter is sold separately
- No balanced outputs or built-in EQ beyond the echo effect
Frequently Asked Questions
Can I use condenser microphones with the Nady MM-14FX?
The MM-14FX is designed for use with dynamic microphones. Condenser mics may work but could introduce signal distortion at higher volume levels, and the mixer does not provide phantom power.
Does the mixer run on battery power?
Yes, it operates on a single 9V battery with up to 20 hours of life, or you can use the optional PAD-1 AC/DC adapter for continuous power.
Is this a standalone mixer I can plug speakers into directly?
No, the MM-14FX is not a standalone device. Its single 1/4" line-level output must be connected to an amplifier or powered speaker system.
What does the built-in echo effect do?
The echo DSP simulates room, hall, and stadium reverb decay. You can adjust the decay time and depth using two dedicated control knobs on the front panel.
What type of connectors does this mixer use?
It has four 1/4" mono microphone inputs and one 1/4" unbalanced line-level output.
