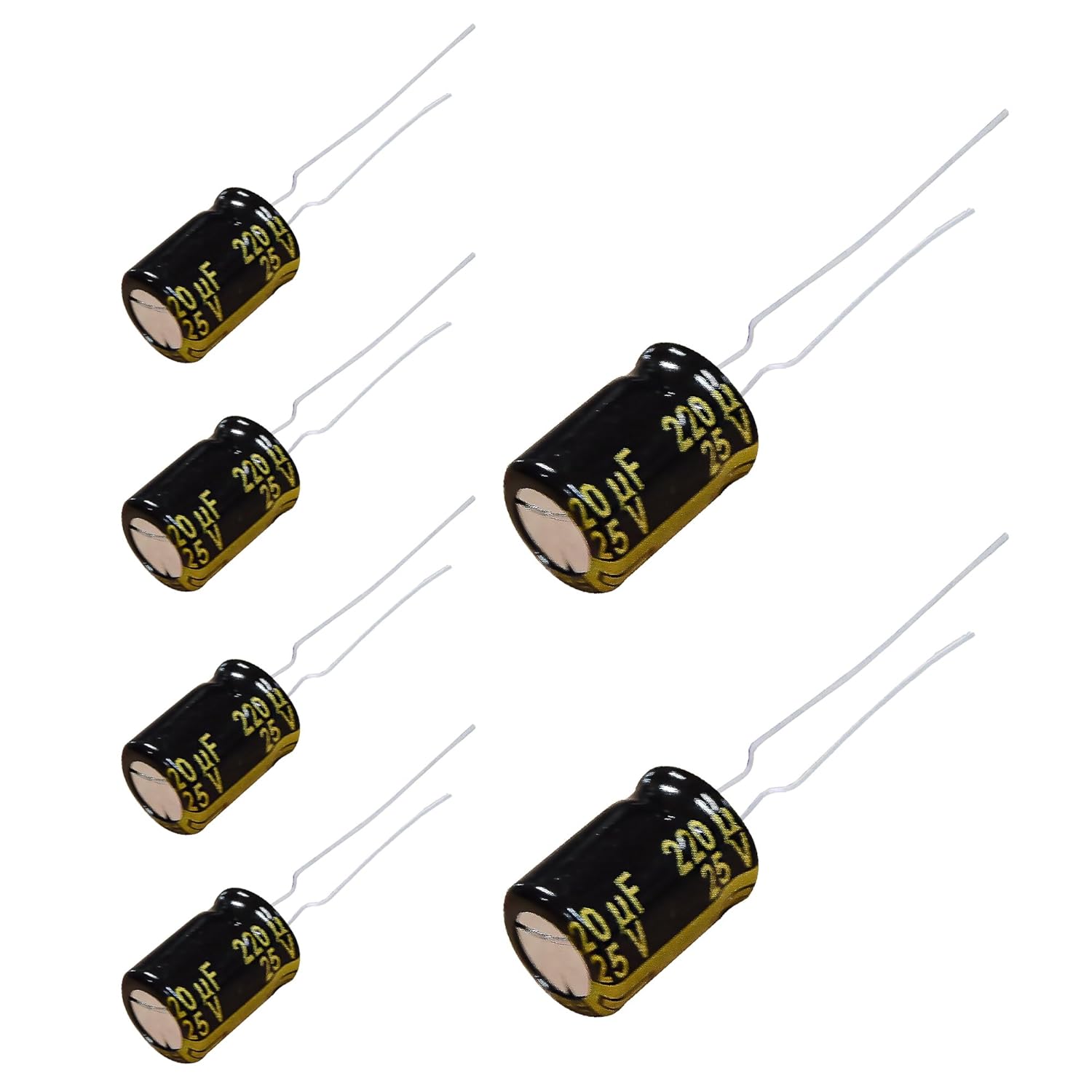

Panasonic FM Series Capacitors 25V 220uf Low ESR

The Panasonic FM Series 25V 220µF electrolytic capacitors are engineered for applications where low impedance and high ripple current handling are critical. With impedance ratings 40% to 70% lower than the standard Panasonic FC Series, these capacitors excel in power filtering, decoupling, and audio signal path applications. The 950 mA ripple current rating and 3000-hour endurance at 105°C make them a reliable choice for circuits that demand consistent performance under thermal stress.

Each capacitor in this six-piece set is a genuine Panasonic component (part number EEU-FM1E221), measuring 8 x 11.5mm with a 5mm lead spacing for straightforward through-hole installation. Whether you are recapping aging audio equipment, upgrading a power supply's output filtering, or building a custom circuit that demands stable, low-noise power delivery, these FM Series capacitors provide a meaningful performance improvement over general-purpose electrolytics at a compact size that fits most standard PCB footprints.
