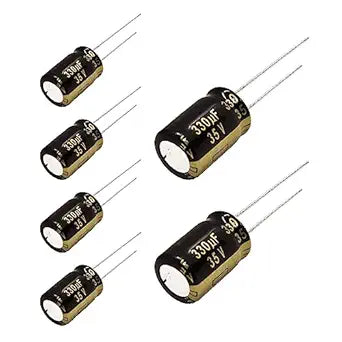

Panasonic FM Series 35V 330uf Low ESR Capacitors

The Panasonic FM Series 35V 330µF electrolytic capacitors are engineered for applications where low impedance and high ripple current handling are critical. With impedance ratings 40% to 70% lower than Panasonic's own FC Series, the FM line excels at filtering high-frequency noise in power supply circuits, audio equipment, and digital electronics. The 1790 mA ripple current rating means these capacitors can handle significant alternating current loads without overheating or degrading prematurely, making them a popular choice for demanding filtering and decoupling roles.

Measuring 10mm in diameter and 16mm tall with a 5mm lead spacing, these capacitors strike a balance between capacity and compactness. The 4,000-hour endurance rating at maximum temperature provides confidence in long-term reliability, whether they are used in a new build or as replacements in aging equipment. The FM Series has developed a strong reputation in the audio modification community, where enthusiasts use them to recap amplifiers, receivers, and DAC power supplies, often reporting audible improvements in clarity and reduced background noise. For general electronics work, they serve as a high-quality drop-in upgrade anywhere a 35V-rated 330µF electrolytic is needed.
