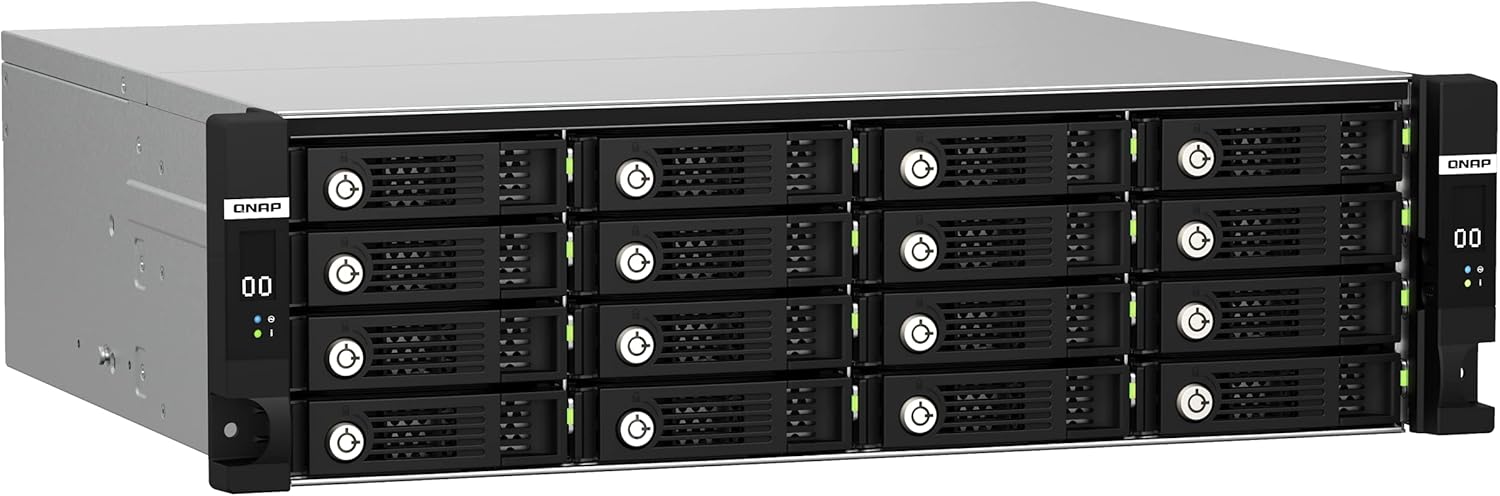

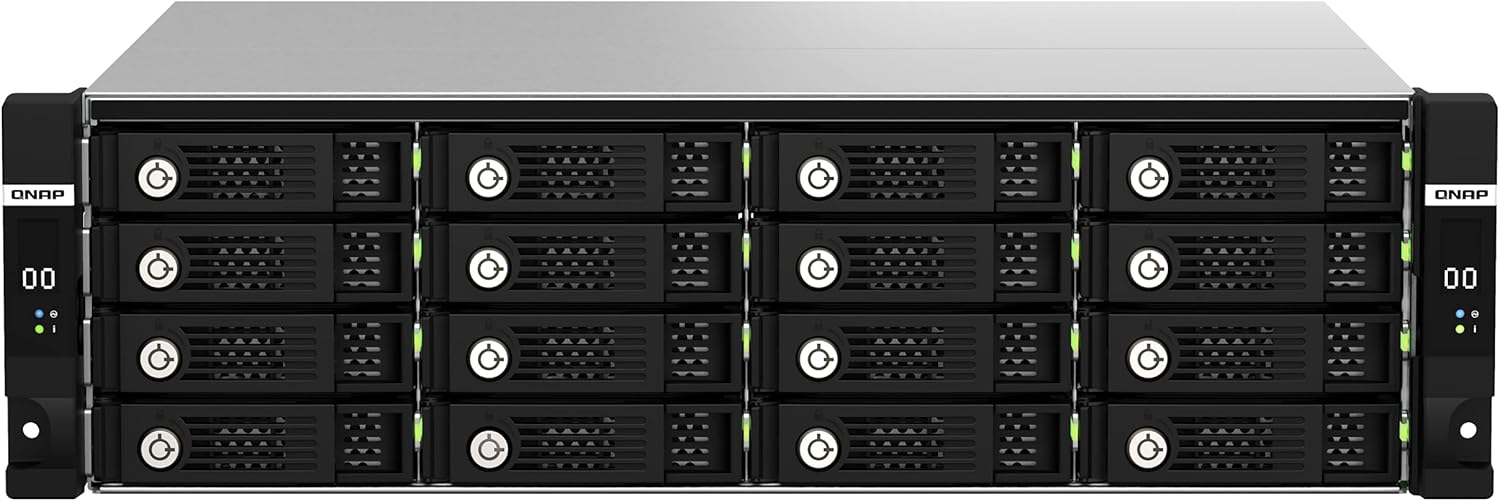

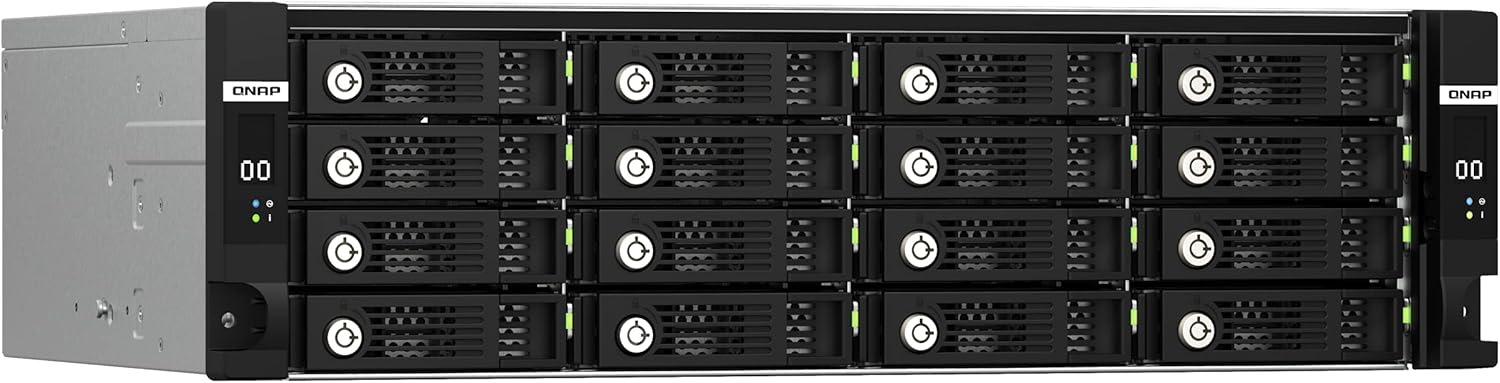

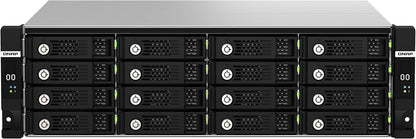

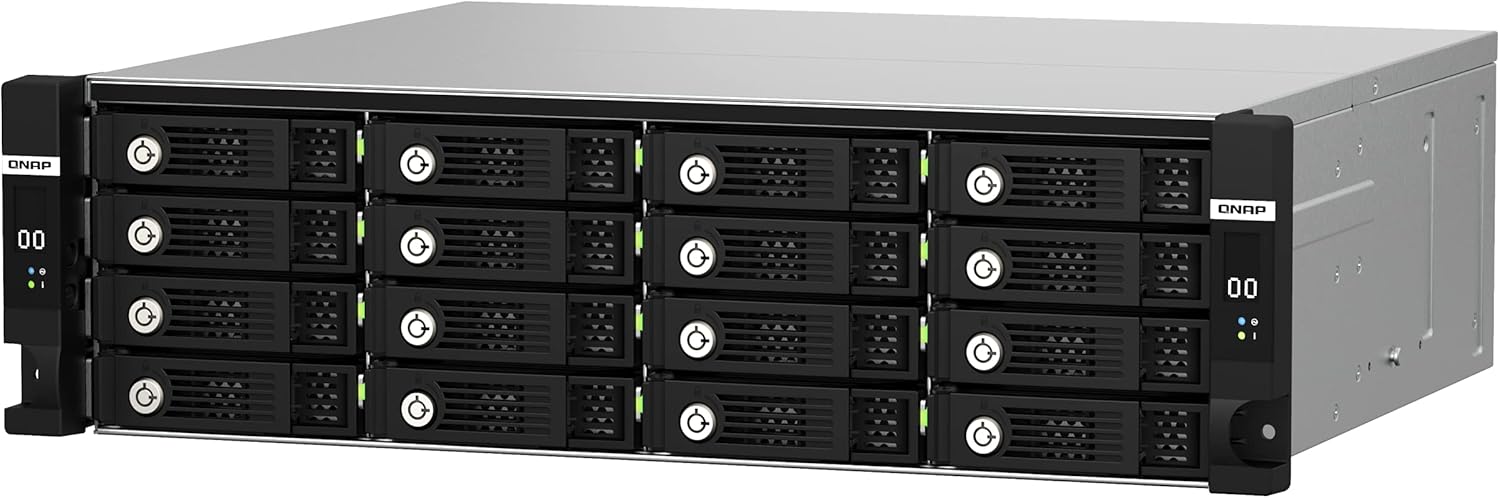

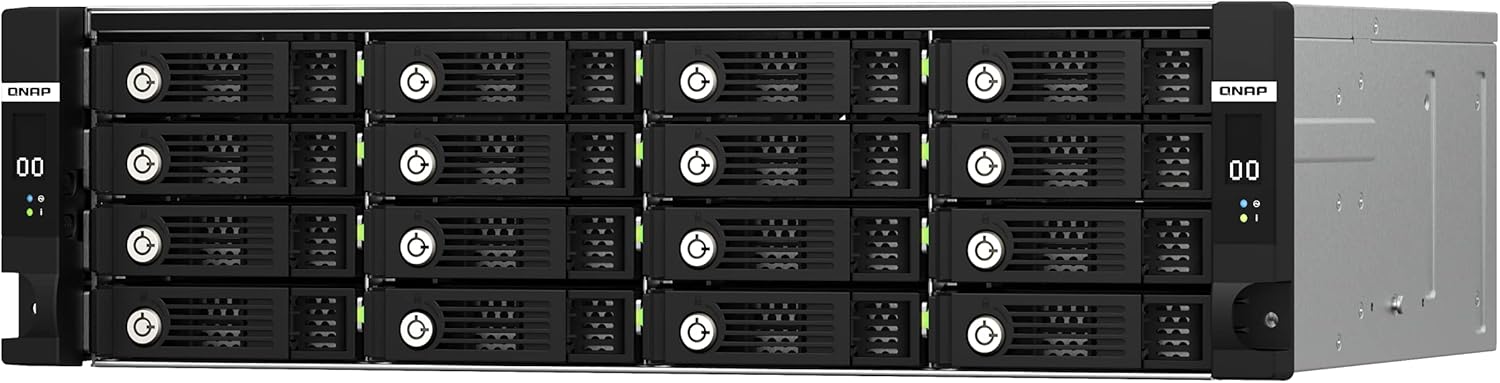

QNAP TL-R1620Sdc-US 16-Bay Dual-Controller SAS 12Gb/s JBOD

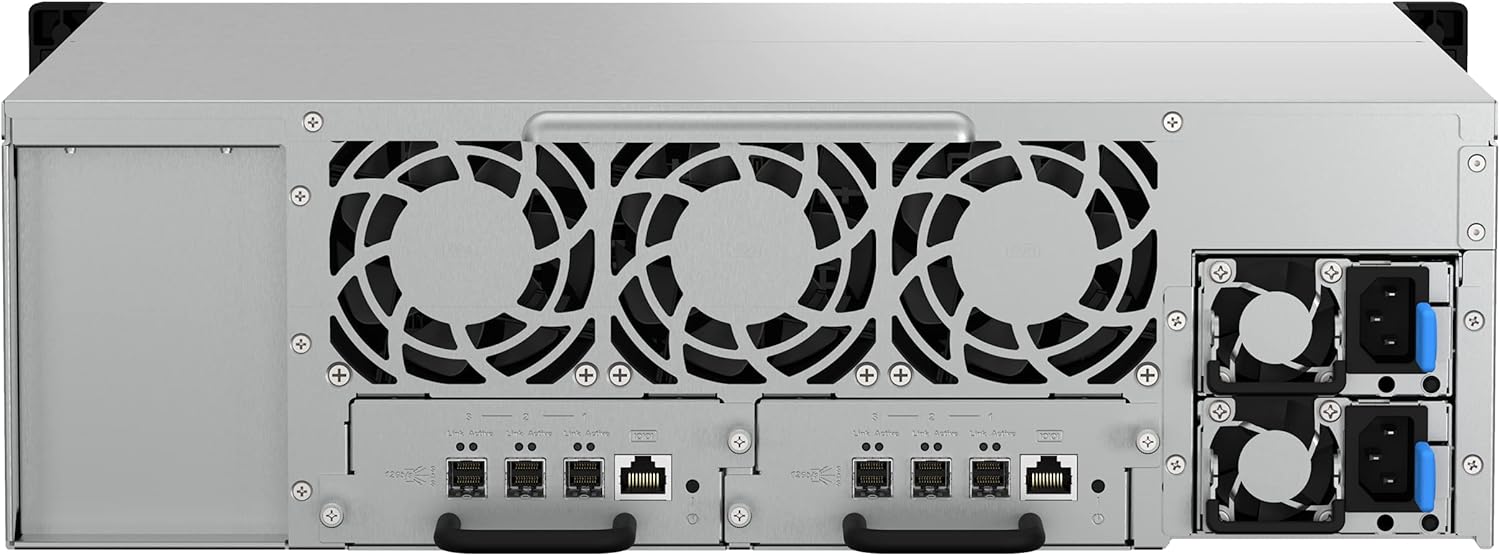

The QNAP TL-R1620Sdc is a 16-bay 3U rackmount JBOD expansion enclosure built around a dual-controller SAS 12Gb/s architecture. Each of its two independent controllers provides three Mini-SAS HD (SFF-8644) 4-wide ports — each wide port capable of carrying four 12Gb/s SAS lanes simultaneously — giving the host system substantial aggregate throughput for sequential and random workloads across 16 drives. Critically, "dual-controller" here isn't a marketing term: the two controllers operate independently, each maintaining its own data path to the host, so the enclosure can survive a complete controller failure without dropping access to the drive pool. The redundant hot-swap PSU extends that same no-single-point-of-failure philosophy to the power side of the chassis.

This enclosure is purpose-built for organizations running QNAP dual-controller NAS systems that have outgrown internal bay capacity and need to push toward petabyte-scale storage without rebuilding their infrastructure. The short-depth chassis addresses a real-world rack constraint — deep 3U enclosures are problematic in media cabinets or rows with heavy rear cabling, and the TL-R1620Sdc's compact footprint solves that without sacrificing bay count. For Windows Server shops, the S2D failover cluster capability opens the door to using this as a direct-attached expansion unit in high-availability Windows environments. It is a diskless enclosure, so total cost of ownership requires factoring in 16 SAS or SATA 3.5-inch drives plus the separately purchased RAIL-B02 rail kit — plan the full BOM before quoting a deployment.
