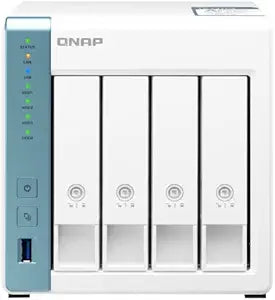

QNAP TS-431P3-2G 4-Bay NAS Home Office 2.5GbE Port
A quad-core 1.7GHz NAS with 2.5GbE connectivity that finally gives home and SMB storage the bandwidth to match modern drive arrays.
Check availability
Affiliate Disclosure: As an Amazon Associate, Studio Supplies earns from qualifying purchases made through links on this page, at no additional cost to you. This helps support our editorial team.
Notice a mistake? Let Us Know
Overview
Key Features
Annapurna Labs AL-314 Quad-core 1.7GHz processor
SIngle-port 2.5GbE
SIngle-port 1GbE
3 X USB 3.2 Gen1 ports
4GB SODIMM DDR3L Memory (Max 8GB)
4 x 3.5-inch SATA 6Gb/s, 3Gb/s (Diskless)
Specifications
Processor
Annapurna Labs Alpine AL-314 Quad-Core 1.7GHz
RAM
2GB DDR3L SODIMM (Max 8GB)
Drive Bays
4 x 3.5-inch SATA 6Gb/s / 3Gb/s
LAN Ports
1 x 2.5GbE, 1 x 1GbE
USB Ports
3 x USB 3.2 Gen1
Encryption
AES 256-bit (Hardware Accelerated)
Backup Options
Local, Remote, Cloud, Snapshot Protection
Form Factor
Desktop NAS (Diskless)
Frequently Asked Questions
What real-world throughput can the 2.5GbE port deliver, and what infrastructure do I need to use it?
2.5GbE supports up to ~280 MB/s theoretical throughput — roughly 2.5x the ceiling of gigabit. To realize that speed, your switch and client machine both need 2.5GbE ports. If your network is still 1GbE, the TS-431P3-2G falls back gracefully to 1GbE via its second port, but you won't see the bandwidth gain until you upgrade the network path.
Is the 2GB default RAM sufficient, and what is the upgrade ceiling?
The unit ships with 2GB DDR3L SODIMM and supports a maximum of 8GB via a single expansion slot. For basic SMB file serving and backup tasks, 2GB is workable. Running containerized applications or multiple simultaneous VMs in QNAP's virtualization layer will benefit from upgrading to 4GB or 8GB, as the AL-314 processor can be memory-bandwidth-limited before it hits CPU ceiling.
Which RAID configurations does the TS-431P3-2G support across its four bays?
The four 3.5-inch SATA bays support JBOD, RAID 0, RAID 1, RAID 5, RAID 6, and RAID 10. For a home or small office use case prioritizing data protection over raw capacity, RAID 5 across four drives gives a single-drive fault tolerance with 75% usable capacity.
Does this NAS support AES hardware encryption without a major performance penalty?
The Annapurna Labs AL-314 includes hardware-accelerated AES-256 encryption. Enabling volume encryption incurs a smaller throughput penalty than software-only encryption implementations, making it practical for always-on encrypted shares without saturating the CPU.
Can the TS-431P3-2G run QNAP's container and virtualization apps at this spec level?
It can run QTS Container Station for lightweight Docker containers, but the 1.7GHz quad-core AL-314 is ARM-based with modest integer throughput. Demanding workloads like multiple simultaneous transcodes or heavy containerized applications will hit CPU and memory limits. This platform is best suited to storage and backup roles with light app usage.
