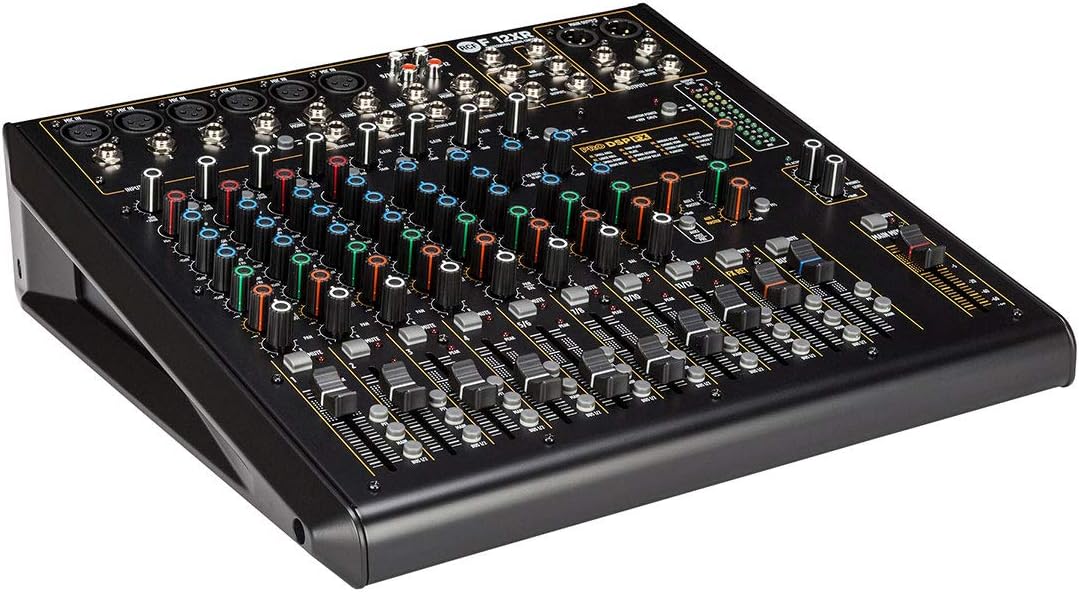

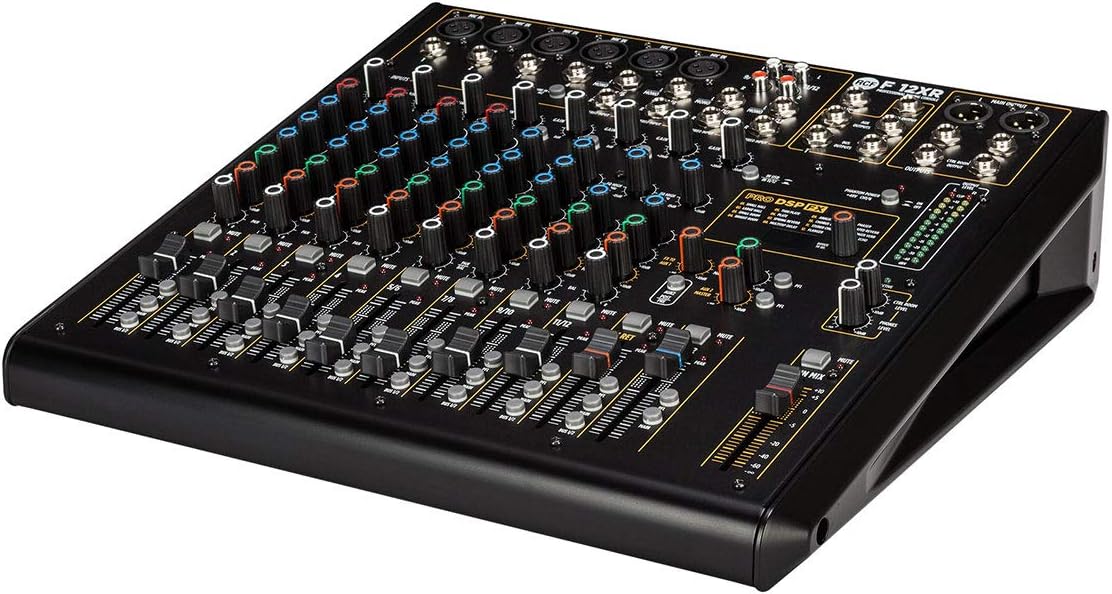

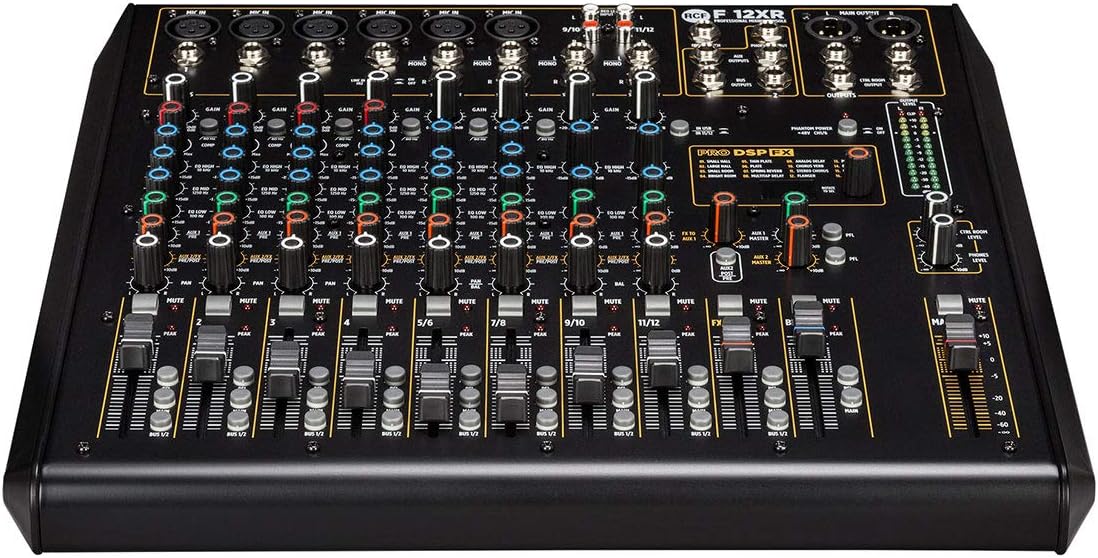

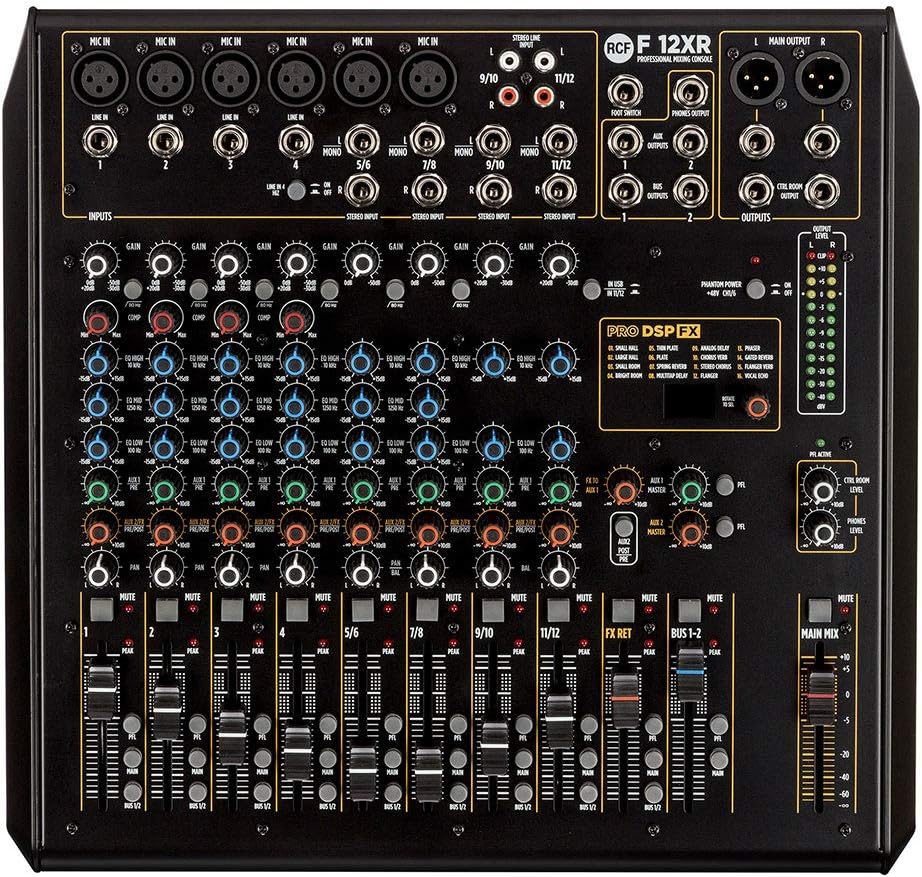

RCF F-12XR 12-Channel Mixer Console Multi-FX USB
9.92 lbs12.13 lbs
A 12-channel mixer with built-in DSP effects, USB recording, and Italian-engineered sound quality.
$579.00*
View on Amazon
✓ In Stock on Amazon.com
*Price sourced from Amazon.com. Last updated:Jun 19, 2026.Price and availability are subject to change.
Affiliate Disclosure: Studio Supplies may earn a commission from qualifying purchases made through links on this page, at no additional cost to you. This helps support our editorial team.
Notice a mistake? Let Us Know
Overview
Key Features
FEATURES Sturdy Metal Chassis || PRO DSP FX onboard with 16 presets || Stereo Recording and Playback via USB port || Balanced main output audio path from input to output || 4 single control compressors || Mono channels provided with 3-band EQ. 2-band EQ on stereo channels. || Robust, compact and attractive design. || Designed and Engineered in Italy || Internal Universal Power Supply ||

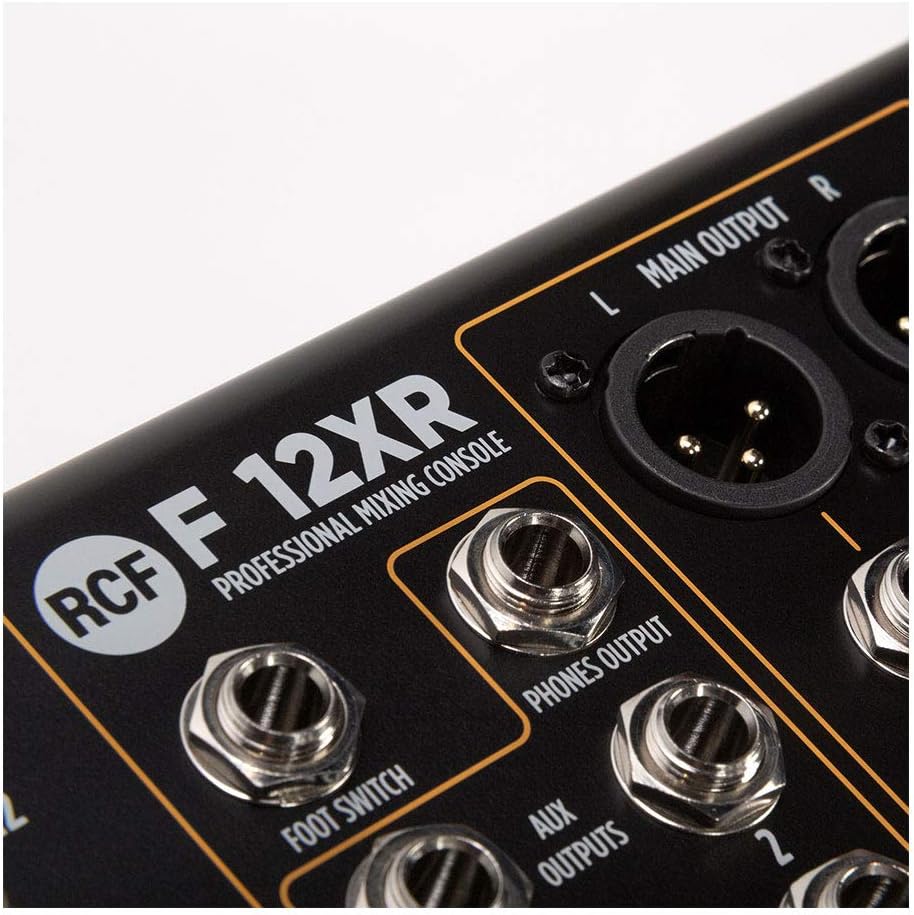

TECHNICAL SPECIFICATIONS Electronic specifications Frequency Response: 20 Hz ÷ 20 kHz || THD+N, 20dB gain, 0dBu out <0,02% A-Weighted || Processing Dynamic Range: > 85dB || Outputs specifications Main Out Level: 28 dBu || Aux Out Level: 28 dBu || Group Out Level: 28 dBu || Phones Out impedance (ohm): 150 ohm ||
PHYSICAL SPECIFICATIONS Cabinet/Case Material: Metal || Color: Black || SIZE :: || Height: 97 mm / 3.82 inches || Width: 373 mm / 14.69 inches || Depth: 355 mm / 13.98 inches || Weight: 4.5 kg / 9.92 lbs || SHIPPING INFORMATION :: || Package Height: 140 mm / 5.51 inches || Package Width: 400 mm / 15.75 inches || Package Depth: 425 mm / 16.73 inches || Package Weight: 5.5 kg / 12.13 lbs ||
RCF’s next generation F Series mixers builds on the rich analog legacy found in the professional E Series, featuring high quality sound in five formats from 6 to 24 channels. A powerful tool for the musician and the sound enthusiast, entirely conceived and designed by the RCF R&D team.
Housed in a sturdy metal chassis, each mixer features a full balanced audio path from input to output and the unique PRO DSP FX: 16 professional effects such as Reverbs (Halls, Rooms, Plates, Spring), Delays (Mono, Stereo and Multitap), Chorus, Flangers and Echoes. The models F- 10XR, F-12XR, F-16XR and F-24XR, include an USB audio interface, for stereo recording on computer-based DAW and 2-channel playback.
Specifications
Brand
RCF
Model
F-12XR
Channels
12
Effects
PRO DSP FX with 16 presets
USB
Stereo Recording and Playback
EQ (Mono Channels)
3-band
EQ (Stereo Channels)
2-band
Compressors
4 single control
Frequency Response
20 Hz – 20 kHz
THD+N
<0.02% A-Weighted
Dynamic Range
>85 dB
Main Out Level
+28 dBu
Phones Out Impedance
150 ohm
Chassis Material
Metal
Color
Black
Dimensions (W × D × H)
373 × 355 × 97 mm (14.69 × 13.98 × 3.82 in)
Weight
4.5 kg (9.92 lbs)
Power Supply
Internal Universal
Pros & Cons
👍 Pros
- 16 onboard DSP effects presets eliminate the need for external effects processors in many setups.
- USB audio interface enables direct stereo recording and playback with computer-based DAWs.
- Four built-in single-knob compressors provide convenient dynamics control without outboard gear.
- Fully balanced audio path from input to output ensures clean signal with minimal noise.
- Internal universal power supply keeps the setup tidy with no external adapter required.
👎 Cons
- At 4.5 kg and 373mm wide, it may be bulkier than compact digital mixers with similar channel counts.
- The USB interface is limited to stereo recording, so individual channel multitrack recording is not supported.
- Stereo channels only have 2-band EQ, which limits tonal control compared to the 3-band EQ on mono channels.
- The 16 DSP effect presets are fixed and cannot be custom-programmed or deeply edited.
Frequently Asked Questions
Can I record directly to a computer using this mixer?
Yes, the F-12XR includes a USB audio interface that supports stereo recording to any computer-based DAW, as well as 2-channel playback from your computer back through the mixer.
What types of effects are included in the onboard DSP?
The mixer includes 16 professional DSP effect presets covering reverbs (halls, rooms, plates, spring), delays (mono, stereo, multitap), chorus, flangers, and echoes.
Does this mixer require an external power supply?
No, the F-12XR features an internal universal power supply, so there is no external power brick to manage or misplace.
What EQ options are available on the channels?
Mono channels feature 3-band EQ for detailed tonal shaping, while stereo channels have 2-band EQ. Four channels also include single-knob compressors for dynamic control.
How durable is the build quality?
The F-12XR is housed in a sturdy metal chassis designed to withstand the demands of live performance and studio use, with a total weight of 4.5 kg (9.92 lbs).
