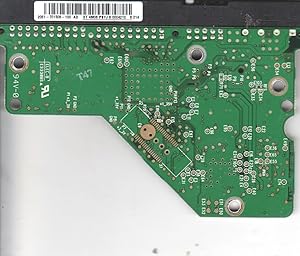

Western Digital PCB-WD5000AAJB-00YRA0 IDE 3.5 PCB — main product image
Western Digital

Western Digital PCB-WD5000AAJB-00YRA0 IDE 3.5 PCB

Replacement PCB board for the WD5000AAJB-00YRA0 hard drive, enabling data recovery and drive repair.

Check availability
Affiliate Disclosure: Studio Supplies may earn a commission from qualifying purchases made through links on this page, at no additional cost to you. This helps support our editorial team.

Notice a mistake? Let Us Know

Overview

The Western Digital PCB-WD5000AAJB-00YRA0 is a replacement printed circuit board designed specifically for the WD5000AAJB-00YRA0 IDE 3.5-inch hard drive. When a hard drive's PCB fails due to power surges, component degradation, or other electrical faults, the drive becomes completely inaccessible even though the data on the platters may be perfectly intact. This replacement board — identified by PCB sticker 2061-701508-100 and board number 2060-701508-001 REV A — allows technicians and knowledgeable users to swap out the failed electronics and potentially restore full access to the drive's data.

It is important to understand that modern Western Digital drives store unique adaptive calibration data on a ROM chip soldered to the PCB. This means a straightforward board swap alone is usually insufficient; the ROM chip from the original failed PCB typically needs to be desoldered and transferred to the replacement board, or the firmware data must be copied electronically. The seller offers a firmware transfer service for those who lack the tools or experience. Backed by a 30-day money-back guarantee and 30-day tech support, this PCB provides a practical and affordable alternative to professional data recovery services for drives with confirmed electronic failures.

Key Features

See full specs below in description

Firmware Transfer Service Available

30-Day Money Back Guarantee

30-Day Tech Support

Specifications

Brand
Western Digital
Compatible Drive Model
WD5000AAJB-00YRA0
PCB Sticker
2061-701508-100 AD
Board Number (PWB)
2060-701508-001 REV A
Interface
IDE (PATA)
Form Factor
3.5-inch

Pros & Cons

👍 Pros

  • Exact-match replacement board allows repair of drives with failed PCB electronics without costly cleanroom recovery.
  • Firmware transfer service is available, simplifying the ROM chip swap that most replacements require.
  • 30-day money back guarantee and 30-day tech support reduce the risk of purchasing the wrong board.
  • Enables data recovery from otherwise inaccessible drives at a fraction of professional recovery costs.

👎 Cons

  • Only compatible with the specific WD5000AAJB-00YRA0 model — PCB sticker and board number must match exactly.
  • Firmware transfer between the old and new PCB is usually required, adding complexity for users without soldering experience.
  • Will not fix drives with mechanical failures such as head crashes or platter damage.
  • IDE interface is a legacy standard, so modern systems may need an IDE-to-USB adapter to connect the repaired drive.

Frequently Asked Questions

Match both the PCB sticker number (2061-701508-100) and the main controller board number (2060-701508-001 REV A) with the numbers on your existing PCB. Both must match for compatibility.
In most cases, yes. Modern WD drives store unique calibration data on the original PCB's ROM chip, which typically needs to be transferred to the replacement board. A firmware transfer service is available from the seller.
No. This PCB only addresses electronic failures on the circuit board itself. If the drive has mechanical issues such as clicking or platter damage, a PCB replacement will not resolve those problems.
This is an IDE (PATA) interface PCB for 3.5-inch desktop hard drives, not SATA. Ensure your system supports IDE connections.
