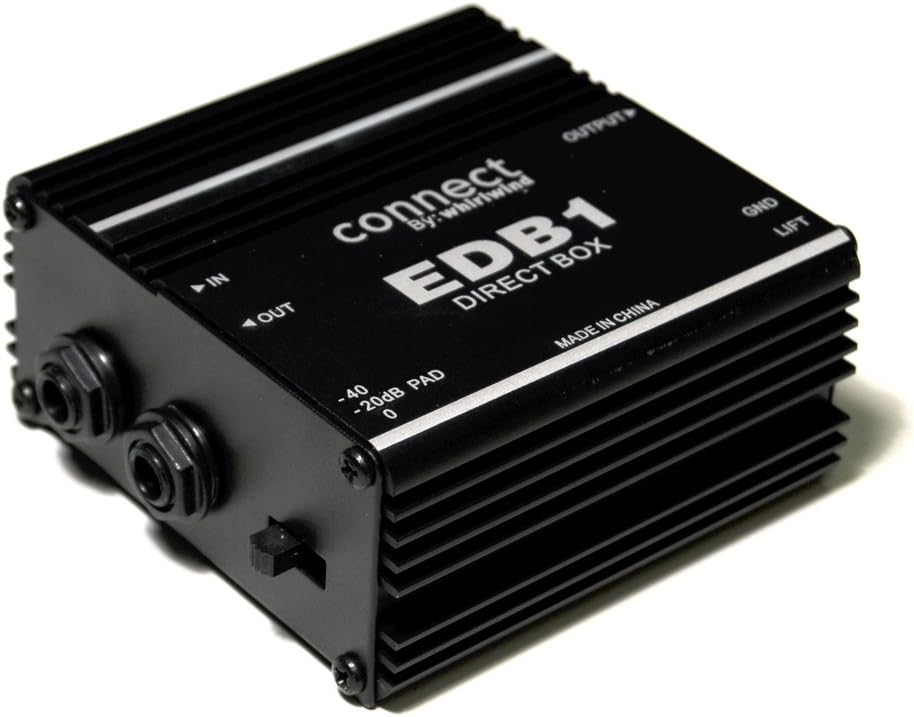

Whirlwind EDB1 Passive Instrument Direct Box

Name: Whirlwind EDB1 Passive Instrument Direct Box
Brand: Whirlwind
SKU: EDB1

Get Pristine Audio with the Whirlwind EDB1 Direct Box The Whirlwind EDB1 is your go-to solution for clean and balanced audio signal conversion. This passive direct box is essential for any musician or sound engineer looking to connect instruments directly to a mixing console without signal loss ...

$65.00*

✓ In Stock on Amazon.com

View on Amazon

*Price sourced from Amazon.com. Last updated:Aug 27, 2026.Price and availability are subject to change — details.

Affiliate Disclosure: As an Amazon Associate, Studio Supplies earns from qualifying purchases made through links on this page, at no additional cost to you. This helps support our editorial team.

Notice a mistake? Let Us Know

Overview

Get Pristine Audio with the Whirlwind EDB1 Direct Box

The Whirlwind EDB1 is your go-to solution for clean and balanced audio signal conversion. This passive direct box is essential for any musician or sound engineer looking to connect instruments directly to a mixing console without signal loss or unwanted noise. Encased in a rugged metal enclosure, the EDB1 is built to withstand the rigors of live performance and studio use.

Specifications:

Type: Passive Direct Box
Input: 1/4" In
Output: XLR Output
Through: 1/4" Through
Pad Switch: Yes, for "hot" signal sources
Ground Lift Switch: Yes, to isolate hum and buzz
Construction: Metal
Item Weight: 11.2 ounces
Product Dimensions: 7.3 x 6.9 x 2.1 inches
Color: Black

Key Features

Compact Direct Box with Pad

Specifications

Product Type

Passive Instrument Direct Box

Features

Pad

Frequently Asked Questions

What is the primary function of the Whirlwind EDB1 Passive Instrument Direct Box?

The primary function of this direct box is to take an unbalanced instrument signal and convert it into a balanced signal suitable for long cable runs to a mixer, often used in live or studio settings.

Does the EDB1 require batteries or phantom power to operate?

No, the EDB1 is a passive direct box, which means it operates without the need for external power sources like batteries or phantom power.

What is the purpose of the "Pad" feature on this direct box?

The "Pad" feature is used to attenuate or reduce the level of a high-output instrument signal, preventing it from overloading or clipping the input of a mixer or audio interface.

Can this direct box be used with microphones?

This product is specifically labeled as an "Instrument Direct Box," indicating its design and optimization are primarily for instrument-level signals rather than microphones.

Is the Whirlwind EDB1 suitable for both live performances and studio recording?

Yes, direct boxes like the Whirlwind EDB1 are commonly used in both live sound environments and studio recording to ensure a clean and properly balanced signal from instruments.

Strengths & Trade-offs

👍 Pros

This compact direct box is specifically designed for instruments, optimizing signal path for live or studio use.
Includes a pad feature, allowing attenuation of hot input signals to prevent clipping at the mixer.
Its passive design means it does not require phantom power or batteries to operate, simplifying setup.
The "compact" nature suggests it is highly portable and takes up minimal space on a stage or in a studio.
The direct box function helps to convert unbalanced instrument signals to balanced XLR outputs, reducing noise over long cable runs.

👎 Cons

As a passive direct box, it may not provide enough gain for very low-output instruments without an additional preamp.
The "compact" nature implies a minimalist feature set, potentially lacking additional functionalities like ground lift switches or multiple outputs.
The description states "with Pad," but specific dB attenuation values for the pad are not provided.
Limited to instrument-level signals, it may not be suitable for converting speaker-level outputs without additional features or precautions.
Being passive, it cannot actively buffer or boost the signal, which might affect instruments with high impedance pickups over very long cable runs.
