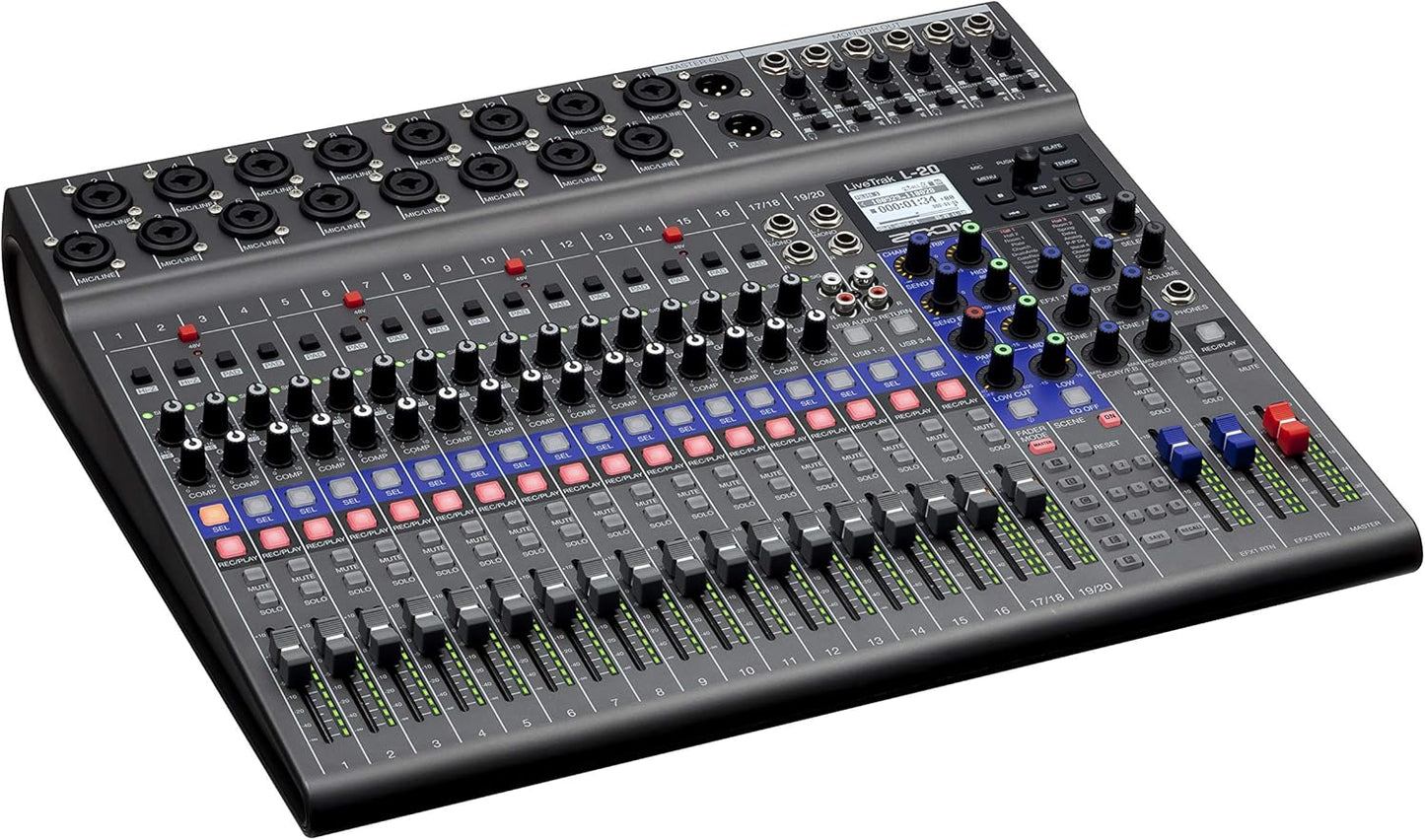

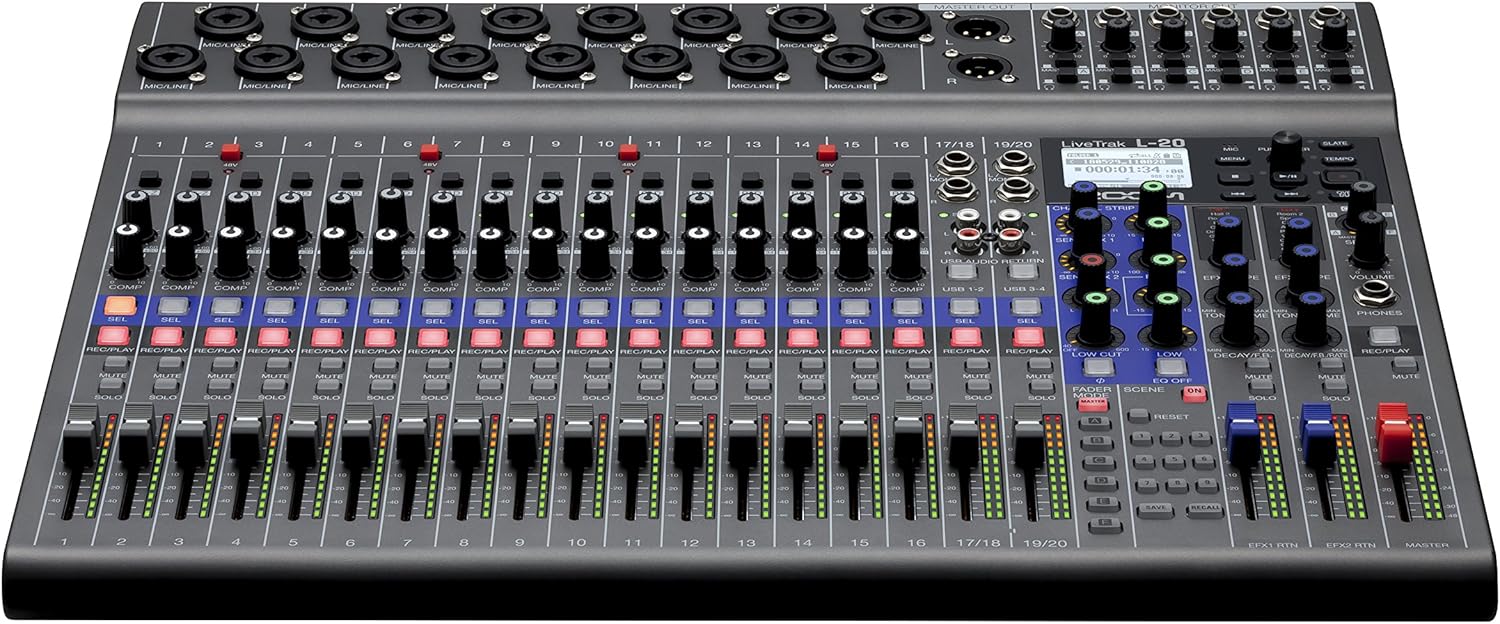

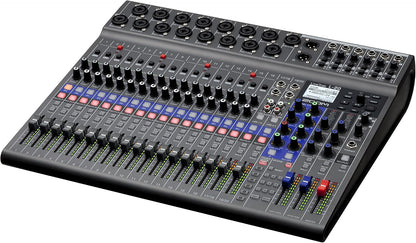

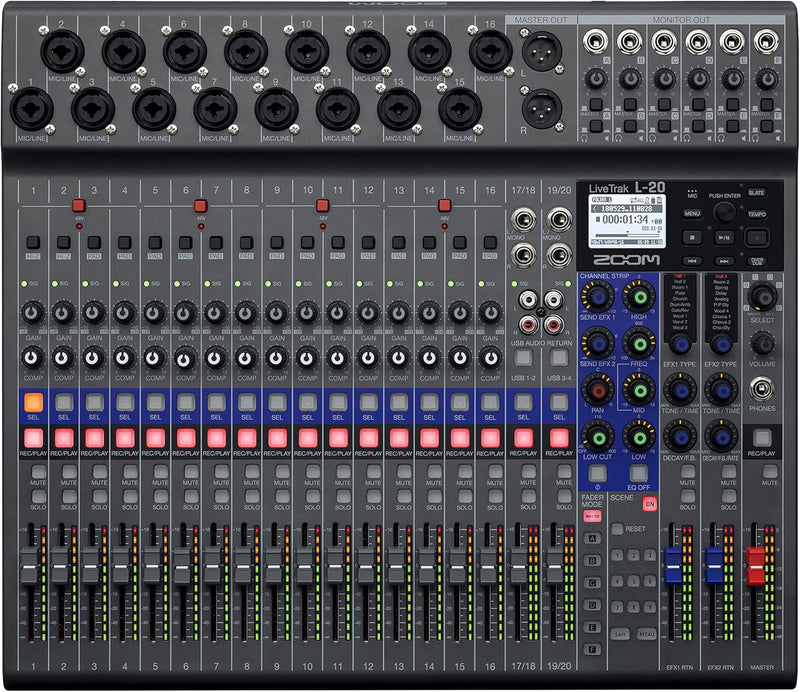

Zoom L-20 LiveTrak 20-Channel Digital Mixer Recorder
★★★★★
20-channel digital mixer and 22-track recorder with six monitor mixes and a built-in USB audio interface.
$999.99*
View on Amazon
✓ In Stock on Amazon.com
*Price sourced from Amazon.com. Last updated:Jun 20, 2026.Price and availability are subject to change.
Affiliate Disclosure: Studio Supplies may earn a commission from qualifying purchases made through links on this page, at no additional cost to you. This helps support our editorial team.
Notice a mistake? Let Us Know
Overview
Key Features
TWENTY CHANNELS FOR YOUR BIGGEST SHOWS – Simultaneously records 22 tracks at 24-bit/96kHz directly to SD card, making it the ultimate solution for large band recordings, live shows, and professional productions.
SIX INDEPENDENT MONITOR MIXES – Delivers six independent headphone and line outputs, each with individual volume control, so every performer gets their own personalized mix during rehearsals and live performances.
TWENTY ONBOARD EFFECTS, -128DBU EIN PREAMPS – Equipped with -128dBu EIN preamps, up to +60dB of gain, and 20 onboard effects for clean, powerful, and versatile signal handling across all channels.
WIRELESS CONTROL FROM YOUR IPHONE OR IPAD – Functions as a full-featured audio interface for recording directly to your DAW or live streaming, with wireless control available via the free iOS app for added convenience.
ROAD-READY AND BUILT FOR THE STAGE – Rugged and road-ready, the L-20 is designed to handle the demands of live performance, giving bands and engineers a reliable all-in-one mixing and recording solution.
Specifications
Channels
20 (16 mono mic/line + 2 stereo)
Recording Tracks
22
Recording Resolution
24-bit / 96 kHz
USB Audio Interface
22-in / 4-out (Mac/PC/iOS)
Monitor Outputs
6 powered headphone outputs + 1 engineer output
EQ
3-band per channel
Built-in Effects
20 with adjustable parameters
Effects Busses
2 dedicated EFX busses
Recording Media
SD card
Wireless Control
iOS app (requires optional BTA-1 Bluetooth adapter)
Pros & Cons
👍 Pros
- Records 22 tracks to SD card while simultaneously functioning as a USB audio interface
- Six independent powered headphone outputs with savable custom mixes simplify stage monitoring
- Built-in 20 effects with two dedicated busses reduce the need for external effects processors
- 16 mono mic/line inputs plus 2 stereo channels handle full-band live setups
- Optional wireless control via iOS app and Bluetooth adapter allows remote mix adjustments
👎 Cons
- USB interface is limited to 4 outputs, which restricts routing flexibility when working with a DAW
- Wireless control requires the separately sold BTA-1 Bluetooth adapter
- The large channel count and feature set result in a sizable unit that is less portable than compact mixers
- 3-band EQ per channel is functional but less flexible than parametric EQ found on some competing mixers
Frequently Asked Questions
Can the L-20 record to an SD card and function as a USB audio interface at the same time?
Yes, the L-20 can simultaneously record up to 22 tracks to an SD card while sending a 22-in/4-out audio feed to a DAW or streaming software via USB.
How many independent monitor mixes can the L-20 provide?
It offers six powered headphone outputs, each with its own fully customizable and savable mix, plus a dedicated seventh output for the sound engineer.
What recording resolution does the L-20 support?
It records up to 22 tracks at 24-bit/96 kHz resolution directly to an SD card.
Can the L-20 be controlled wirelessly?
Yes, with the optional Zoom BTA-1 Bluetooth adapter and the free iOS app, you can adjust mix settings wirelessly from anywhere on stage or in the venue.
Does the L-20 have built-in effects?
Yes, it includes 20 built-in effects with adjustable parameters, routable to any channel through two dedicated effects busses.
