AMD

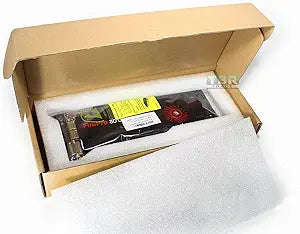

AMD 100-505604 ATI FirePro V7800 2GB DDR5 Video Card
★★★★★
2560x16002GB DDR575WDisplayPort
ATI FirePro V7800: Professional Graphics for Demanding ApplicationsThe ATI FirePro V7800 is a professional-grade video card designed to deliver exceptional graphics performance for demanding applications. Featuring 2GB of DDR5 memory and multiple display outputs, this card is perfect for CAD, DCC...
$199.96*
Check availability
*Price sourced from Amazon.com. Last updated:Jun 04, 2026.Price and availability are subject to change.
Affiliate Disclosure: Studio Supplies may earn a commission from qualifying purchases made through links on this page, at no additional cost to you. This helps support our editorial team.
Notice a mistake? Let Us Know
Overview
ATI FirePro V7800: Professional Graphics for Demanding Applications
The ATI FirePro V7800 is a professional-grade video card designed to deliver exceptional graphics performance for demanding applications. Featuring 2GB of DDR5 memory and multiple display outputs, this card is perfect for CAD, DCC, and visualization professionals.
- Memory: 2 GB DDR5
- Outputs: DVI, 2x DisplayPort
- Interface: PCI-Express
Key Features
ATI Eyefinity Technology Support ATI CrossFire Pro Technology Support ATI FirePro S400 Synchronization Module AutoDetect Technology Full 30-bit Display Pipeline
Multi-View Display Certification Support DirectX 11.0, Full Shader Model 5.0 and OpenGL 3.2 OpenCL 1.0
GPU: ATI FirePro V7800 Memory: 2GB DDR5 Brandwidth: 128.0 GB/s Shader Processing Units: 1440 Memory Interface: 256-bit Bus: PCI-Express 2.0 x16
Max. Resolution: 2560x1600 @ 60Hz Connectors: DVI, Dual DisplayPort Thermal: Fansink Support Microsoft DirectX 11, Shader Model 5.0 and OpenGL 3.2
System Requirements: 512MB of system memory CD-ROM drive (or internet access) for software installation Power supply w/75W for graphics One 2x3 power connectors
Specifications
GPU
ATI FirePro V7800
Memory
2GB DDR5
Bandwidth
128.0 GB/s
Shader Processing Units
1440
Memory Interface
256-bit
Bus Type
PCI-Express 2.0 x16
Max. Resolution
2560x1600 @ 60Hz
Connectors
DVI, Dual DisplayPort
Thermal Solution
Fansink
API Support
DirectX 11.0, Shader Model 5.0, OpenGL 3.2, OpenCL 1.0
Power Requirement
75W (one 2x3 power connector)
System Memory Requirement
512MB
Pros & Cons
👍 Pros
- Equipped with 2GB DDR5 memory, providing faster data access and higher bandwidth compared to older memory types.
- Features a 256-bit memory interface and 128.0 GB/s bandwidth, ensuring efficient data transfer for professional applications.
- Supports ATI Eyefinity Technology, enabling multi-display setups for enhanced productivity and immersive experiences.
- Capable of Full 30-bit Display Pipeline, offering a wider color gamut and more accurate color reproduction for creative professionals.
- Includes 1440 Shader Processing Units, providing robust computational power for complex graphics rendering tasks.
👎 Cons
- Requires one 2x3 power connector from the power supply, which older or smaller power supplies may not have.
- The maximum resolution is 2560x1600 at 60Hz, which may not be sufficient for users requiring 4K or higher refresh rates.
- The GPU is an ATI FirePro V7800, which is an older professional graphics card and may lack the performance and features of newer generations.
- System requirements include 512MB of system memory, which is a very low threshold, but the card itself is power-intensive at 75W.
- Relies on PCI-Express 2.0 x16, which is an older standard and may not fully utilize bandwidth on newer motherboards or provide optimal performance.
Frequently Asked Questions
What is the memory configuration of the AMD ATI FirePro V7800 video card?
This video card comes with 2GB of DDR5 memory and a 256-bit memory interface.
Does this graphics card support multiple monitors?
Yes, it supports ATI Eyefinity Technology and features Dual DisplayPort connectors, enabling multi-view display setups.
What is the maximum display resolution supported by this video card?
The AMD ATI FirePro V7800 supports a maximum resolution of 2560x1600 at 60Hz.
What APIs does the FirePro V7800 support?
It supports DirectX 11.0, Full Shader Model 5.0, OpenGL 3.2, and OpenCL 1.0 for broad software compatibility.
What are the power requirements for this graphics card?
The card requires a power supply with 75W dedicated for graphics and one 2x3 power connector.
