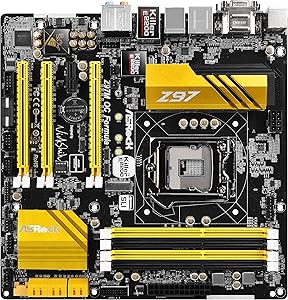

ASRock Z97M OC Formula Micro ATX Motherboard
★★★★★
USB 3.0USB 2.0
Build Your Dream System with the ASRock Z97M OC Formula Motherboard The ASRock Z97M OC Formula is a Micro ATX motherboard designed for high-performance computing. Supporting Intel Z97 chipset, DDR3 memory, and multiple graphics card configurations, this motherboard is perfect for building a powe...
Check availability
Affiliate Disclosure: Studio Supplies may earn a commission from qualifying purchases made through links on this page, at no additional cost to you. This helps support our editorial team.
Notice a mistake? Let Us Know
Overview
Build Your Dream System with the ASRock Z97M OC Formula Motherboard
The ASRock Z97M OC Formula is a Micro ATX motherboard designed for high-performance computing. Supporting Intel Z97 chipset, DDR3 memory, and multiple graphics card configurations, this motherboard is perfect for building a powerful and compact system.
Specifications:
- Form Factor: Micro ATX
- Chipset: Intel Z97
- Memory Type: DDR3
- Memory Speed: 1066
- Socket Type: LGA 1150
- Multi-GPU Support: Quad CrossFireX & Quad SLI
- Storage: SATA3
- USB: USB3.0
- Networking: A&GbE
Key Features
LGA1150
Chipset: Intel Z97
Memory: 4x DDR3-3300+(OC)/ 2933(OC)/ 2800(OC)/ 2400(OC)/ 2133(OC)/ 1866(OC)/ 1600/ 1333/ 1066 DIMM Slots, Dual Channel, Non-ECC, Unbuffered, Max Capacity of 32GB
Slots: 2x PCI-Express 3.0 x16 Slots (run at x16 or x8/x8), 1x PCI-Express 2.0 x16 Slot (runs at x4), 1x PCI-Express 2.0 x1 Slot
Multi-Graphics: Supports AMD Quad CrossFireX, CrossFireX and NVIDIA Quad SLI, SLI Technology
Ports: 6x USB 3.0 Ports (4 rear, 2 via header), 8x USB 2.0 Ports (4 rear, 4 via headers), 1x PS/2 Mouse/Keyboard Combo Port, 1x VGA Port, 1x DVI-D Port, 1x HDMI Port, 1x Optical S/PDIF Out, 1x eSATA Port, 1x RJ45 LAN Port, Audio I/O Jacks
Specifications
Socket Type
LGA1150
Chipset
Intel Z97
Memory Type
DDR3
Memory Slots
4
Max Memory Capacity
32GB
Supported Memory Speeds
3300+(OC)/ 2933(OC)/ 2800(OC)/ 2400(OC)/ 2133(OC)/ 1866(OC)/ 1600/ 1333/ 1066 MHz
PCI-Express 3.0 x16 Slots
2
PCI-Express 2.0 x16 Slots
1 (runs at x4)
PCI-Express 2.0 x1 Slots
1
USB 3.0 Ports
6 (4 rear, 2 via header)
USB 2.0 Ports
8 (4 rear, 4 via headers)
Video Output Ports
VGA, DVI-D, HDMI
Other Rear Ports
PS/2 Mouse/Keyboard Combo, Optical S/PDIF Out, eSATA, RJ45 LAN, Audio I/O Jacks
Pros & Cons
👍 Pros
- Supports high-speed DDR3 memory up to 3300+(OC) MHz, allowing for enhanced system performance for compatible CPUs.
- Offers extensive multi-graphics support, including AMD Quad CrossFireX, CrossFireX, NVIDIA Quad SLI, and SLI Technology.
- Features a comprehensive array of connectivity options with 6 USB 3.0 ports, 8 USB 2.0 ports, and an eSATA port.
- Includes multiple video outputs like VGA, DVI-D, and HDMI, providing flexibility for display connections.
- Equipped with four PCI-Express slots (two 3.0 x16, one 2.0 x16, one 2.0 x1) for various expansion cards.
👎 Cons
- Uses an LGA1150 socket, which is for older generation Intel processors, limiting compatibility with newer CPUs.
- Supports DDR3 memory, which is an older standard compared to current DDR4 or DDR5 RAM, potentially limiting future upgrade paths.
- The Micro ATX form factor might offer fewer expansion slots compared to larger ATX motherboards.
- The integrated graphics outputs (VGA, DVI-D) suggest reliance on older display standards, though HDMI is also present.
- Maximum memory capacity is 32GB, which could be a limitation for some high-demand applications or users.
Frequently Asked Questions
What type of processor socket does the ASRock Z97M OC Formula motherboard use?
The ASRock Z97M OC Formula motherboard utilizes an LGA1150 socket, designed for compatible Intel processors.
How much RAM can this motherboard support?
This motherboard supports a maximum capacity of 32GB DDR3 RAM across its four DIMM slots, with speeds up to 3300+(OC) MHz.
Does this motherboard support multiple graphics cards?
Yes, it supports multiple graphics card technologies including AMD Quad CrossFireX, CrossFireX, NVIDIA Quad SLI, and SLI Technology.
What are the available video output ports on this motherboard?
The motherboard features VGA, DVI-D, and HDMI ports, offering various options for connecting displays.
How many USB 3.0 ports are available on this motherboard?
There are 6 USB 3.0 ports in total, with 4 located on the rear panel and an additional 2 available via an internal header.
