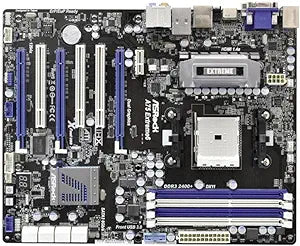

ASRock A75 EXTREME6 FM1 AMD A75 ATX Motherboard — main product image
ASRock A75 EXTREME6 FM1 AMD A75 ATX Motherboard
ASRock A75 EXTREME6 FM1 AMD A75 ATX Motherboard
ASRock A75 EXTREME6 FM1 AMD A75 ATX Motherboard
ASRock

ASRock A75 EXTREME6 FM1 AMD A75 ATX Motherboard

★★★★★3.2 (5 reviews)
100WUSB 2.0USB 3.0

Feature-packed ATX motherboard with AMD A75 chipset, triple PCI-E x16 slots, and seven SATA3 ports for expandable builds.

View price on Amazon
Affiliate Disclosure: Studio Supplies may earn a commission from qualifying purchases made through links on this page, at no additional cost to you. This helps support our editorial team.

Notice a mistake? Let Us Know

Overview

The ASRock A75 EXTREME6 is an ATX motherboard built around the AMD A75 FCH (Hudson-D3) chipset and the FM1 socket, supporting AMD A8, A6, A4, and E2 series APUs and processors up to 100W TDP. It was designed as a high-end option for the FM1 platform, and that ambition shows in its expansion capabilities: three PCI-Express 2.0 x16 slots enable Quad, 3-Way, and standard CrossFireX multi-GPU configurations, while an additional PCI-Express x1 slot and three legacy PCI slots round out the expansion options. Four DDR3 DIMM slots support up to 32GB of memory with overclocking speeds up to DDR3-2400.

Storage connectivity is a particular strength, with seven SATA3 ports (six supporting RAID 0/1/10) and an additional SATA3/eSATA3 combo port for external drives. The rear I/O panel is equally well-equipped, featuring four USB 3.0 ports, two USB 2.0 ports, IEEE 1394, VGA, DVI, HDMI, optical SPDIF out, eSATA3, Gigabit LAN, and full audio I/O. Two additional USB 3.0 ports and six more USB 2.0 ports are accessible via internal headers. For builders working within the FM1 ecosystem, the A75 EXTREME6 offers a level of connectivity and expansion that was uncommon at its price point, making it a solid foundation for media centers, workstations, and multi-GPU gaming rigs of its era.

Key Features

CPU: Socket FM1 Support AMD A8/A6/A4/E2 Processors, Supports Max CPU TDP 100W, Supports AMD's Cool 'n' Quiet Technology

Chipset: AMD A75 FCH (Hudson-D3)

Memory: 4x DDR3-2400+(OC)/1866(OC)/1600(OC)/1333/1066/800 DIMMs, Dual Channel, Non-ECC/Un-buffered, Max Capacity up to 32GB

Slots: 3x PCI-Express 2.0 x16 Slots(one run at x8 OR two run at x8, one run at x4, Supports AMD Quad/ 3-Way/ CrossFireX), 1x PCI-Express 2.0 x1 Slot, 3x PCI Slots

SATA: 7x SATA3 Ports (Six Support RAID 0/ 1/ 10), 1x SATA3/eSATA3 Combo Port

Ports: 8x USB 2.0 Ports (2 rear, 6 by headers), 6x USB 3.0 Ports (4 rear, 2 by headers), 1x PS/2 Port, 2x IEEE 1394 Ports(1 rear, 1 by header), 1x VGA Port, 1x DVI Port, 1x HDMI Port, 1x Optical SPDIF Out, 1x eSATA3 Port, 1x RJ45 LAN Port, Audio I/O Jacks

Power Connector: 1x 24pin main power, 1x 8pin CPU power

Form Factor: ATX

Specifications

Brand
ASRock
Model
A75 EXTREME6
CPU Socket
FM1 (AMD A8/A6/A4/E2, Max 100W TDP)
Chipset
AMD A75 FCH (Hudson-D3)
Memory
4x DDR3 DIMMs, up to 32GB, DDR3-2400+(OC)/1866/1600/1333/1066/800
Expansion Slots
3x PCI-E 2.0 x16, 1x PCI-E 2.0 x1, 3x PCI
Multi-GPU Support
AMD Quad / 3-Way / CrossFireX
SATA
7x SATA3 (6 with RAID 0/1/10), 1x SATA3/eSATA3 Combo
USB 3.0
6 ports (4 rear, 2 via header)
USB 2.0
8 ports (2 rear, 6 via headers)
Video Outputs
VGA, DVI, HDMI
Audio
Audio I/O jacks, Optical SPDIF Out
Network
1x RJ45 Gigabit LAN
Other Ports
1x PS/2, 2x IEEE 1394, 1x eSATA3
Power Connectors
24-pin main, 8-pin CPU
Form Factor
ATX

Pros & Cons

👍 Pros

  • Three PCI-Express 2.0 x16 slots provide extensive multi-GPU and expansion card flexibility.
  • Seven SATA3 ports plus an eSATA3 combo port deliver ample high-speed storage connectivity.
  • Six USB 3.0 ports and eight USB 2.0 ports cover a wide range of peripheral needs.
  • Triple display outputs (VGA, DVI, HDMI) built in for APU-based systems without a discrete GPU.
  • Supports up to 32GB DDR3 RAM with overclocking headroom up to DDR3-2400.

👎 Cons

  • FM1 socket is a legacy platform with no upgrade path to newer AMD processor generations.
  • PCI-Express 2.0 bandwidth is outdated compared to current PCI-Express standards.
  • DDR3 memory support limits future upgradeability as DDR3 becomes less available.
  • Maximum CPU TDP of 100W restricts compatibility to lower-power AMD APUs and processors.
  • Lacks modern features like M.2 slots, USB 3.1, or UEFI-based firmware found on current boards.

Frequently Asked Questions

It supports AMD A8, A6, A4, and E2 series processors that use the FM1 socket, with a maximum TDP of 100W.
Yes, it supports AMD Quad CrossFireX, 3-Way CrossFireX, and standard CrossFireX configurations using its three PCI-Express 2.0 x16 slots.
It supports up to 32GB of DDR3 memory across four DIMM slots, with speeds up to DDR3-2400 when overclocked.
The board includes VGA, DVI, and HDMI outputs, allowing direct display connection when using an AMD APU with integrated graphics.
It offers six USB 3.0 ports total — four on the rear panel and two via an internal header for front-panel use.
