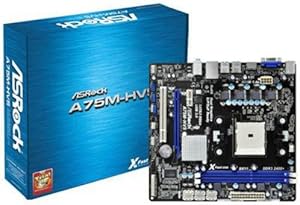

ASRock A75M-HVS Socket FM1 Motherboard
★★★★★
Build Your AMD System with the ASRock A75M-HVS MotherboardThe ASRock A75M-HVS motherboard is designed for AMD Socket FM1 processors. It offers a range of features including DDR3 memory support, SATA3 and USB 3.0 connectivity, and integrated graphics and audio, all in a compact MicroATX form facto...
$85.00*
Check availability
*Price sourced from Amazon.com. Last updated:Jun 04, 2026.Price and availability are subject to change.
Affiliate Disclosure: Studio Supplies may earn a commission from qualifying purchases made through links on this page, at no additional cost to you. This helps support our editorial team.
Notice a mistake? Let Us Know
Overview
Build Your AMD System with the ASRock A75M-HVS Motherboard
The ASRock A75M-HVS motherboard is designed for AMD Socket FM1 processors. It offers a range of features including DDR3 memory support, SATA3 and USB 3.0 connectivity, and integrated graphics and audio, all in a compact MicroATX form factor.
Specifications:
- Socket: FM1
- Chipset: AMD A75 FCH
- Memory: DDR3
- Storage: SATA3
- USB: USB 3.0
- Form Factor: MicroATX
Key Features
SATA: 6x SATA3 Ports, Support RAID 0/ 1/ 10
Slots: 1x PCI-Express 2.0 x16 Slot, 1x PCI-Express 2.0 x1 Slot, 1x PCI Slot
Chipset: AMD A75 FCH (Hudson-D3)
CPU: Socket FM1 Support AMD A4/ A6/ A8/ E2 Processors, Supports AMD's Cool 'n' Quiet Technology
Memory: 2x DDR3-2400+(OC)/1866(OC)/1600(OC)/1333/1066/800 DIMMs, Dual Channel, Non-ECC/Un-buffered, Max Capacity up to 16GB
CPU: Socket FM1 Support AMD A4/ A6/ A8/ E2 Processors, Supports AMD's Cool 'n' Quiet Technology
Chipset: AMD A75 FCH (Hudson-D3)
Memory: 2x DDR3-2400+(OC)/1866(OC)/1600(OC)/1333/1066/800 DIMMs, Dual Channel, Non-ECC/Un-buffered, Max Capacity up to 16GB
Slots: 1x PCI-Express 2.0 x16 Slot, 1x PCI-Express 2.0 x1 Slot, 1x PCI Slot
SATA: 6x SATA3 Ports, Support RAID 0/ 1/ 10
LAN: Realtek RTL8111E PCI-Express x1 Gigabit Ethernet Controller, Supports Wake-On-LAN
Ports: 8x USB 2.0 Ports (2 rear, 6 by headers), 4x USB 3.0 Ports, 2x PS/2 Ports, 1x VGA Port, 1x HDMI Port, 1x RJ45 LAN Port, Audio I/O Jacks
Form Factor: MATX
Specifications
Brand
ASRock
Model
A75M-HVS
Socket Type
FM1
Chipset
AMD A75 FCH (Hudson-D3)
CPU Support
AMD A4/A6/A8/E2 Processors
Memory Slots
2x DDR3 DIMMs
Max Memory Capacity
16GB
Memory Speed Support
DDR3-2400+(OC)/1866(OC)/1600(OC)/1333/1066/800
PCI-E x16 Slots
1x PCI-Express 2.0 x16
PCI-E x1 Slots
1x PCI-Express 2.0 x1
PCI Slots
1x PCI
SATA Ports
6x SATA3 (RAID 0/1/10 support)
USB 3.0 Ports
4x (2 rear)
USB 2.0 Ports
8x (2 rear, 6 by headers)
Video Outputs
1x VGA, 1x HDMI
LAN Controller
Realtek RTL8111E Gigabit Ethernet
Form Factor
MATX
Pros & Cons
👍 Pros
- Supports a range of AMD A4/A6/A8/E2 Processors with Socket FM1, offering flexibility in CPU choice.
- Features 6x SATA3 Ports, enabling fast data transfer speeds for multiple storage devices and RAID 0/1/10 support.
- Includes 4x USB 3.0 ports, providing high-speed connectivity for modern peripherals.
- Offers multiple expansion slots (PCI-Express 2.0 x16, x1, PCI) for graphics cards and other add-in cards.
- Comes with both VGA and HDMI ports, allowing for versatile display connectivity options.
- Supports up to 16GB of DDR3 RAM in dual channel, providing ample memory capacity for most systems.
👎 Cons
- Limited to Socket FM1 processors, which are older generation AMD CPUs and may not offer the latest performance.
- Memory support is for DDR3 RAM, which is an older standard compared to current DDR4 or DDR5 technologies.
- Only two DDR3 DIMM slots are available, potentially limiting future memory upgrade paths if higher capacity DIMMs are not used.
- The motherboard is a MATX form factor, which may have fewer expansion slots compared to full ATX boards.
- Integrated LAN is a Realtek RTL8111E, which is a standard Gigabit Ethernet controller, but lacks more advanced networking features.
Frequently Asked Questions
What type of CPU socket does the ASRock A75M-HVS motherboard use?
The ASRock A75M-HVS motherboard features a Socket FM1, supporting AMD A4, A6, A8, and E2 processors.
How much RAM can this motherboard support?
This motherboard supports a maximum capacity of up to 16GB of DDR3 memory across two DIMM slots, configured for dual channel.
What kind of storage connectivity options are available?
The ASRock A75M-HVS includes 6x SATA3 ports that support RAID 0, 1, and 10 configurations for flexible storage solutions.
Does this motherboard have USB 3.0 ports?
Yes, it features 4x USB 3.0 ports, with 2 located on the rear panel for high-speed peripheral connectivity.
What video output options are provided on the rear panel?
For display connectivity, the motherboard offers both a VGA port and an HDMI port on the rear I/O panel.
What are the expansion slot configurations on this motherboard?
This motherboard provides 1x PCI-Express 2.0 x16 slot, 1x PCI-Express 2.0 x1 slot, and 1x PCI slot for various expansion cards.
Is this motherboard suitable for building a compact PC?
With an MATX form factor, this motherboard is well-suited for building more compact PC systems while still offering a good range of features.
