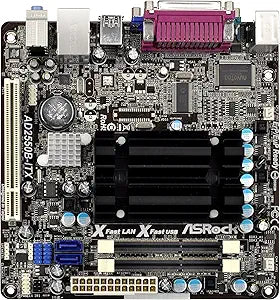

ASRock AD2550B-ITX Intel Atom Mini-ITX Motherboard
★★★★★
USB 2.0
Compact and Efficient Mini-ITX Motherboard The ASRock AD2550B-ITX is a Mini-ITX motherboard featuring an Intel Atom D2550 processor and Intel NM10 chipset. Designed for compact systems, this motherboard offers essential connectivity and functionality for various applications. Specifications: ...
View price on Amazon
Affiliate Disclosure: Studio Supplies may earn a commission from qualifying purchases made through links on this page, at no additional cost to you. This helps support our editorial team.
Notice a mistake? Let Us Know
Overview
Compact and Efficient Mini-ITX Motherboard
The ASRock AD2550B-ITX is a Mini-ITX motherboard featuring an Intel Atom D2550 processor and Intel NM10 chipset. Designed for compact systems, this motherboard offers essential connectivity and functionality for various applications.
Specifications:
- Processor: Intel Atom D2550
- Chipset: Intel NM10
- Memory: DDR3
- Form Factor: Mini-ITX
- Audio: Integrated Audio
- Video: Integrated Video
- LAN: Integrated LAN
Key Features
CPU: Intel Dual-Core Atom Processor D2550 (1.86 GHz)
Chipset: Intel NM10 Express
Memory: 2x DDR3-1066/800 DIMM Slots, Non-ECC, Un-buffered, Max Capacity of 4GB
Slots: 1x PCI Slot
SATA: 2x SATA2 Ports
Ports:8 x USB 2.0 Ports (4 rear,4via headers); 1x PS/2 Mouse Port; 1x PS/2 Key board Port; 1x VGA Port; 1xSerial Port; 1xParallel Port; 1x RJ45 LAN Port; Audio I/O Jacks
Power Connector: 1x 24-Pin ATX Power Connector
Specifications
Brand
ASRock
Model
AD2550B-ITX
CPU
Intel Dual-Core Atom Processor D2550
CPU Speed
1.86 GHz
Chipset
Intel NM10 Express
Memory Slots
2x DDR3 DIMM
Memory Type
DDR3-1066/800, Non-ECC, Un-buffered
Max Memory Capacity
4GB
PCI Slots
1x PCI Slot
SATA Ports
2x SATA2
USB 2.0 Ports
8 (4 rear, 4 via headers)
PS/2 Ports
1x Mouse, 1x Keyboard
Video Output
1x VGA Port
Serial Ports
1x
Parallel Ports
1x
LAN Port
1x RJ45
Power Connector
1x 24-Pin ATX
Form Factor
Mini-ITX
Pros & Cons
👍 Pros
- Equipped with an Intel Dual-Core Atom Processor D2550 (1.86 GHz) integrated, offering a compact and low-power solution.
- Supports up to 4GB of DDR3-1066/800 non-ECC, un-buffered memory, suitable for basic computing needs.
- Features a Mini-ITX form factor, making it ideal for small form factor builds and compact systems.
- Includes a PCI slot, allowing for the addition of legacy expansion cards.
- Offers a comprehensive set of legacy ports, including PS/2, VGA, Serial, and Parallel, for compatibility with older peripherals.
👎 Cons
- The Intel Dual-Core Atom D2550 processor is relatively low-power, making it less suitable for demanding applications or heavy multitasking.
- The maximum memory capacity of 4GB DDR3 may be insufficient for modern operating systems and applications that require more RAM.
- Only includes two SATA2 ports, which limits storage expansion options compared to motherboards with SATA3 or M.2 slots.
- The presence of legacy ports (PS/2, Serial, Parallel) might be unnecessary for users with modern peripherals and could indicate an older design.
- The single PCI slot provides limited expansion capability, especially compared to motherboards with multiple PCIe slots.
Frequently Asked Questions
What kind of CPU is integrated into this motherboard?
This motherboard features an integrated Intel Dual-Core Atom Processor D2550, running at 1.86 GHz, designed for low-power and compact systems.
What is the maximum amount of RAM this motherboard supports?
The ASRock AD2550B-ITX motherboard supports a maximum capacity of 4GB of DDR3-1066/800 non-ECC, un-buffered memory across two DIMM slots.
Is this motherboard suitable for a gaming PC build?
No, with an Intel Atom processor and integrated graphics, this motherboard is not suitable for gaming or other graphically intensive applications. It is designed for basic computing.
Does this motherboard support modern SATA III (6Gb/s) hard drives?
This motherboard includes 2x SATA2 ports, which support SATA II (3Gb/s) speeds, meaning modern SATA III drives will operate at reduced speeds.
What are the advantages of the Mini-ITX form factor?
The Mini-ITX form factor makes this motherboard ideal for building compact, small form factor PCs, such as home theater PCs (HTPCs) or thin clients.
Can I connect legacy peripherals like a PS/2 keyboard or mouse to this motherboard?
Yes, this motherboard provides dedicated PS/2 ports for both a mouse and a keyboard, as well as serial and parallel ports for older peripherals.
