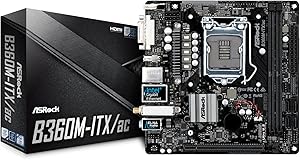

ASRock B360M-ITX/AC Mini-ITX Motherboard WiFi — main product image
ASRock

ASRock B360M-ITX/AC Mini-ITX Motherboard WiFi

★★★★★4.1 (20 reviews)
WiFi 2x

Build Your Compact Powerhouse with This Feature-Rich Mini-ITX MotherboardThe ASRock B360M-ITX/AC Motherboard is a compact yet powerful solution for your next build. Supporting 8th Generation Intel Core processors and packed with essential features like M.2 support, Wi-Fi, and USB 3.1 Gen2, this m...

Check availability
Affiliate Disclosure: Studio Supplies may earn a commission from qualifying purchases made through links on this page, at no additional cost to you. This helps support our editorial team.

Notice a mistake? Let Us Know

Overview

Build Your Compact Powerhouse with This Feature-Rich Mini-ITX Motherboard

The ASRock B360M-ITX/AC Motherboard is a compact yet powerful solution for your next build. Supporting 8th Generation Intel Core processors and packed with essential features like M.2 support, Wi-Fi, and USB 3.1 Gen2, this motherboard is perfect for small form factor systems without compromising performance.

  • CPU Support: Supports 8th Generation Intel Core Processors (up to 95W)
  • Chipset: Intel B360
  • Memory: 2x DDR4-2666/2400/2133 DIMM Slots, Dual Channel, Non-ECC, Unbuffered, Max Capacity of 32GB
  • Slots: 1x PCI-Express 3.0 x16 Slot, 1x Vertical M.2 Socket (Key E)
  • SATA: 4x SATA3 Ports, Support NCQ, AHCI and Hot Plug
  • M.2: 1x Ultra M.2 Port, supports M Key type 2280 M.2 SATA3 6.0 Gb/s module and M.2 PCI Express module up to Gen3 x4 (32 Gb/s)
  • Audio: Realtek ALC887 7.1-Channel High Definition Audio CODEC
  • LAN: Giga PHY Intel I219V Gigabit Ethernet Controller; IEEE 802.11a/b/g/n/ac Wireless LAN (2.4/5GHz); Bluetooth 4.2/3.0 + High speed class II
  • Ports: 2x USB 3.1 Gen2 Ports (Type-A rear), 4x USB 3.1 Gen1 Ports (2 rear, 2 via header), 2x USB 2.0 Ports (via header), 1x PS/2 Mouse/Keyboard Port, 1x DVI-I Port, 1x HDMI Port, 1x DisplayPort, 2x Antenna Ports, 1x RJ45 LAN Port w/LED, Audio I/O Jacks
  • Power Connector: 1x 24pin ATX Power Connector, 1x 8pin 12V Power Connector
  • Form Factor: Mini-ITX, 6.7 x 6.7 inch / 17.0 x 17.0 cm

Key Features

2x DDR4-2666/2400/2133 DIMM Slots, Dual Channel, Non-ECC, Unbuffered, Max Capacity of 32GB

1x PCI-Express 3.0 x16 Slot, 1x Vertical M.2 Socket (Key E)

4x SATA3 Ports, Support NCQ, AHCI and Hot Plug

1x Ultra M.2 Port, supports M Key type 2280 M.2 SATA3 6.0 Gb/s module and M.2 PCI Express module up to Gen3 x4 (32 Gb/s)

Realtek ALC887 7.1-Channel High Definition Audio CODEC

Specifications

Form Factor
Mini-ITX
Memory Slots
2x DDR4 DIMM Slots
Max Memory Capacity
32GB
Memory Type Support
DDR4-2666/2400/2133, Dual Channel, Non-ECC, Unbuffered
PCI-Express Slots
1x PCI-Express 3.0 x16 Slot
M.2 Sockets
1x Vertical M.2 Socket (Key E), 1x Ultra M.2 Port
Ultra M.2 Port Support
M Key type 2280 M.2 SATA3 6.0 Gb/s module, M.2 PCI Express module up to Gen3 x4 (32 Gb/s)
SATA Ports
4x SATA3 Ports (Support NCQ, AHCI, Hot Plug)
Audio Codec
Realtek ALC887 7.1-Channel High Definition Audio CODEC
Wireless Connectivity
WiFi

Pros & Cons

👍 Pros

  • Supports up to 32GB of DDR4 memory across two DIMM slots, providing ample capacity for multitasking and demanding applications.
  • Features a PCI-Express 3.0 x16 slot, allowing for the installation of a high-performance graphics card.
  • Equipped with an Ultra M.2 Port that supports both SATA3 (6.0 Gb/s) and PCI Express Gen3 x4 (32 Gb/s) M.2 modules for versatile high-speed storage.
  • Includes Realtek ALC887 7.1-Channel High Definition Audio CODEC, delivering immersive sound for gaming and media.
  • Provides four SATA3 ports, supporting NCQ, AHCI, and Hot Plug features for flexible and efficient storage configurations.
  • The Mini-ITX form factor is ideal for building compact and space-saving computer systems.
  • Comes with integrated WiFi, offering convenient wireless network connectivity without needing an additional adapter.

👎 Cons

  • Only two DDR4 DIMM slots are available, which limits future memory expansion compared to motherboards with four slots.
  • Max memory speed is capped at DDR4-2666, which may not satisfy users seeking the absolute fastest RAM performance.
  • The single PCI-Express 3.0 x16 slot restricts options for adding multiple expansion cards.
  • The Realtek ALC887 audio codec is a standard offering, which may not provide the premium audio experience of higher-end dedicated sound solutions.
  • The presence of only one Ultra M.2 port limits the number of ultra-fast M.2 NVMe drives that can be installed.

Frequently Asked Questions

This ASRock B360M-ITX/AC motherboard supports a maximum capacity of 32GB of DDR4 memory across its two DIMM slots.
Yes, it features an Ultra M.2 Port that supports M.2 PCI Express modules up to Gen3 x4 (32 Gb/s), allowing for fast NVMe SSDs.
The motherboard is equipped with the Realtek ALC887 7.1-Channel High Definition Audio CODEC, providing immersive sound for your system.
Yes, the ASRock B360M-ITX/AC comes with built-in WiFi, offering convenient wireless network connectivity.
It provides four SATA3 ports, which support NCQ, AHCI, and Hot Plug for connecting multiple SATA storage drives.
There is one PCI-Express 3.0 x16 slot, which is suitable for installing a dedicated graphics card.
