ASRock B650M-HM2 Motherboard DDR5 Ryzen 7000 Series

Name: ASRock B650M-HM2 Motherboard DDR5 Ryzen 7000 Series
Brand: ASRock
SKU: B650M-HM2

Overview

The ASRock B650M-HM2 is a micro-ATX motherboard built around AMD's B650 chipset, targeting builders who want access to the AM5 platform and its forward-looking technologies without a significant financial commitment. It supports AMD Ryzen 9000, 8000, and 7000 series processors, giving buyers a wide range of CPU options from budget APUs to higher-performance chips — and the AM5 socket's multi-generational support means this board can grow with future processor releases. The 6+1+1 power phase design with Dr.MOS components delivers stable power for everyday computing and moderate workloads, though enthusiasts pushing high-end chips to their limits may want to look at boards with more robust VRM configurations.

Storage is a particular strength for a board at this price point: the Blazing M.2 slot supports PCIe Gen5 x4 NVMe drives for cutting-edge transfer speeds, complemented by a second PCIe 4.0 M.2 slot and four SATA3 ports for additional drives. Memory support covers dual-channel DDR5 across two DIMM slots with speeds up to DDR5-6400+ when overclocked, accommodating up to 96GB total. Connectivity includes Realtek Gigabit LAN, multiple USB 3.2 Gen1 ports with a Type-C option, and video output via both HDMI and DisplayPort for processors with integrated RDNA 2 graphics. The BIOS Flashback feature is a thoughtful inclusion that allows firmware updates without any components installed, and the ASRock Auto Driver Installer simplifies the initial setup process. At the micro-ATX size, it fits comfortably in compact builds while still offering the essential features most users need.

Key Features

Excellent Value AMD Platform: Supports AMD Socket AM5 Ryzen 9000, 8000, and 7000 Series Processors, providing an affordable entry to next-generation computing

Efficient Power Design: 6+1+1 power phase design with Dr.MOS ensures stable power delivery for everyday computing and moderate workloads

DDR5 Memory Ready: 2 DDR5 DIMM slots support dual-channel configurations and speeds up to 6400+ (OC) for modern system performance

PCIe 5.0 Storage Capable: Features one Blazing M.2 (PCIe Gen5x4) slot for next-generation NVMe SSDs with ultra-fast transfer speeds

Integrated Graphics Support: Built-in AMD RDNA 2 Graphics (actual support varies by CPU) with HDMI and DisplayPort outputs for display flexibility

Comprehensive Storage Options: Includes both PCIe 5.0 and PCIe 4.0 M.2 slots plus four SATA3 ports for versatile storage configurations

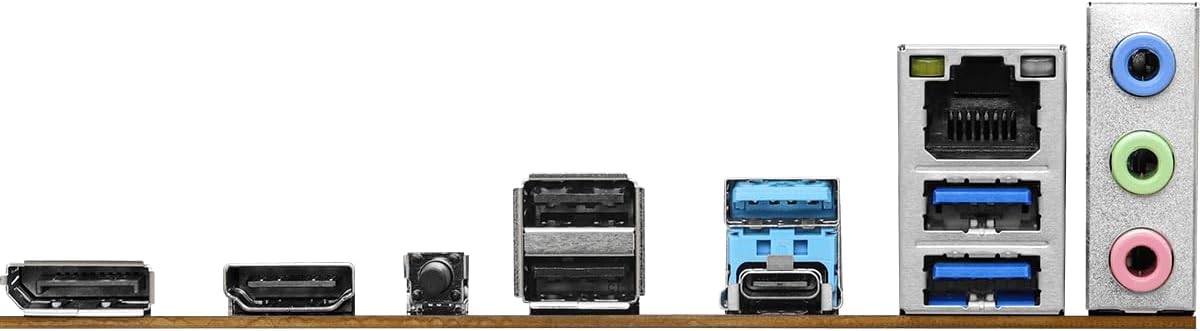

Essential Connectivity: Realtek Gigabit LAN, multiple USB 3.2 Gen1 ports including Type-C, and audio with Nahimic enhancement

User-Friendly Features: BIOS Flashback for easy updates and ASRock Auto Driver Installer for simplified system setup

System Compatibility Note: This micro-ATX form factor may not be compatible with all cases; please verify chassis specifications before purchase

Dedicated Support: Contact us directly through Amazon for any product questions or assistance

Specifications

Brand

ASRock

Model

B650M-H/M.2+

CPU Socket

AMD Socket AM5

Chipset

AMD B650

Supported CPUs

AMD Ryzen 9000, 8000, 7000 Series

Form Factor

Micro-ATX

Memory Slots

2 x DDR5 DIMM (dual-channel)

Max Memory

96GB

Memory Speed

Up to DDR5-6400+ (OC)

M.2 Slots

1 x PCIe Gen5 x4 + 1 x PCIe Gen4

SATA Ports

4 x SATA3 6.0 Gb/s

Power Phases

6+1+1 with Dr.MOS

Video Output

HDMI, DisplayPort

Integrated Graphics

AMD RDNA 2 (CPU dependent)

Network

Realtek Gigabit LAN

USB

Multiple USB 3.2 Gen1 including Type-C

Audio

Nahimic enhanced audio

Features

BIOS Flashback, ASRock Auto Driver Installer

Similar Products

Other products from the same family that visitors often consider:

✓ Available

Pros & Cons

👍 Pros

PCIe 5.0 M.2 slot provides future-proof storage speeds uncommon at this price point
AM5 socket supports three generations of Ryzen processors for a long upgrade path
BIOS Flashback allows firmware updates without a CPU installed, simplifying new processor support
Compact micro-ATX form factor fits smaller cases while retaining essential features
Budget-friendly entry to the DDR5 and AM5 platform

👎 Cons

Only two DDR5 DIMM slots limit maximum memory capacity and upgrade flexibility compared to four-slot boards
No built-in Wi-Fi requires a separate wireless adapter for cable-free networking
6+1+1 power phase design is basic and may limit overclocking headroom on higher-end Ryzen processors
Gigabit LAN rather than 2.5 Gigabit puts it behind many competing B650 boards in wired network speed
Micro-ATX form factor limits expansion slot availability for multi-GPU or additional add-in cards

Frequently Asked Questions

Which AMD processors are compatible with the ASRock B650M-HM2?

The board supports AMD Ryzen 9000, 8000, and 7000 series processors using the AM5 socket. This includes both standard desktop CPUs and APUs with integrated RDNA 2 graphics.

Does the ASRock B650M-HM2 support PCIe 5.0?

Yes, it includes one Blazing M.2 slot running at PCIe Gen5 x4 speeds for next-generation NVMe SSDs. The board also has a second M.2 slot running at PCIe 4.0 speeds.

How much RAM can the ASRock B650M-HM2 support?

The board has two DDR5 DIMM slots supporting dual-channel configurations and up to 96GB of total memory. It supports speeds up to DDR5-6400+ when overclocked.

Does this motherboard have built-in Wi-Fi?

No, the B650M-HM2 does not include built-in Wi-Fi. It provides Realtek Gigabit LAN for wired networking. You would need to add a separate Wi-Fi card or USB adapter for wireless connectivity.

What is the BIOS Flashback feature on this board?

BIOS Flashback lets you update the motherboard's BIOS using a USB flash drive without needing a CPU, memory, or graphics card installed. This is particularly useful for updating to support newer Ryzen processors before you install them.
