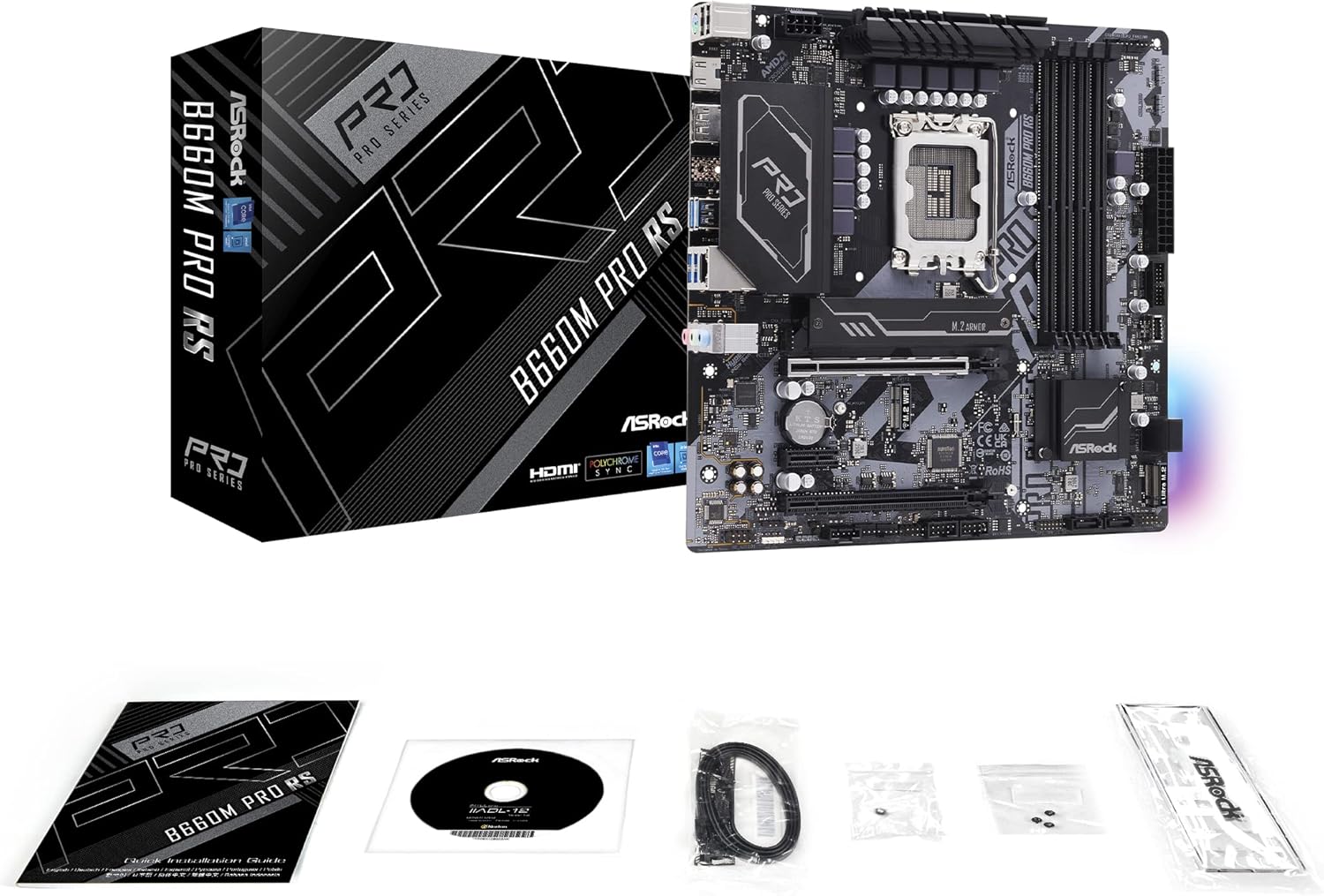

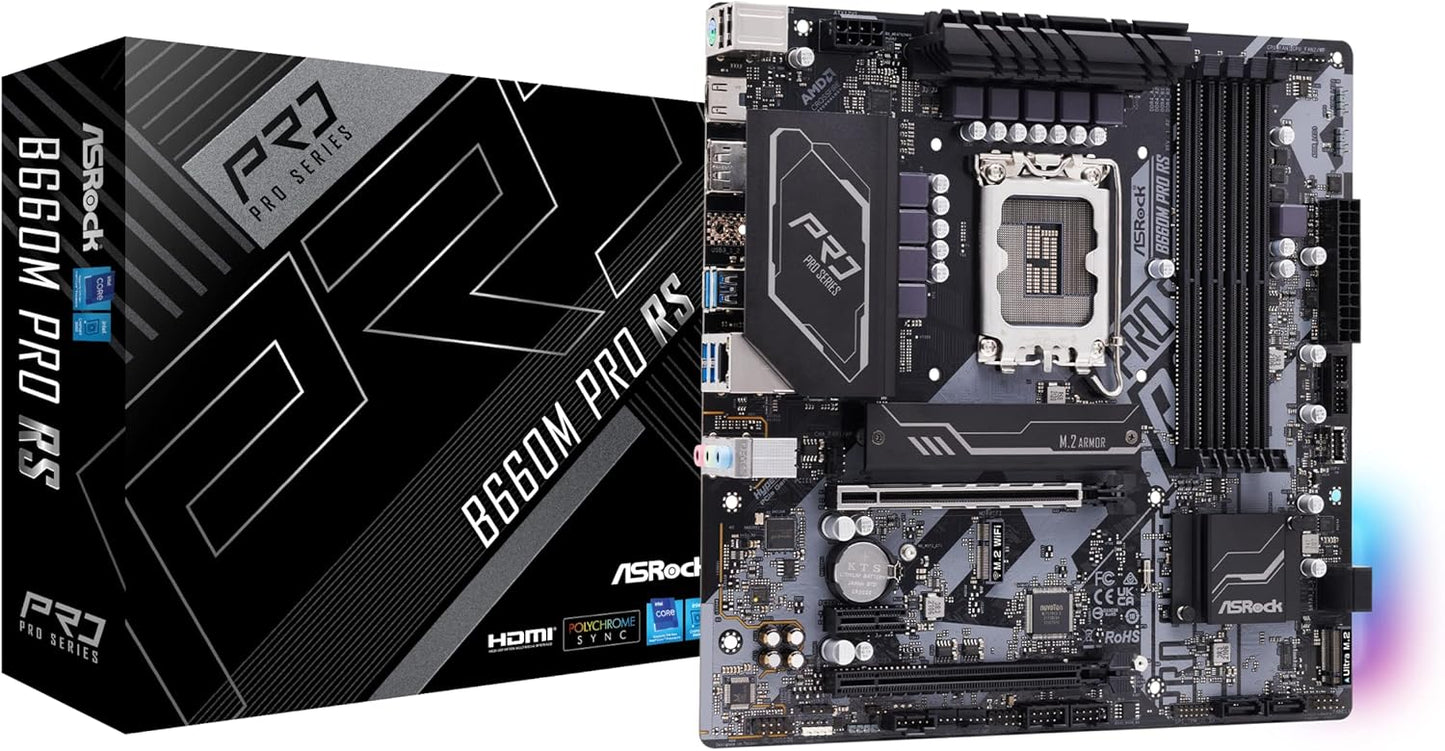

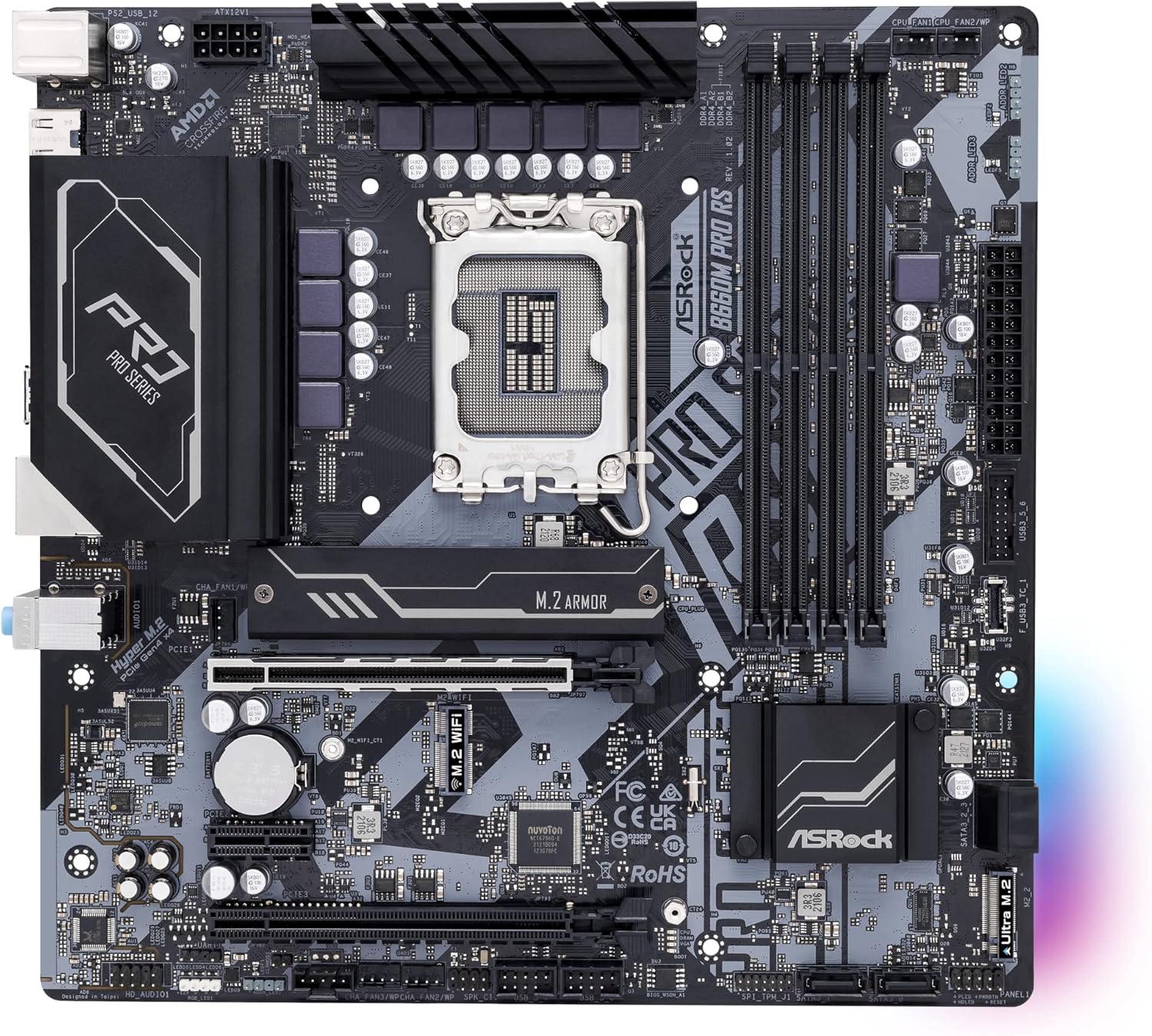

ASRock B660M PRO RS MicroATX Motherboard - Intel LGA1700

Name: ASRock B660M PRO RS MicroATX Motherboard - Intel LGA1700
Brand: ASRock
SKU: B660M PRO RS

Overview

The ASRock B660M Pro RS is a MicroATX motherboard built on Intel's B660 chipset for LGA1700-socket 12th Gen Core processors. Its primary PCIe slot runs at PCIe 4.0 x16, which provides the full 32 GB/s bidirectional bandwidth that current discrete GPUs require — this is a meaningful specification advantage over B560-era boards, where PCIe 3.0 x16 was the ceiling. Memory support extends to DDR4 at 4800 MHz via XMP overclock profiles across two DIMM slots with a hard 32GB maximum. The 8-phase power delivery design is appropriately specified for 12th Gen Core i7 and i9 TDPs within a MicroATX thermal envelope, though it operates closer to its margin with unlocked Core i9 SKUs under sustained all-core loads. The B660 chipset enforces a firm no-CPU-overclocking policy at the platform level — this is not an ASRock limitation but an Intel chipset restriction.

This board targets builders who need a compact, cost-efficient foundation for a 12th Gen Intel system — home office workstations, small form-factor gaming rigs, or media production builds where a full ATX footprint is impractical. The three PCIe slots (4.0 x16, 3.0 x16, 3.0 x1) accommodate a GPU and one additional expansion card simultaneously, which covers the majority of desktop use cases. One configuration detail to verify: the sole M.2 slot is Key-E, designated for an optional WiFi module, not NVMe storage — primary SSD connectivity routes through the SATA ports. For users planning an NVMe-primary storage layout, confirming Key-M M.2 slot availability in the full specification sheet before purchase is essential.

Key Features

Supports 12th Gen Intel Core Processors (LGA1700)

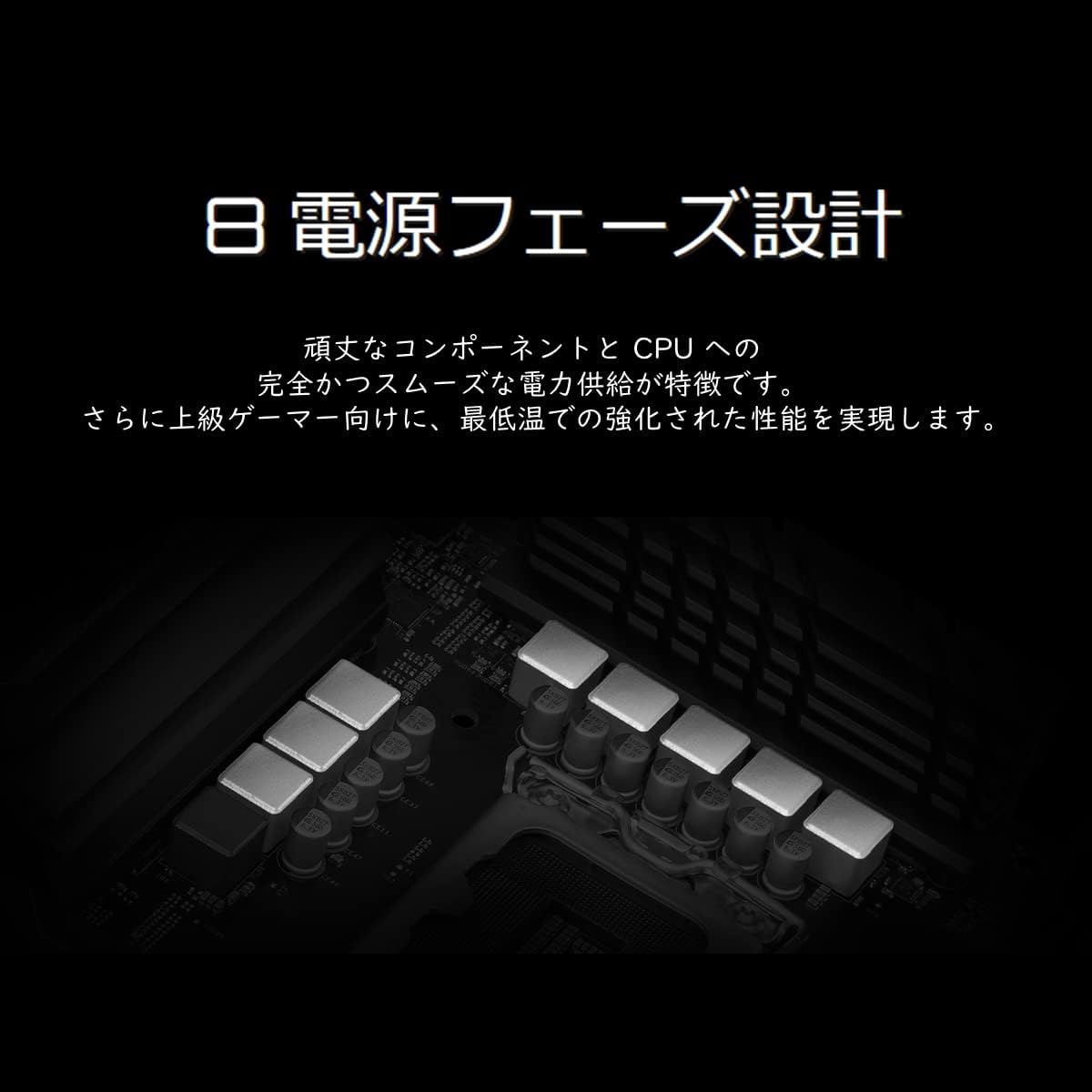

8 Phase Power Design

Supports DDR4 4800MHz (OC)

1 PCIe 4.0 x16, 1 PCIe 3.0 x16, 1 PCIe 3.0 x1

1 M.2 Key-E for WiFi

Specifications

Brand

ASRock

Model

B660M Pro RS

Form Factor

MicroATX

CPU Socket

Intel LGA1700

Chipset

Intel B660

CPU Support

12th Gen Intel Core

Memory Type

DDR4

Memory Speed

Up to 4800 MHz (OC)

Max Memory

32GB

PCIe Slots

1× PCIe 4.0 x16, 1× PCIe 3.0 x16, 1× PCIe 3.0 x1

M.2 Slot

1× Key-E (WiFi)

Power Phases

8

Similar Products

Other products from the same family that visitors often consider:

✓ Available

Pros & Cons

👍 Pros

PCIe 4.0 x16 primary slot delivers full 32 GB/s bidirectional GPU bandwidth, eliminating any chipset-induced bottleneck for current-generation discrete graphics.
DDR4 support up to 4800 MHz (OC) provides a meaningful frequency headroom above the DDR4-3200 baseline, improving memory latency in CPU-bound workloads.
8-phase power design provides stable VRM delivery for sustained loads under 12th Gen Core i7 and i9 processors without requiring aftermarket cooling on the VRM heatsink.
LGA1700 socket compatibility covers the full 12th Gen lineup, giving flexibility to drop in a higher-tier CPU as a future upgrade without replacing the board.
MicroATX form factor enables compact system builds while retaining three PCIe expansion slots for GPU, capture card, or storage controller configurations.

👎 Cons

Maximum 32GB DDR4 capacity across two DIMM slots is a hard ceiling — workstation users running memory-intensive applications like large dataset processing or heavy VM environments will outgrow this configuration.
B660 chipset blocks CPU frequency overclocking entirely; users who want multiplier-unlocked tuning of their 12th Gen Core i5-K or i7-K must budget for a Z690 board instead.
The M.2 Key-E slot is WiFi-card-only — it cannot accept NVMe SSDs. Confirm Key-M M.2 slot availability via the full spec sheet before planning storage layout.
MicroATX layout provides only three PCIe slots total, limiting expansion configurations compared to full-ATX alternatives in the same chipset family.
No onboard WiFi — the Key-E M.2 slot requires a separately purchased WiFi module for wireless connectivity.

Frequently Asked Questions

Which 12th Gen Intel processors are supported, and does this board support Core i9 SKUs?

The B660M Pro RS supports Intel 12th Gen Core processors in the LGA1700 socket — including Core i3, i5, i7, and i9 desktop variants. However, B660 chipset motherboards lock CPU overclocking: you can only adjust memory frequency (XMP/DOCP), not the CPU base or boost multiplier. For unlocked CPU overclocking, a Z690 board is required.

What is the maximum DDR4 memory speed this board supports?

The B660M Pro RS supports DDR4 up to 4800 MHz via XMP overclock profiles. The native JEDEC speed is 4800 MT/s with 12th Gen processors; most DDR4 kits will run at their rated XMP speed when profiles are enabled in the UEFI. Maximum capacity is 32GB across two DIMM slots.

Does this board have an M.2 slot for NVMe SSDs?

The listed M.2 slot is a Key-E slot designated for a WiFi card, not an NVMe storage drive. Users requiring M.2 NVMe storage should verify the board's full specification sheet for additional Key-M slots — the product description does not list a Key-M M.2 slot, so NVMe SSD connectivity should be confirmed before purchasing.

What PCIe generation does the primary x16 slot run at, and which GPU tiers does that support?

The primary x16 slot is PCIe 4.0, providing 16 GT/s per lane and approximately 32 GB/s of total bidirectional bandwidth. This is sufficient for any current-generation discrete GPU — including high-end RTX 40-series and RX 7000-series cards — without bandwidth-induced performance loss.

Does the MicroATX form factor limit cooling options compared to ATX boards?

The B660M Pro RS fits standard MicroATX cases and is compatible with all LGA1700 tower air coolers and 240mm/360mm AIO liquid coolers, subject to case clearance. The form factor limits PCIe slot count and some DIMM configurations, but does not constrain CPU cooling compatibility.
