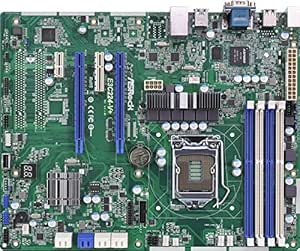

ASRock E3C224-V+ LGA 1150 DDR3 ATX Motherboard
★★★★★
12 inch9.6 inch
ASRock Motherboard ATX DDR3 1066 LGA 1150 E3C224-V+ The specifications for the ASRock Motherboard ATX DDR3 1066 LGA 1150 E3C224-V+ are not fully provided in the description.
Check availability
Affiliate Disclosure: Studio Supplies may earn a commission from qualifying purchases made through links on this page, at no additional cost to you. This helps support our editorial team.
Notice a mistake? Let Us Know
Overview
ASRock Motherboard ATX DDR3 1066 LGA 1150 E3C224-V+
The specifications for the ASRock Motherboard ATX DDR3 1066 LGA 1150 E3C224-V+ are not fully provided in the description.
Key Features
ATX 12 inch x 9.6 inch
Single socket H3 (LGA 1150)
Supports Intel Xeon processor E3-1200 v3 series & Has well i3 processors
4 x DIMM DDR3 1600/1333 ECC, max. 32GB
2 x PCIe 3.0 x16, 1 x PCIe 2.0 x4, 1 x PCIe 2.0 x1
4 x SATA3, 2 SATA2 by Intel C224 support RAID 0,1,5,10
Specifications
Form Factor
ATX
Dimensions
12 inch x 9.6 inch
Socket Type
LGA 1150
Supported Processors
Intel Xeon E3-1200 v3 series & Haswell i3 processors
Memory Slots
4 x DIMM
Memory Type
DDR3 ECC
Max Memory Capacity
32GB
Memory Speed
1600/1333 MHz
PCIe 3.0 x16 Slots
2
PCIe 2.0 x4 Slots
1
PCIe 2.0 x1 Slots
1
SATA3 Ports
4
SATA2 Ports
2
RAID Support
0, 1, 5, 10
Chipset
Intel C224
Pros & Cons
👍 Pros
- Supports both Intel Xeon E3-1200 v3 and Haswell i3 processors for versatile build options.
- Equipped with four DDR3 DIMM slots, allowing for a maximum of 32GB ECC memory at 1600/1333 MHz.
- Offers flexible expansion with two PCIe 3.0 x16 slots, one PCIe 2.0 x4, and one PCIe 2.0 x1 slot.
- Integrated Intel C224 chipset provides four SATA3 and two SATA2 ports with RAID 0,1,5,10 support.
- Its ATX form factor (12 inch x 9.6 inch) is compatible with a wide range of standard PC cases.
👎 Cons
- Limited to a single LGA 1150 socket, restricting options for dual-processor configurations.
- Supports a maximum of 32GB DDR3 ECC memory, which might be a limitation for some demanding server applications.
- Relies on the older DDR3 memory standard, rather than the newer, faster DDR4 technology.
- The integrated Intel C224 chipset for SATA may not offer the highest performance for extreme storage needs.
- Expansion slots include older PCIe 2.0 versions alongside PCIe 3.0, potentially limiting speeds for some peripherals.
Frequently Asked Questions
What processor types are compatible with the ASRock E3C224-V+ motherboard?
This motherboard supports Intel Xeon processor E3-1200 v3 series and Haswell i3 processors, offering options for both server and workstation builds.
What is the maximum amount of RAM this motherboard can support?
The ASRock E3C224-V+ motherboard can support a maximum of 32GB of DDR3 ECC memory across its four DIMM slots.
What type of RAID configurations does the Intel C224 chipset on this motherboard support?
The Intel C224 chipset integrated into this motherboard supports RAID 0, 1, 5, and 10 configurations for connected SATA drives.
Are there different generations of PCIe slots available on this motherboard?
Yes, the motherboard includes both PCIe 3.0 x16 slots for higher bandwidth devices and PCIe 2.0 x4 and x1 slots for other expansion cards.
What are the physical dimensions of this ASRock motherboard?
The ASRock E3C224-V+ motherboard follows the ATX form factor, with dimensions of 12 inches by 9.6 inches.
